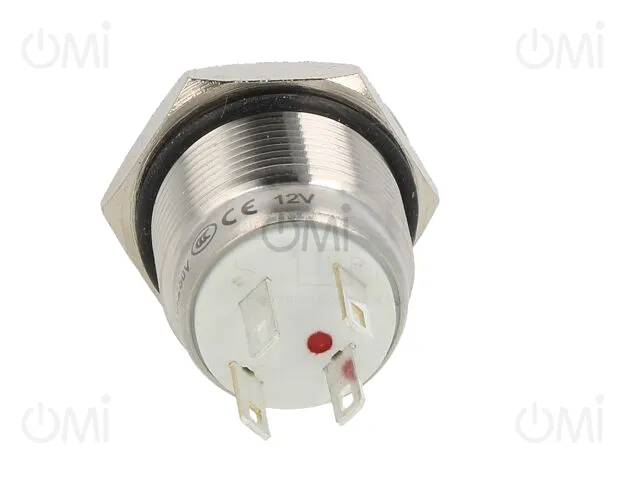

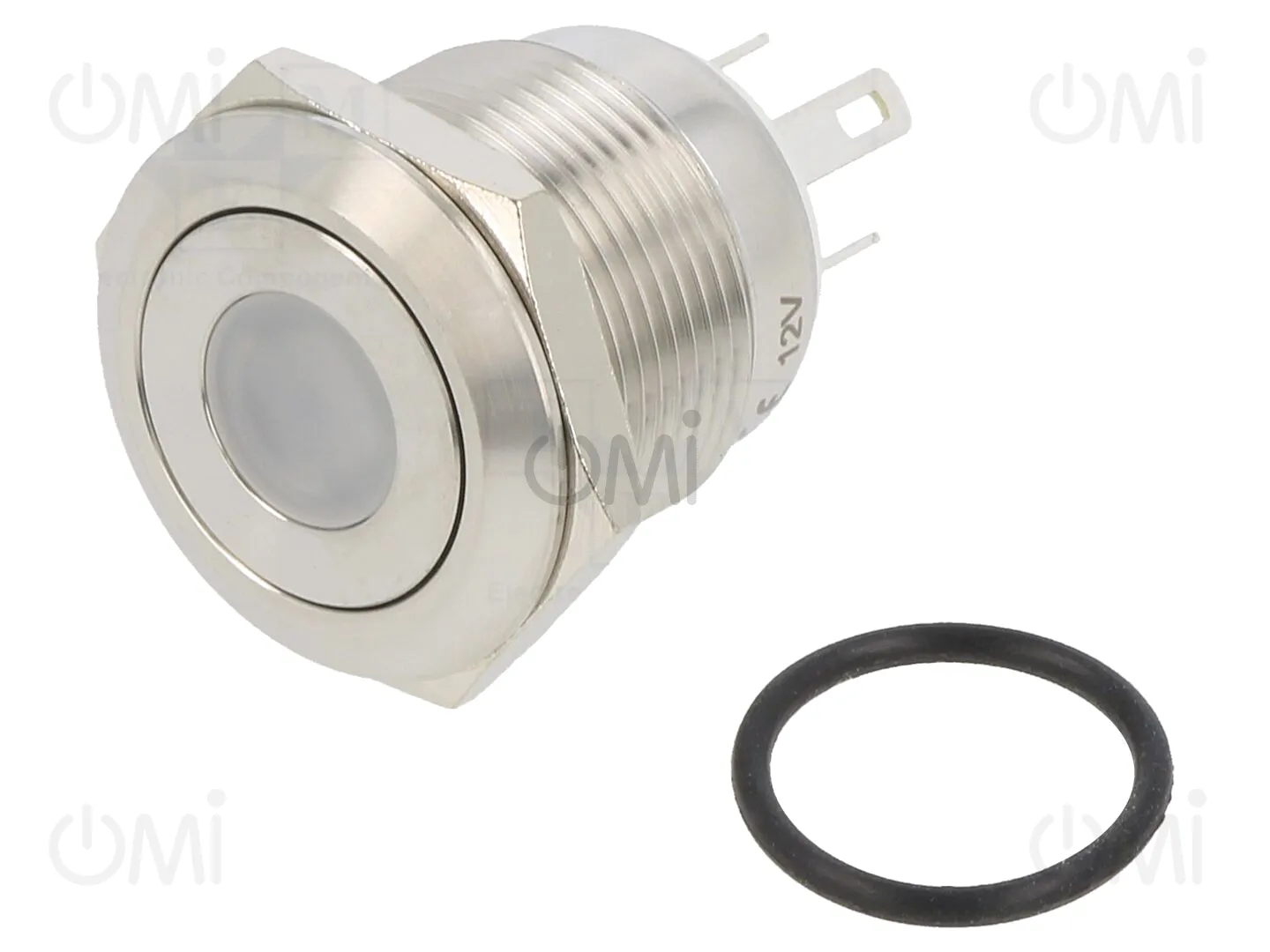

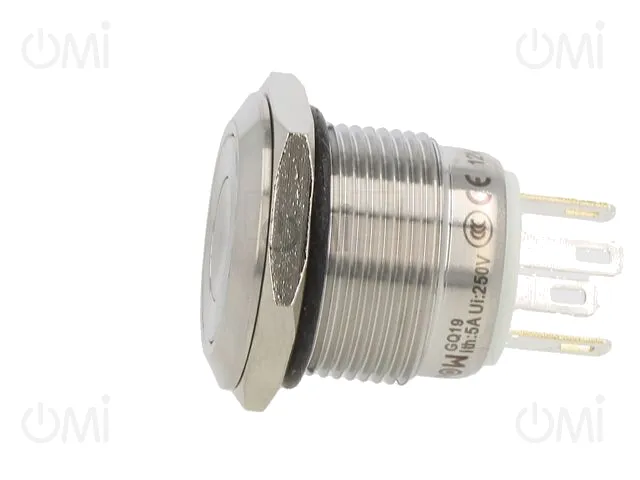

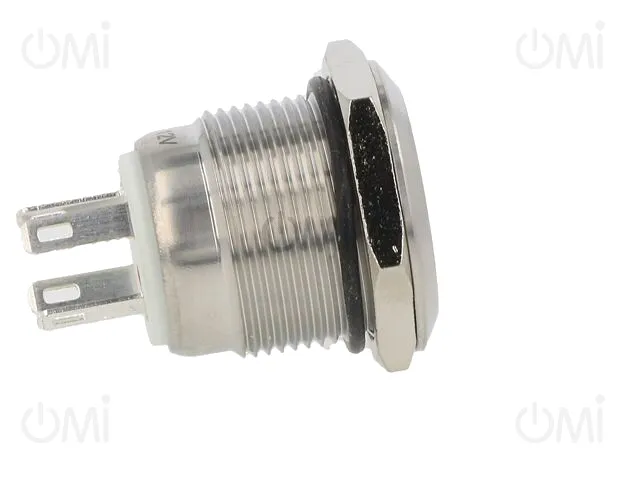

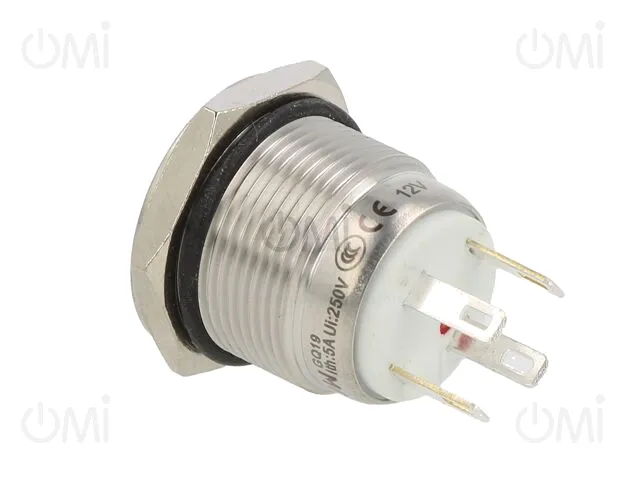

GQ19F-10D/J/R/12V/S ONPOW

Details

GQ19F-10D/J/R/12V/S
GQ19F-10D/J/R/12V/S
GQ19F-10D/J/R/12V/S
GQ19F-10D/J/R/12V/S
GQ19F-10D/J/R/12V/S
GQ19F-10D/J/R/12V/S
GQ19F-10D/J/R/12V/S
GQ19F-10D/J/R/12V/S
GQ19F-10D/J/R/12V/S
  • GQ19F-10D/J/R/12V/S
  • GQ19F-10D/J/R/12V/S
  • GQ19F-10D/J/R/12V/S
  • GQ19F-10D/J/R/12V/S
  • GQ19F-10D/J/R/12V/S
  • GQ19F-10D/J/R/12V/S
  • GQ19F-10D/J/R/12V/S
  • GQ19F-10D/J/R/12V/S
  • GQ19F-10D/J/R/12V/S

Manufacturer product page ONPOW

Switch: vandal resistant; Pos: 2; SPST-NO; 0.5A/220VAC; 2A/36VDC

Manufacturer code: GQ19F-10D/J/R/12V/S

OMI code: 22355

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

4 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 10.83
3+ 7.22
6+ 6.83

Price details
GQ19F-10D/J/R/12V/S

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 10.83
3+ 7.22
6+ 6.83

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
ONPOW
Type of switch
vandal resistant
Operating temperature
-25...55°C
IP rating
IP65
Leads
connectors 2,8x0,5mm
Manufacturer series
GQ19
Contacts configuration
SPST-NO
Body material
stainless steel
Switching method
OFF-(ON)
Mechanical durability
1000000 cycles
Electrical life
200000 cycles
Contact material
silver alloy
Body colour
silver
Mounting hole diameter
Ø19mm
AC contacts rating @R
0.5A / 220V AC
Number of positions
2
DC contacts rating @R
2A / 36V DC
Actuator colour
silver
Illumination
LED, point
Max. contact resistance:
50mΩ
Backlight colour
red
Min. insulation resistance
1GΩ
Button shape
flat
Stable positions number
1
Operating Force
4N
Illumination voltage
12V
Ring shape
rounded
Test voltage
2kV
Gross weight 17.49 g
Documentation in English #1
