MS420 EXTECH

Details

MS420
  • MS420

Manufacturer product page EXTECH

Handheld oscilloscope; 20MHz; colour,LCD 3,8"; Ch: 2; 100Msps

Manufacturer code: MS420

OMI code: 22440

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

1 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 1184.65

Price details
MS420

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 1184.65

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
EXTECH
Related items
PWRCORD-MS420
Dimensions
180x113x40mm
Interface
USB
Number of channels
2
Kind of display used
colour, LCD 3,8"
Power supply
rechargeable battery Li-Ion x1
Additional functions
multimeter
Standard equipment

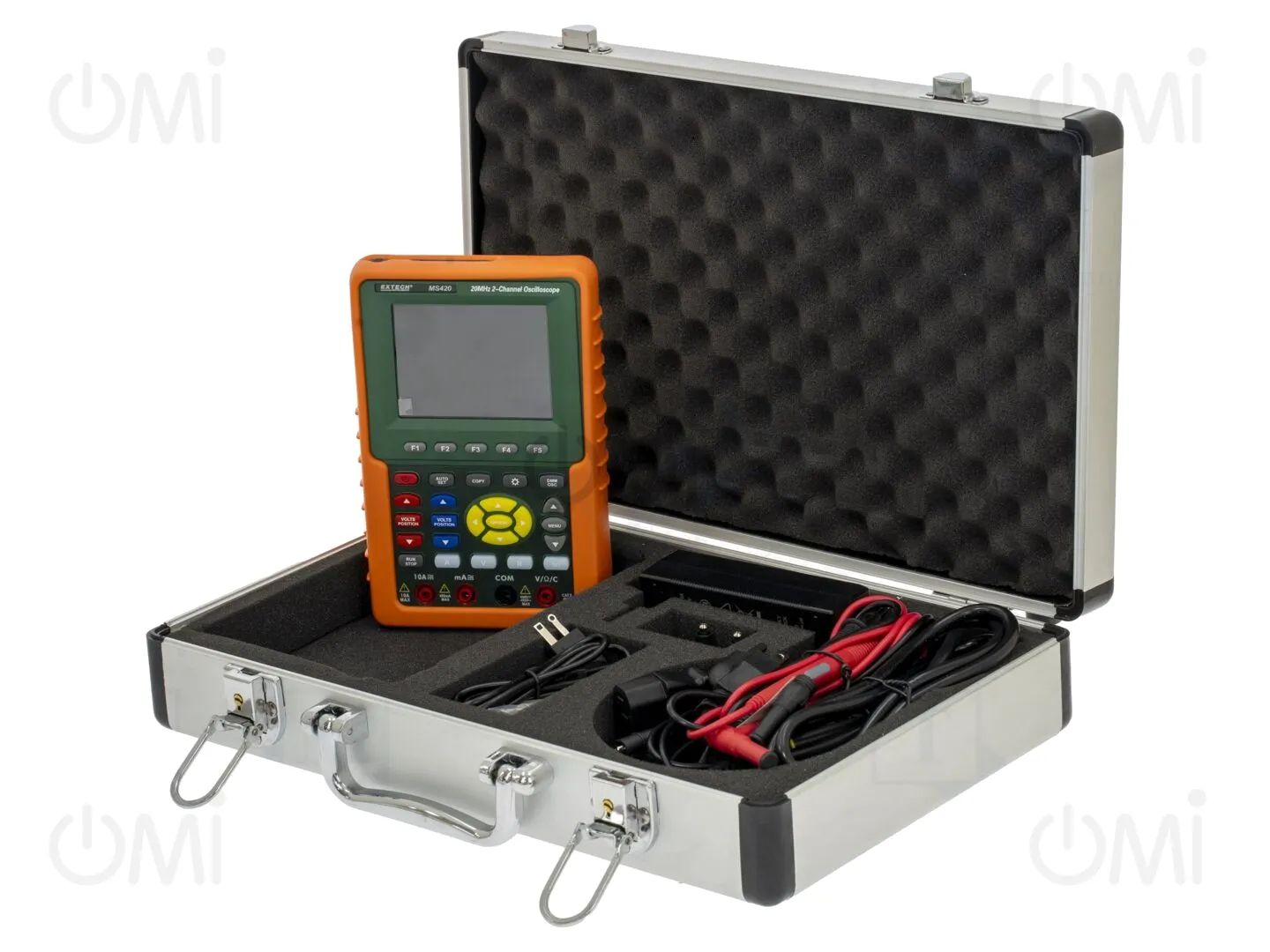

hard case, test leads, oscilloscope probe (1 per channel), battery charger/power supply, trimmer tool
Measuring instrument features
mathematical functions: addition, subtraction, division, multiplication and FFT, X-Y operation mode
Input impedance
1MΩ/20pF
Measurement
AC current, DC current, DC voltage, resistance, AC voltage, capacitance, continuity, automatic
Battery/ rechargeable battery
rechargeable battery Li-Ion x1
Test
diodes
Sampling
100Msps
Band
20MHz
Resistance measuring range
40kΩ, 4kΩ, 400kΩ, 40MΩ, 0.4kΩ
DC voltage measuring range
400V, 4V, 40V, 400mV, 40mV
AC voltage measuring range
400V, 4V, 40V, 400mV
Capacitance measuring range
51.2nF...100µF
Trigger
rising-edge, falling-edge, video signal
Type of oscilloscope
handheld oscilloscope
Input coupling
AC, DC
Vertical resolution
8bit
Trigger modes
single-shot
Trigger coupling
AC, DC
Max. input voltage
400V
Rise time
17.5ns
Time base
5n...5s/div
Memory record length
6kpts/ch
Trigger source
CH1, CH2
Gross weight 2766.40 g
Documentation in English #1 Documentation in English #2

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Portable Oscilloscopes, Scopemeters
