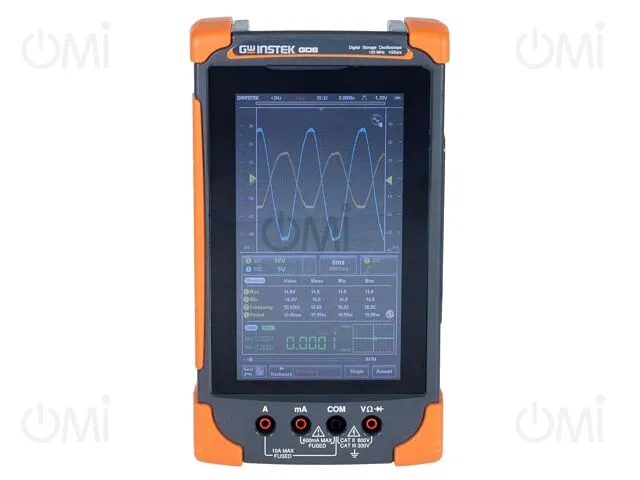

GDS-310 GW INSTEK

Details

GDS-310
  • GDS-310

Manufacturer product page GW INSTEK

Handheld oscilloscope; 100MHz; LCD; Ch: 2; 1Gsps (in real time)

Manufacturer code: GDS-310

OMI code: 225342

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

1 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 1873.07

Price details
GDS-310

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 1873.07

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
GW INSTEK
Supply voltage
100...240V AC
Dimensions
240x136x60mm
Number of channels
2
Kind of display used
LCD
Measuring instrument features
MIN/MAX function, HOLD function
Input impedance
1MΩ
Display resolution
480x800
Measurement
AC current, DC current, DC voltage, resistance, AC voltage
AC current measuring range
50mA, 0.5A, 10A
Screen size
7"
Plug variant
EU
Touchpad
yes
Sampling
1Gsps (in real time)
Band
100MHz
Resistance measuring range
5kΩ, 50kΩ, 500kΩ, 5MΩ, 500Ω
DC current measuring range
50mA, 500mA, 10A
DC voltage measuring range
1kV, 50V, 500V, 500mV, 5V, 50mV
AC voltage measuring range
50V, 500mV, 5V, 700V, 50mV
AC current measuring accuracy
±(1.5% + 15 digit)@50mA, ±(1.5% + 15 digit)@500mA, ±(3% + 15 digit)@10A
AC voltage measuring accuracy
±(1.5% + 15 digit)
Resistance measuring accuracy
±(0.3%+3 digit)@(500Ω), ±(0.3%+3 digit)@(5kΩ), ±(0.3%+3 digit)@(50kΩ), ±(0.3%+3 digit)@(500kΩ), ±(0.5%+5 digit)@(5MΩ)
Type of oscilloscope
handheld oscilloscope
Max. input voltage
300V
Rise time
≤3.5ns
Input sensitivity
2mV/div
Time base
5n...100s/div
Memory record length
5Mpts/ch
Gross weight 2888.00 g
Documentation in English #1 Documentation in English #2 Documentation in English #3

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Portable Oscilloscopes, Scopemeters
