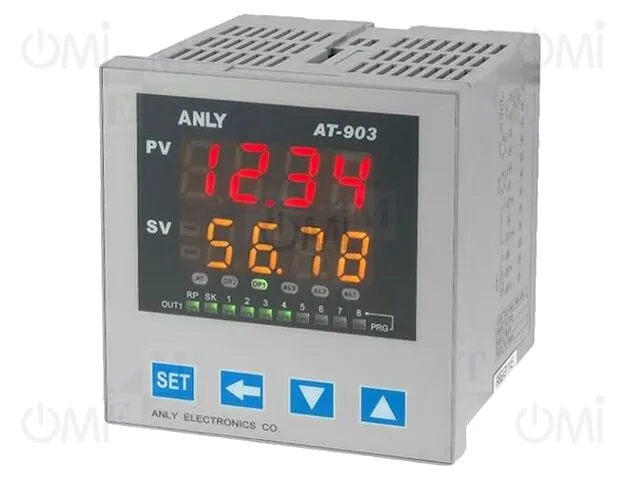

AT-903-1161-000 ANLY ELECTRONICS

Details

AT-903-1161-000
  • AT-903-1161-000

Manufacturer product page ANLY ELECTRONICS

Module: regulator; temperature; SPST-NO; OUT 2: 0÷10V; on panel

Manufacturer code: AT-903-1161-000

OMI code: 225591

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

44 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 83.03

Price details
AT-903-1161-000

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 83.03

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
ANLY ELECTRONICS
Mounting
on panel
Operating temperature
-10...50°C
IP rating
IP20
Manufacturer series
AT903
Supply voltage
90...260V AC
Body dimensions
96x96x83mm
Mounting hole diameter
91x91mm
Type of module
regulator
Kind of display used
LED x2
Kind of output 1
SPST-NO
The programming method
foil keypad
Additional functions
LED status indicator, heating or cooling control, led bar, non-volatile EEPROM memory, scroll menu
Controlled parameter
temperature
Kind of temperature sensor
JPt100, Pt100, thermocouple B, thermocouple E, thermocouple J, thermocouple K, thermocouple N, thermocouple R, thermocouple S, thermocouple T
Regulation for output 1
ON-OFF, P, PI, PID, AUTOTUNING, DEAD BAND
Display parameters
4-digit
Output 1 electrical parameters
240V AC / 3A
Controlled parameter range
-1999...9999
Input 1 properties
RTD, thermocouple
Display height 1
14mm
Display 2 height
13mm
Kind of output 2
0...10V
Kind of output 3
SPST-NO
Output 3 electrical parameters
240V AC / 3A
Gross weight 388.50 g
Documentation in English #1 Documentation in English #2

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Temperature Regulators

* All prices are net prices (excluding VAT) and do not include transportation costs, which will be included in the order amount. Transportation costs are available in the tab "Method and cost of delivery"

Last viewed items

83523011

83523011

Manufacturer: CROUZET

Limit switch; SPDT; 10A; max.250VAC; IP40 (from the front); 32mm

In stock:

0 pcs

Price details
83523011

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 148.02
5+ 145.23

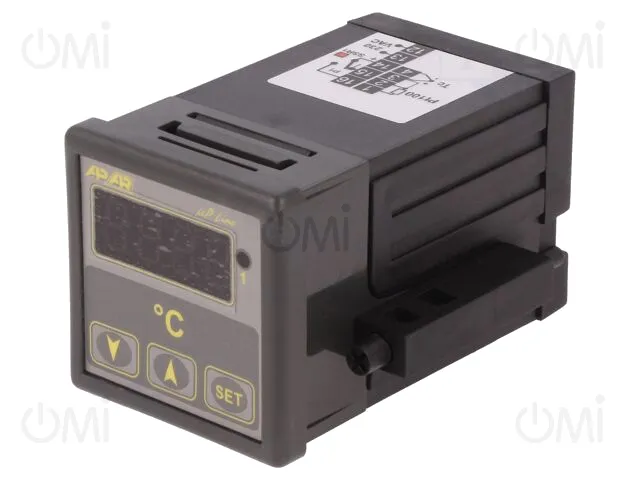

AR601/S

AR601/S

Manufacturer: APAR

Module: regulator; temperature; SSR; on panel; OUT 1: 12VDC; 0÷50°C

In stock:

1 pcs

Price details
AR601/S

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 91.24
5+ 88.44
2842/7 BR001

2842/7 BR001

Manufacturer: ALPHA WIRE

Wire; HookUp Wire; stranded; Cu; 28AWG; PTFE; brown; 250V; 305m

In stock:

0 rol

Price details
2842/7 BR001

Qty.
[rol] 		Price
[EUR/rol]
1+ 263.06
XCKJ110541H29

XCKJ110541H29

Manufacturer: TELEMECANIQUE SENSORS

Limit switch; NO + NC; 10A; max.250VAC; max.250VDC; M20; IP66

In stock:

0 pcs

Price details
XCKJ110541H29

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 116.99
10+ 114.58
AT-903-1161-000

AT-903-1161-000

Manufacturer: ANLY ELECTRONICS

Module: regulator; temperature; SPST-NO; OUT 2: 0÷10V; on panel

In stock:

44 pcs

Price details
AT-903-1161-000

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 83.03

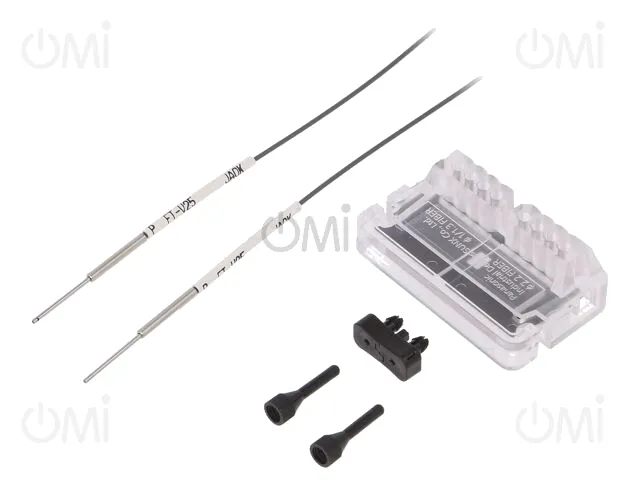

FT-V25
