FTR-B3GA024Z FUJITSU

Details

FTR-B3GA024Z
  • FTR-B3GA024Z

Manufacturer product page FUJITSU

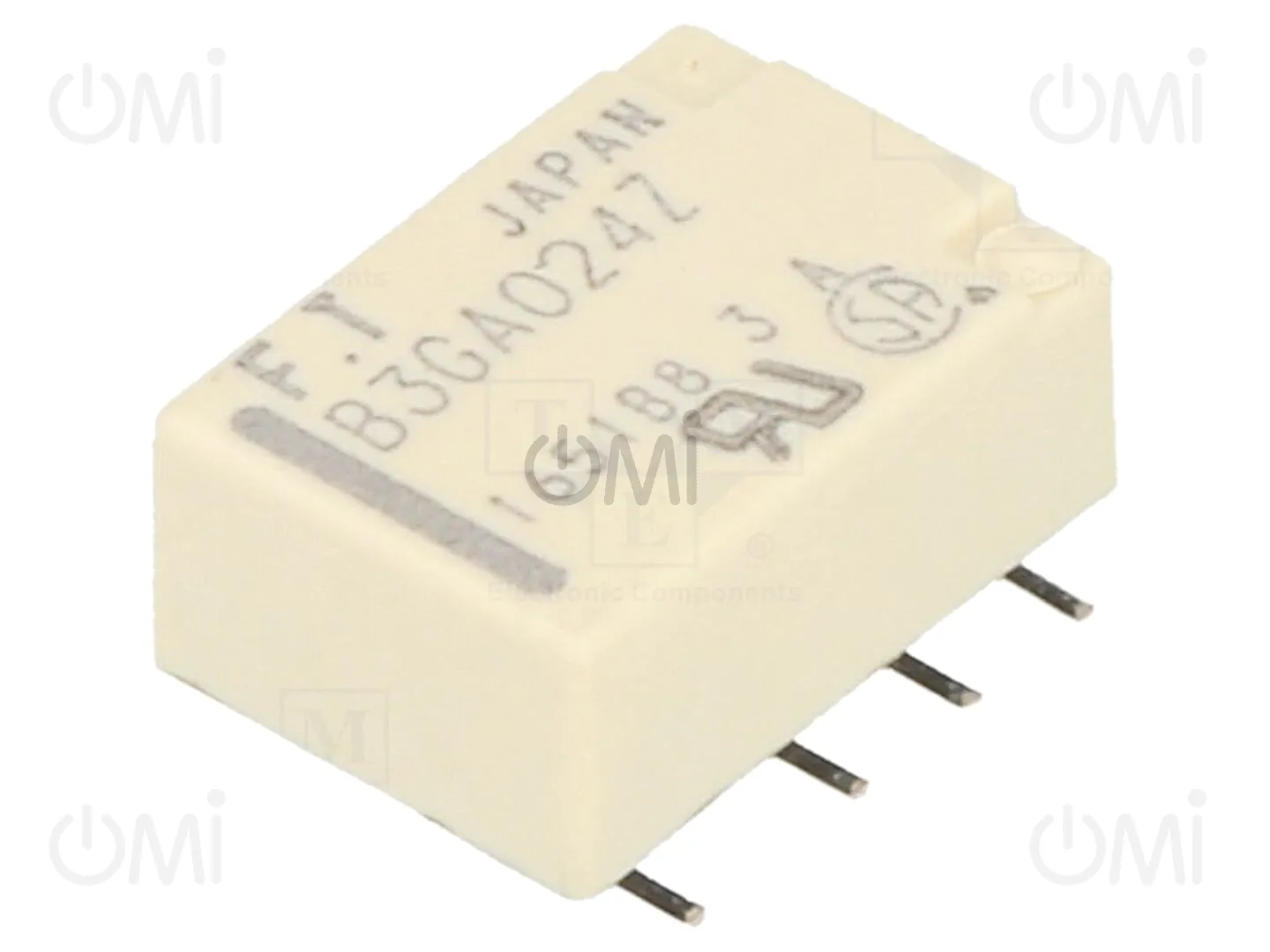

Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; 0.3A/125VAC; SMT

Manufacturer code: FTR-B3GA024Z

OMI code: 2261

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 2.22
5+ 2.01
11+ 1.49
26+ 1.41

Price details
FTR-B3GA024Z

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 2.22
5+ 2.01
11+ 1.49
26+ 1.41

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
FUJITSU
Mounting
SMT
Operating temperature
-40...85°C
Contacts configuration
DPDT
Body dimensions
10.6x7.2x5.45mm
Contact material
AgNi + Au
Switched voltage
max. 250V AC, max. 220V DC
AC contacts rating @R
0.3A / 125V AC
DC contacts rating @R
1A / 30V DC
Terminal pitch
2.2mm
Type of relay
electromagnetic
Contact current max.
2A
Relay variant
signal, subminiature
Relay series
FTR-B3
Coil resistance
2504Ω
Rated coil voltage
24V DC
Contact resistance
75mΩ
Coil power consumption
230mW
Gross weight 0.79 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Miniature Electromagnetic Relays
