9-1419111-3 TE Connectivity

Details

9-1419111-3
9-1419111-3
9-1419111-3
9-1419111-3
9-1419111-3
9-1419111-3
9-1419111-3
9-1419111-3
9-1419111-3
  • 9-1419111-3
  • 9-1419111-3
  • 9-1419111-3
  • 9-1419111-3
  • 9-1419111-3
  • 9-1419111-3
  • 9-1419111-3
  • 9-1419111-3
  • 9-1419111-3

Manufacturer product page TE Connectivity

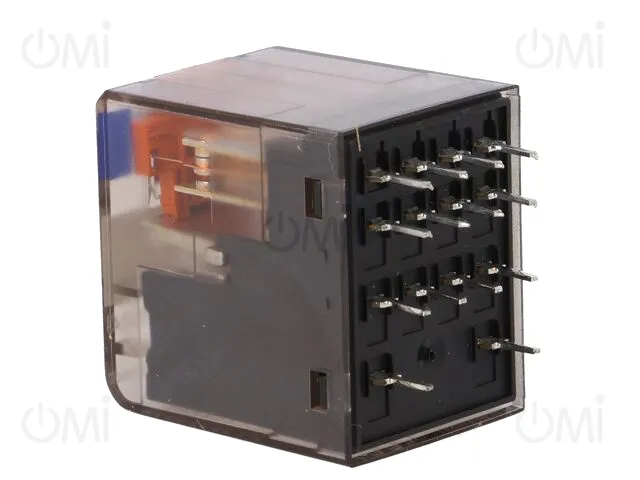

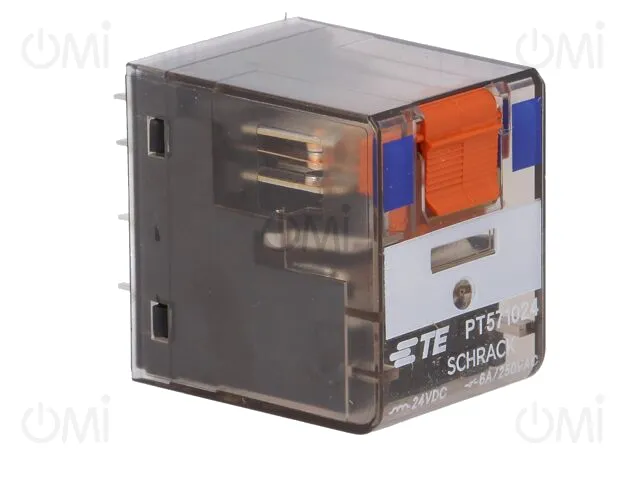

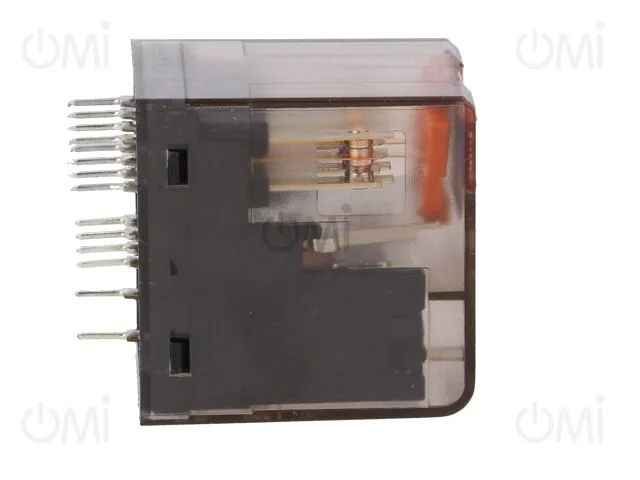

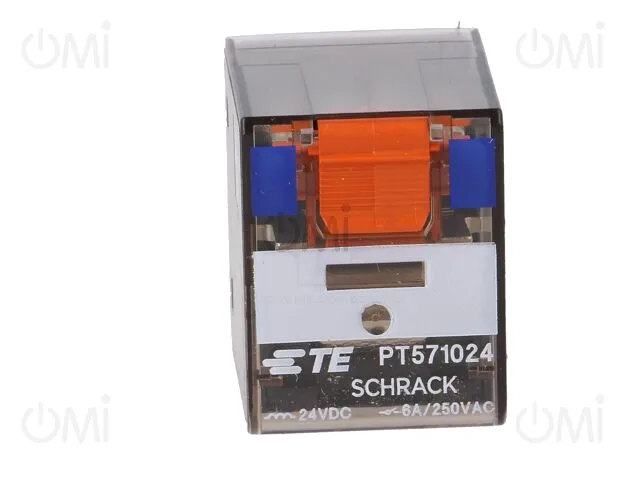

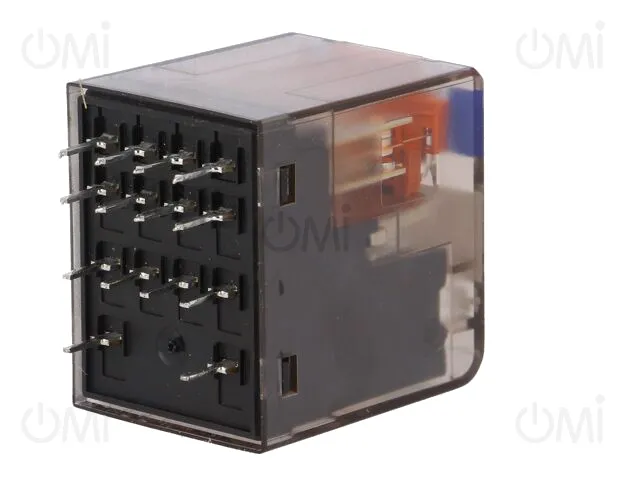

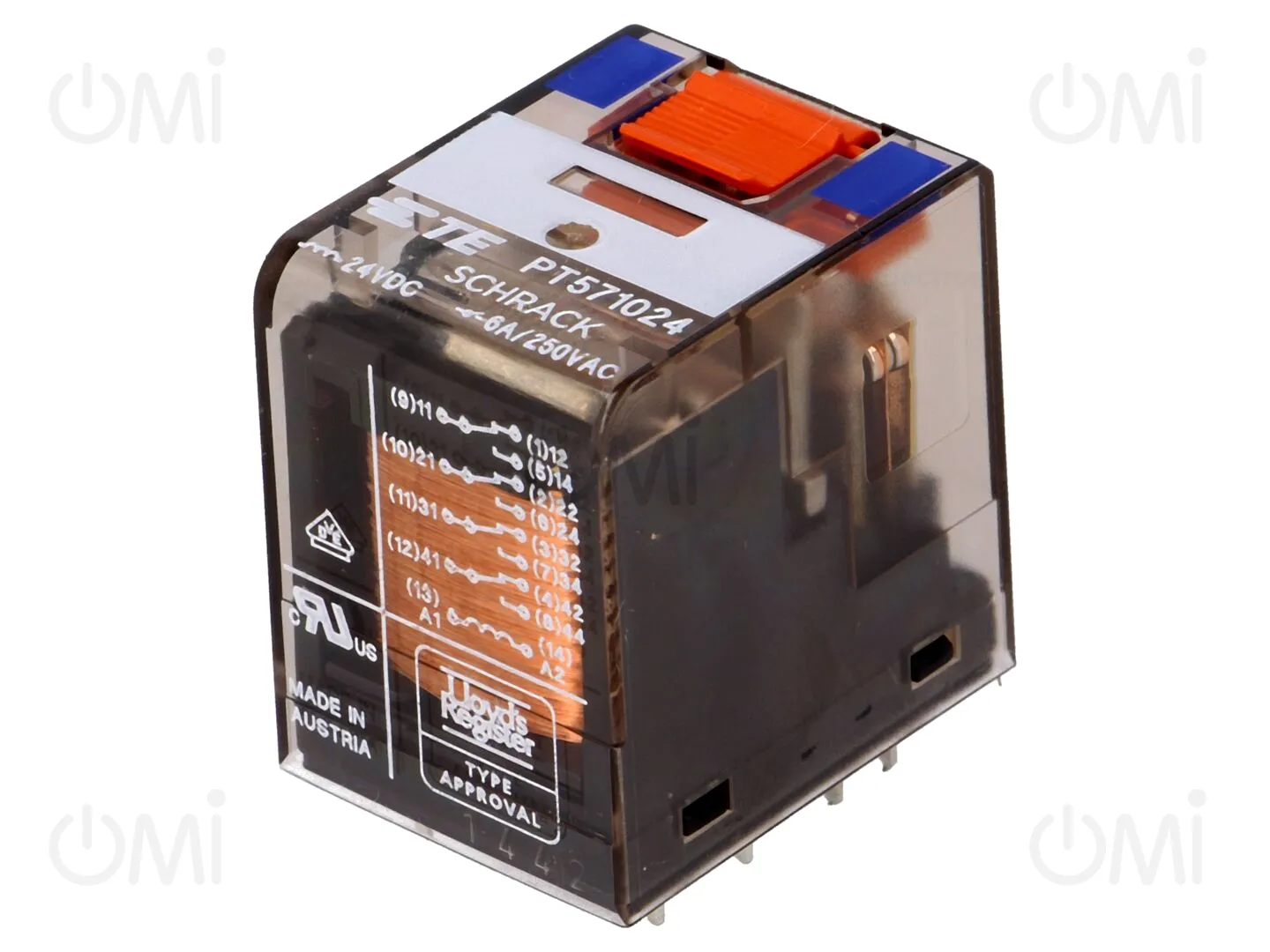

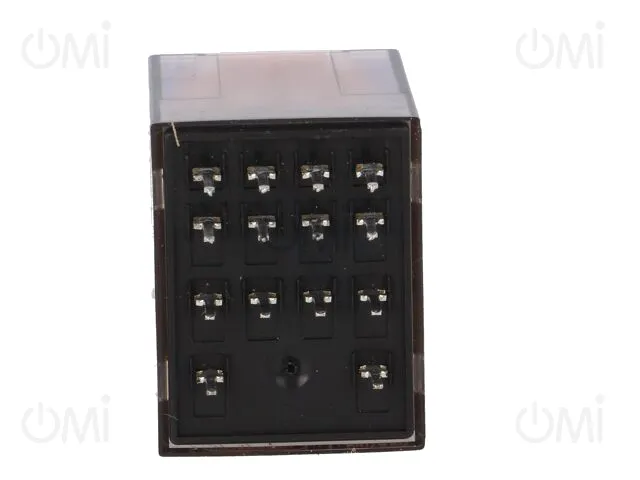

Relay: electromagnetic; 4PDT; Ucoil: 24VDC; Icontacts max: 6A; PCB

Manufacturer code: 9-1419111-3

OMI code: 236086

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

74 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 10.53
3+ 7.29
5+ 6.9

Price details
9-1419111-3

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 10.53
3+ 7.29
5+ 6.9

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
TE Connectivity
Mounting
PCB
Operating temperature
-40...70°C
Leads
for PCB
Related items
PT78740
Contacts configuration
4PDT
Body dimensions
28x22.5x30mm
Contact material
AgNi
Switched voltage
max. 250V AC, max. 300V DC
AC contacts rating @R
6A / 250V AC
DC contacts rating @R
6A / 30V DC
Type of relay
electromagnetic
Contact current max.
6A
Relay variant
industrial
Relay series
PT
Coil resistance
777Ω
Rated coil voltage
24V DC
Coil power consumption
0.75W
Optional equipment
test button with blocking function
Gross weight 27.45 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Industrial Electromagnetic Relays
