HS50 82R J ARCOL

Details

HS50 82R J
  • HS50 82R J

Manufacturer product page ARCOL

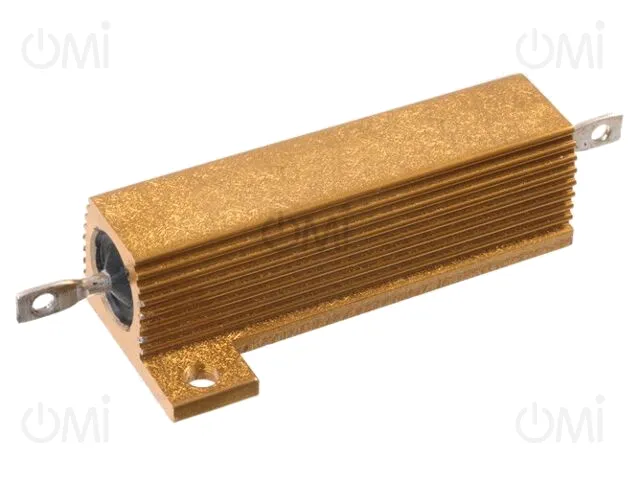

Resistor: wire-wound; with heatsink; screw; 82Ω; 50W; ±5%

Manufacturer code: HS50 82R J

OMI code: 2438

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

303 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 5.51
3+ 5.04
5+ 4.67
7+ 2.68

Price details
HS50 82R J

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 5.51
3+ 5.04
5+ 4.67
7+ 2.68

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
ARCOL
Mounting
screw
Power
50W
Leads
for soldering
Body dimensions
49.1x29.7x14.8mm
Type of resistor
wire-wound
Tolerance
±5%
Resistance
82Ω
Max. operating voltage
1.25kV
Kind of resistor
with heatsink
Mounting holes pitch
39.7x21.4mm
Temperature coefficient
100ppm/°C
Resistor features
needs additional heatsink
Power without heatsink
14W
Gross weight 23.36 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Power resistors

* All prices are net prices (excluding VAT) and do not include transportation costs, which will be included in the order amount. Transportation costs are available in the tab "Method and cost of delivery"

Last viewed items

HS50 82R J

HS50 82R J

Manufacturer: ARCOL

Resistor: wire-wound; with heatsink; screw; 82Ω; 50W; ±5%

In stock:

303 pcs

Price details
HS50 82R J

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 5.51
3+ 5.04
5+ 4.67
7+ 2.68
64226

64226

Manufacturer: HELUKABEL

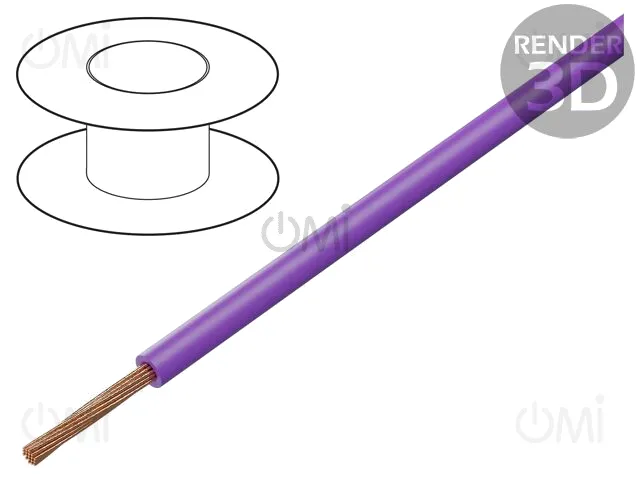

Wire; H07V2-K; stranded; Cu; 25mm2; 4AWG; PVC; violet; 450V,750V
