3-1625984-0 TE Connectivity

Details

3-1625984-0
  • 3-1625984-0

Manufacturer product page TE Connectivity

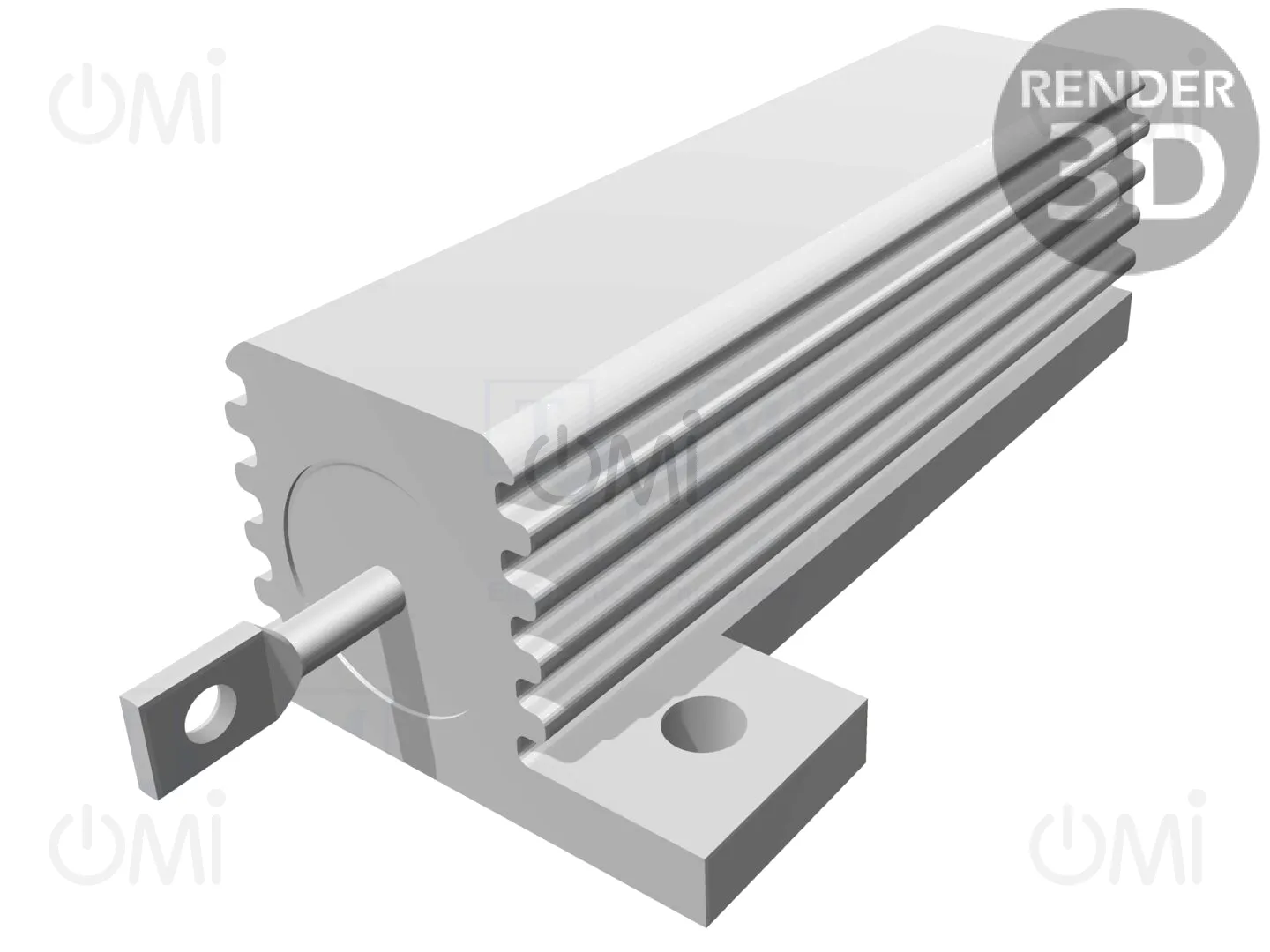

Resistor: wire-wound; with heatsink; screw; 220Ω; 50W; ±5%

Manufacturer code: 3-1625984-0

OMI code: 24412

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

229 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 10.06
4+ 5.76
8+ 5.44
500+ 5.36

Price details
3-1625984-0

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 10.06
4+ 5.76
8+ 5.44
500+ 5.36

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
TE Connectivity
Mounting
screw
Power
50W
Leads
for soldering
Body dimensions
51x30x17mm
Type of resistor
wire-wound
Tolerance
±5%
Resistance
220Ω
Max. operating voltage
1.25kV
Kind of resistor
with heatsink
Mounting holes pitch
21.4x39.7mm
Temperature coefficient
30ppm/°C
Resistor features
needs additional heatsink, robust mechanical structure
Power without heatsink
20W
Gross weight 31.11 g
Documentation in English #1
