3549S-1AA-103B BOURNS

Details

3549S-1AA-103B
3549S-1AA-103B
3549S-1AA-103B
3549S-1AA-103B
3549S-1AA-103B
3549S-1AA-103B
3549S-1AA-103B
3549S-1AA-103B
3549S-1AA-103B
  • 3549S-1AA-103B
  • 3549S-1AA-103B
  • 3549S-1AA-103B
  • 3549S-1AA-103B
  • 3549S-1AA-103B
  • 3549S-1AA-103B
  • 3549S-1AA-103B
  • 3549S-1AA-103B
  • 3549S-1AA-103B

Manufacturer product page BOURNS

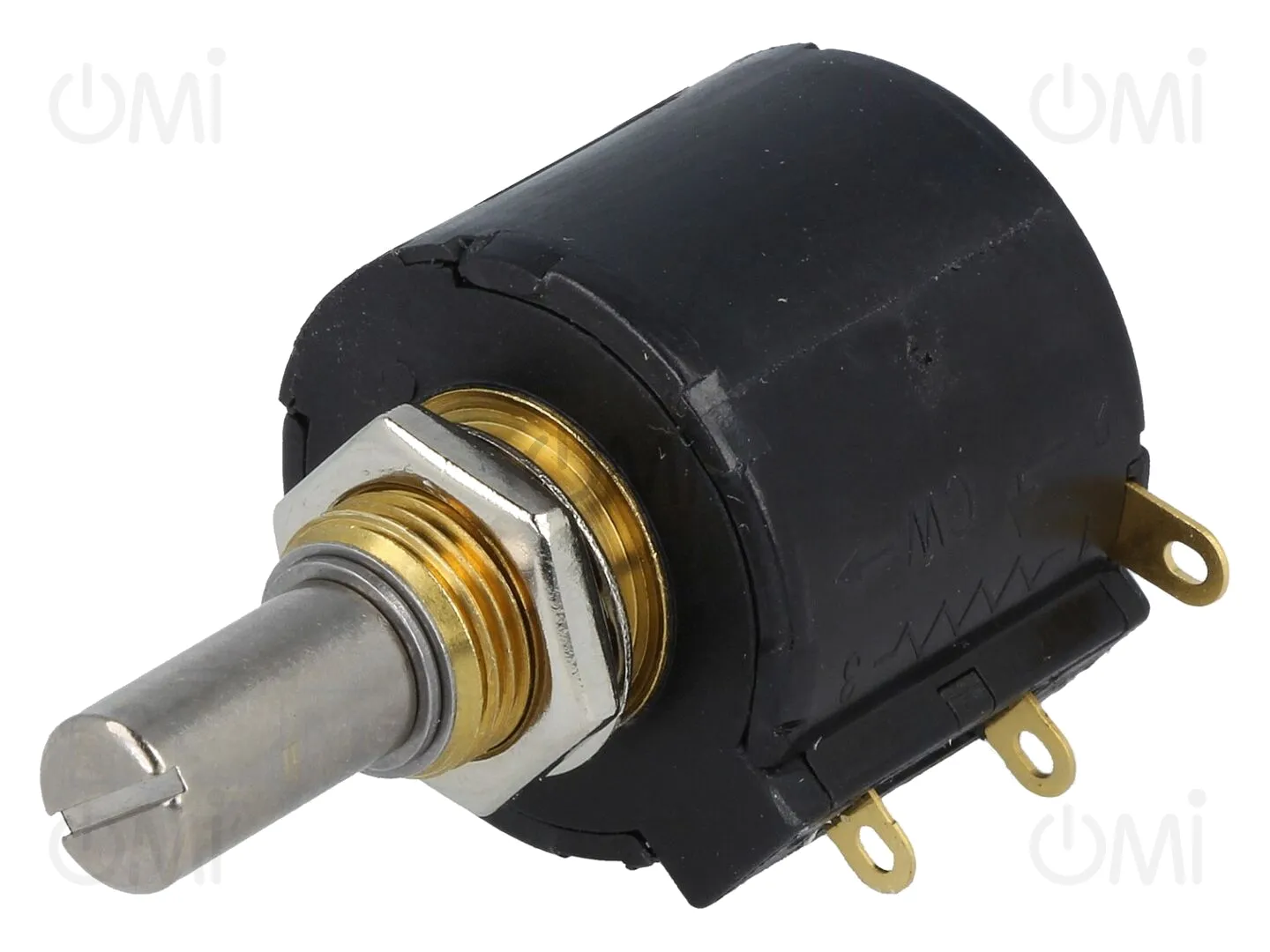

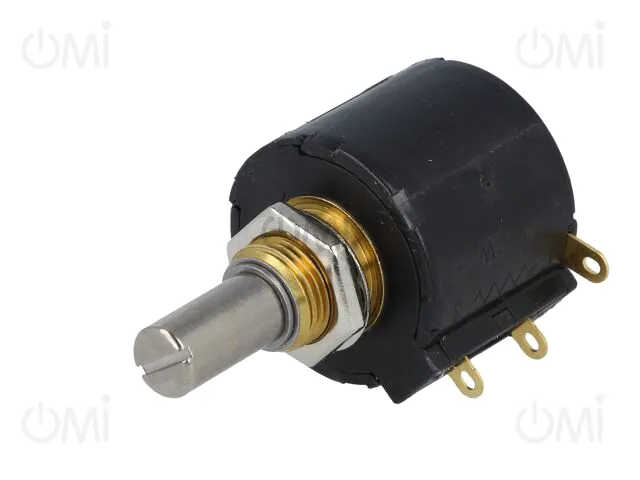

Potentiometer: shaft; multiturn; 10kΩ; 2W; ±3%; 6.35mm; linear; IP50

Manufacturer code: 3549S-1AA-103B

OMI code: 245285

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

17 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 28.75
2+ 27.22
50+ 26.82

Price details
3549S-1AA-103B

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 28.75
2+ 27.22
50+ 26.82

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
BOURNS
Operating temperature
-40...125°C
IP rating
IP50
Power
2W
Body dimensions
Ø22.5x19.8mm
Tolerance
±3%
Mechanical durability
2000000 cycles
Resistance
10kΩ
Thread length
7.92mm
Type of potentiometer
shaft
Characteristics
linear
Temperature coefficient
50ppm/°C
Min. insulation resistance
1GΩ
Track material
wirewound
Kind of potentiometer
multiturn
Shaft diameter
6.35mm
Shaft length
12.7mm
Linearity tolerance
±0.1%
Shaft surface
smooth
Potentiometer features
precise
L shaft length
20.62mm
Number of electrical turns
10
Shaft material
metal
Gross weight 22.40 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Wire multiturn potentiometers
