5854 GR005 ALPHA WIRE

Details

5854 GR005
  • 5854 GR005

Manufacturer product page ALPHA WIRE

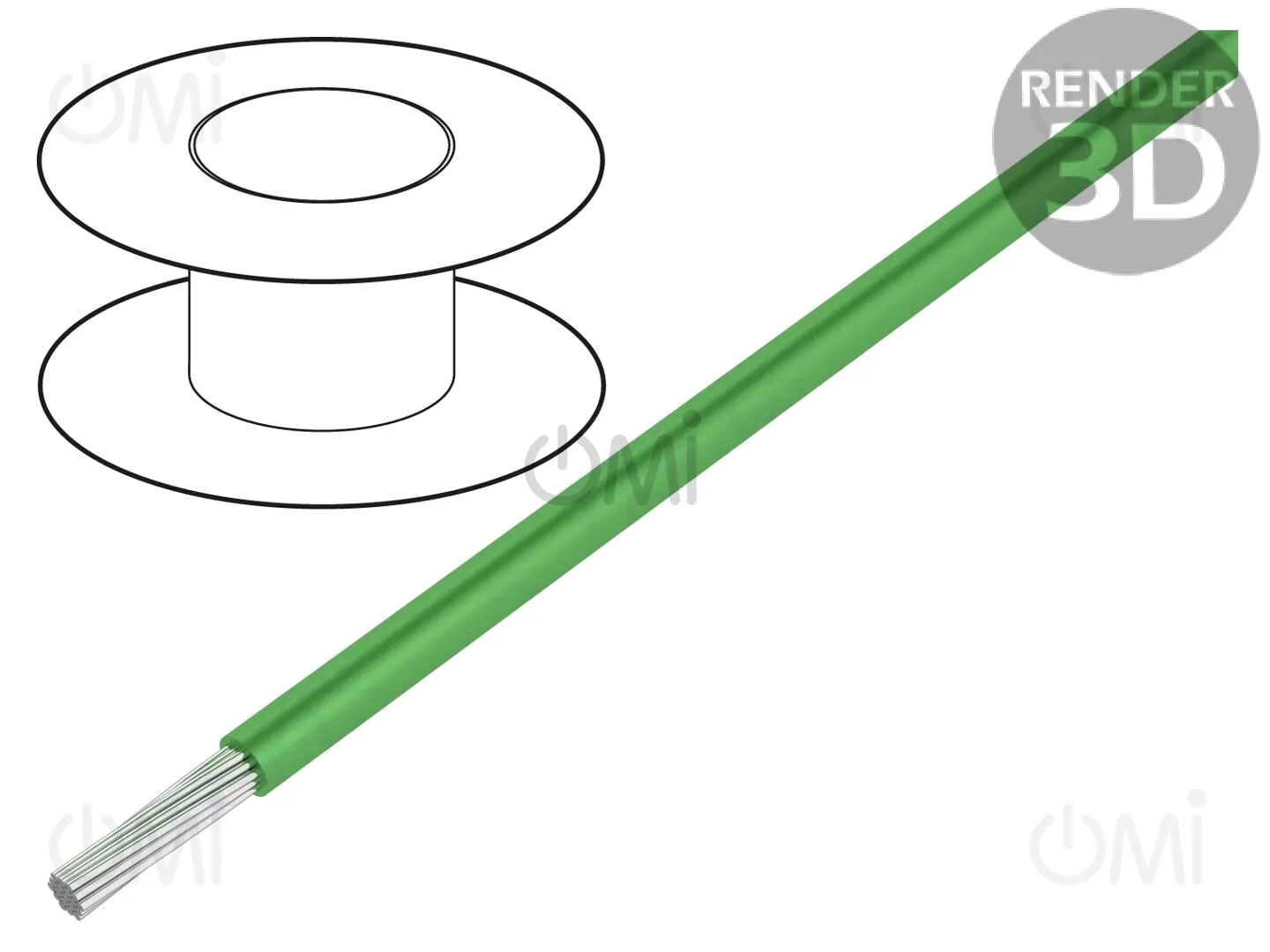

Wire; HookUp Wire; stranded; Cu; 24AWG; PTFE; green; 600V; 30.5m

Manufacturer code: 5854 GR005

OMI code: 246857

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

1 rol

Qty.
[rol] 		Price
[EUR/rol]
1+ 52.19
10+ 50.34

Price details
5854 GR005

Qty.
[rol] 		Price
[EUR/rol]
1+ 52.19
10+ 50.34

Quantity rol (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
ALPHA WIRE
Operating temperature
-60...200°C
Conform to the norm
VW-1, NEMA HP3, MIL-W-16878/4 (Type E), UL 1213
Wire insulation material
PTFE
Type of wire
assembly
Number of cores
1
Insulation colour
green
Kind of wire
HookUp Wire
Kind of core
Cu, silver plated
Cable external diameter
1.12mm
Rated voltage
600V
Package contents
30.5m
Core diameter
24AWG
Core structure
stranded
CPR standard
no classification
Package contents - ft
100ft
Minimal wire bend radius
10xØ
Gross weight 129.30 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Single Core Cable - Strand

* All prices are net prices (excluding VAT) and do not include transportation costs, which will be included in the order amount. Transportation costs are available in the tab "Method and cost of delivery"

Last viewed items

2841/1 GR005

2841/1 GR005

Manufacturer: ALPHA WIRE

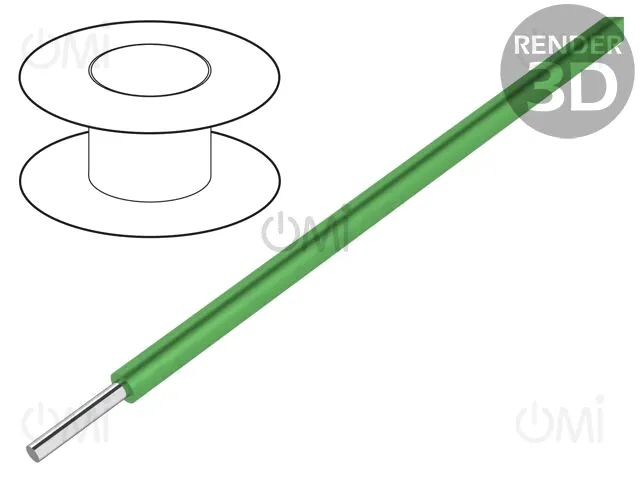

Wire; HookUp Wire; 30AWG; solid; Cu; PTFE; green; 250V; 30.5m; 100ft
