3570.1429.122 COMUS

Details

3570.1429.122
  • 3570.1429.122

Manufacturer product page COMUS

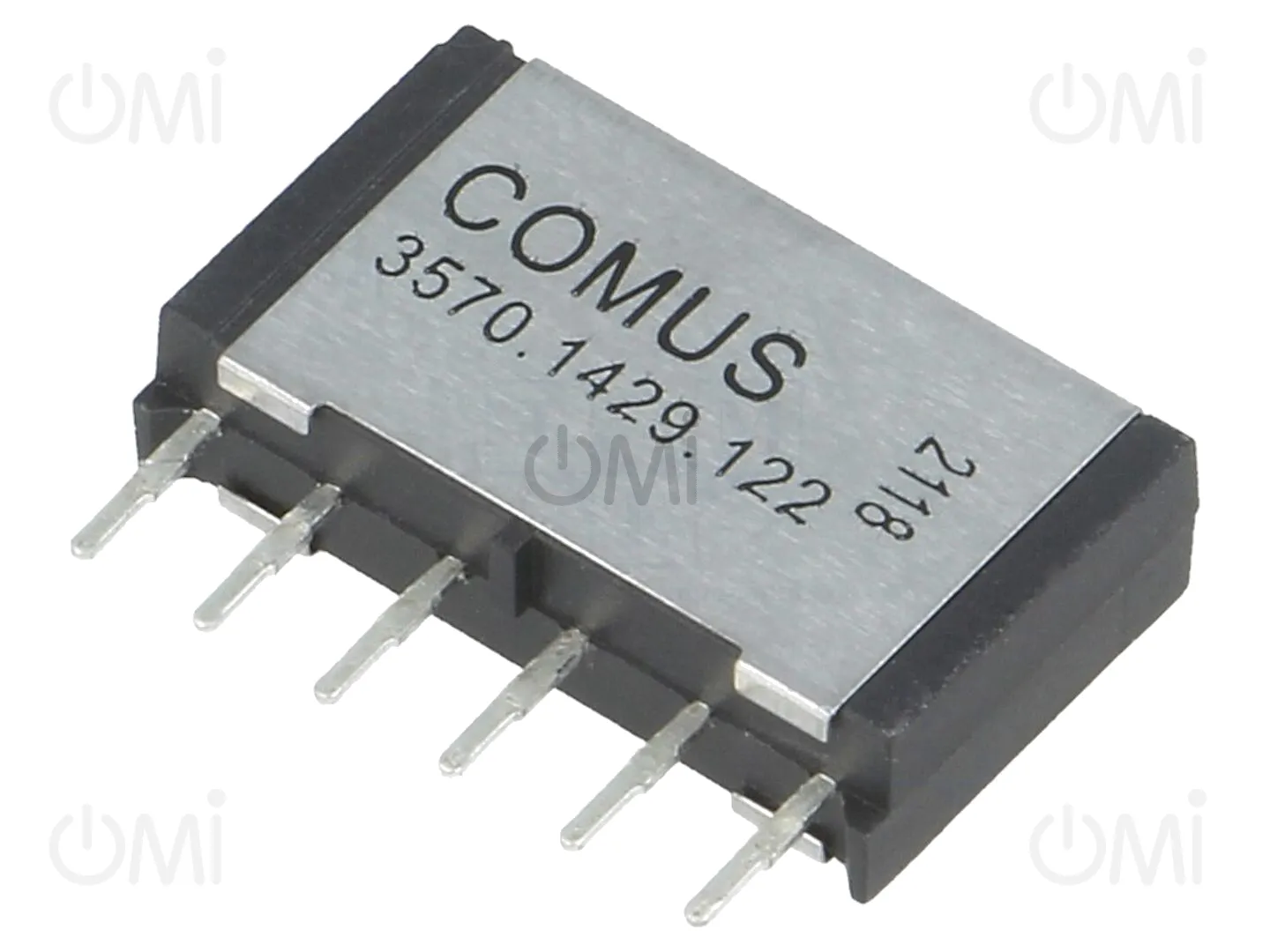

Relay: reed switch; DPST-NO; Ucoil: 12VDC; 1A; max.200VDC; 15W; THT

Manufacturer code: 3570.1429.122

OMI code: 247848

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

23 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 4.41
4+ 4.11
9+ 3.89

Price details
3570.1429.122

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 4.41
4+ 4.11
9+ 3.89

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
COMUS
Mounting
THT
Operating temperature
-40...85°C
Case
SIP
Contacts configuration
DPST-NO
Body dimensions
15.2x8.89x3.81mm
Switched voltage
max. 200V DC
Terminal pitch
2.54mm
Type of relay
reed switch
Contact current max.
1A
Relay series
3570
Coil resistance
750Ω
Switching capacity
15W
Rated coil voltage
12V DC
Relay features
high reliability
Coil voltage min.
9V DC
Contact resistance
0.15Ω
Coil voltage max.
16V DC
Optional equipment
electrostatic shield
Gross weight 1.24 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Reed Electromagnetic Relays
