WMPLMPI540PVSIRM1 SONEL

Details

WMPLMPI540PVSIRM1
  • WMPLMPI540PVSIRM1

Manufacturer product page SONEL

Measuring kit: Sonel kit; LCD TFT 7"; Resolution: 800x480

Manufacturer code: WMPLMPI540PVSIRM1

OMI code: 248607

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 set

Qty.
[set] 		Price
[EUR/set]
1+ 4277.75

Price details
WMPLMPI540PVSIRM1

Qty.
[set] 		Price
[EUR/set]
1+ 4277.75

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
SONEL
IP rating
IP51
Kit contents

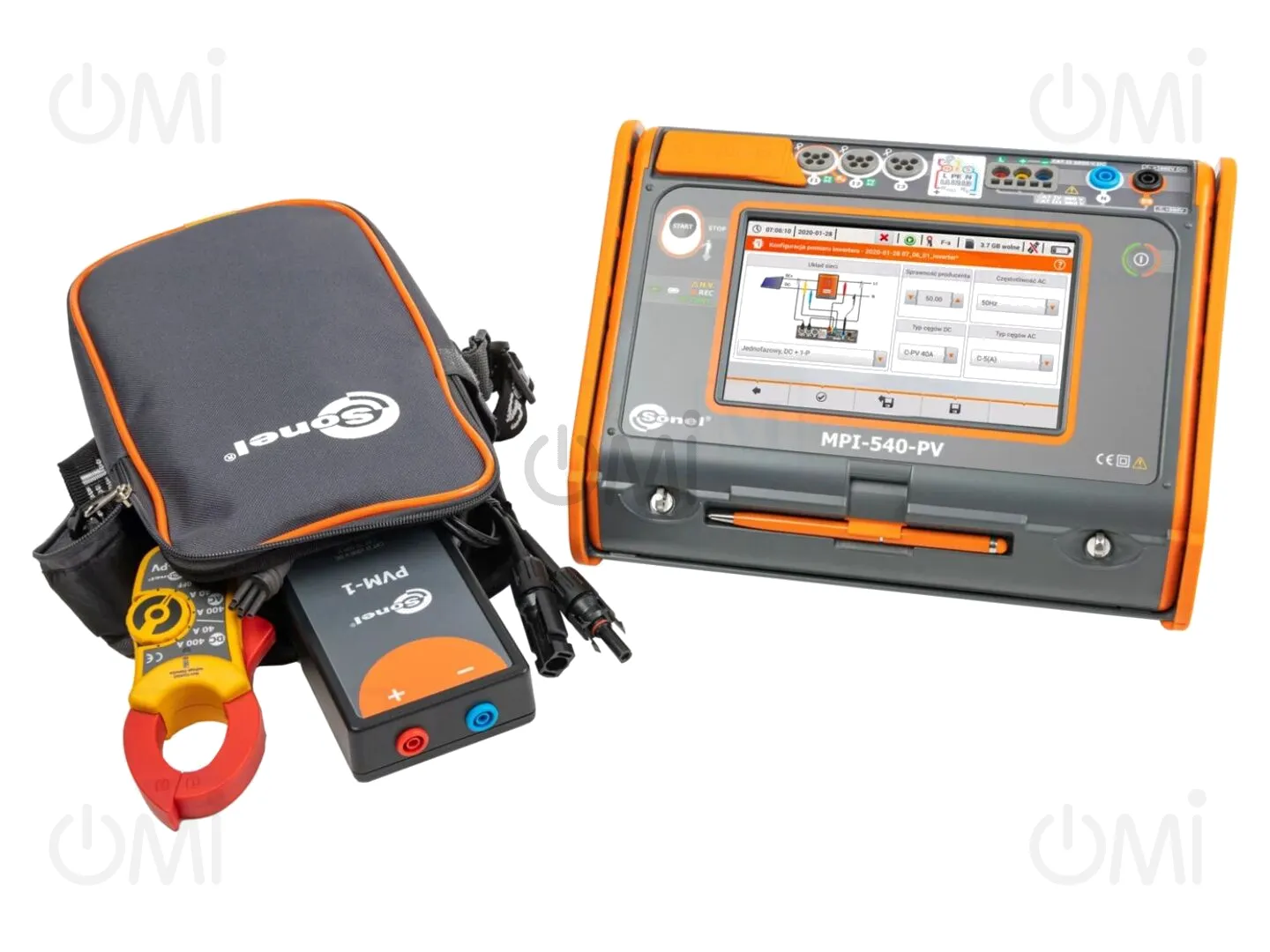

USB cable, carrying case, test leads x3, crocodile clips x3, 15m long test lead (blue), 30m long test lead (red), cable for supplying from car lighter socket, calibration certificate, carrying strap, multi-function meter of electrical system parameters MPI-540PVS-PL, solar radiation and temperature meter IRM-1, test probe x3
Conform to the norm
CAT IV 300V, EN 61010, CAT III 500V
Body dimensions
288x223x75mm
Interface
USB, Bluetooth, WiFi
Kind of display used
LCD TFT 7"
Measuring instrument features
checks conductors polarization
Display resolution
800x480
Measurement
AC voltage, active electric energy, active power, apparent electric energy, apparent power, frequency, harmonics, reactive electric energy, reactive power, earthing resistance, insulation resistance, RCD tripping time, THD, illuminance, RCD tripping current, short circuit loop impedance
Battery/ rechargeable battery
rechargeable battery Li-Ion 11,1V 3400mAh x1
Plug variant
EU
Touchpad
yes
Measuring instruments application
for solar panels, photovoltaics
AC voltage measuring range
0...500V
AC voltage measuring accuracy
±0.5%
RCD test
general purpose
Test voltage
50V, 100V, 250V, 500V, 1kV
Insulation resistance measuring ranges
500MΩ, 2GΩ, 999MΩ, 9.99GΩ, 50kΩ...250MΩ
Type of measuring kit
Sonel kit
Earthing resistance measuring range
0...99.9kΩ
Earthing resistance measuring accuracy
±(3% + 8 digit)
Gross weight 2200.00 g
