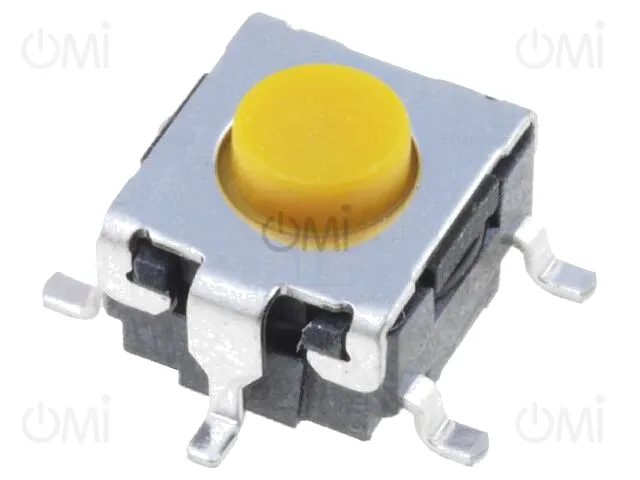

B3S-1102 OMRON Electronic Components

Details

B3S-1102
  • B3S-1102

Manufacturer product page OMRON Electronic Components

Microswitch TACT; SPST-NO; Pos: 2; 0.05A/24VDC; SMT; none; 2.26N

Manufacturer code: B3S-1102

OMI code: 2508

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]

Price details
B3S-1102

Qty.
[pcs] 		Price
[EUR/pcs]

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
OMRON Electronic Components
Mounting
SMT
Type of switch
microswitch TACT
Operating temperature
-25...70°C
Leads
for PCB
Body dimensions
6x6mm
Manufacturer series
B3S
Contacts configuration
SPST-NO
Contact plating
silver plated
Switching method
OFF-(ON)
Mechanical durability
300000 cycles
Contact material
phosphor bronze
Number of positions
2
DC contacts rating @R
50mA / 24V DC
Actuator colour
yellow
Terminal pitch
4.5x9mm
Illumination
none
Max. contact resistance:
100mΩ
Button shape
round
Min. insulation resistance
0.1GΩ
Button height
4.3mm
Stable positions number
1
Operating Force
2.26N
Key stroke
0.25mm
Gross weight 0.28 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Microswitches TACT
