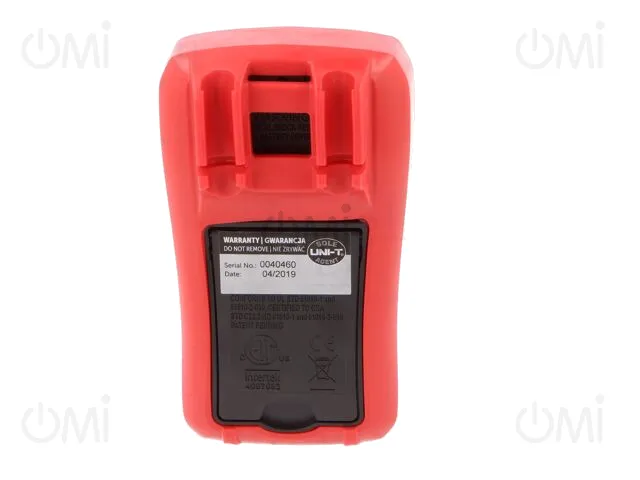

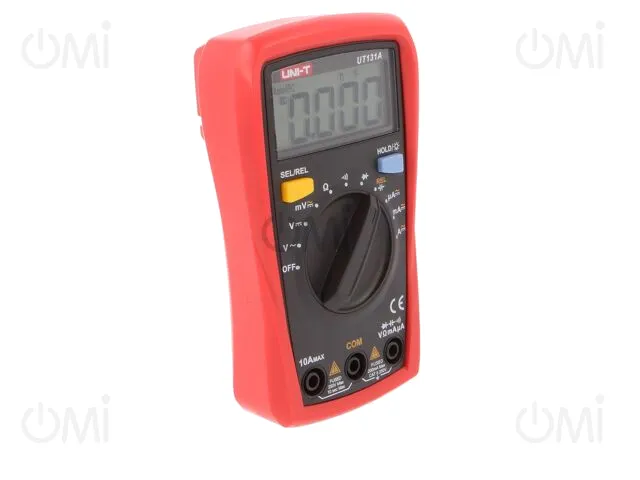

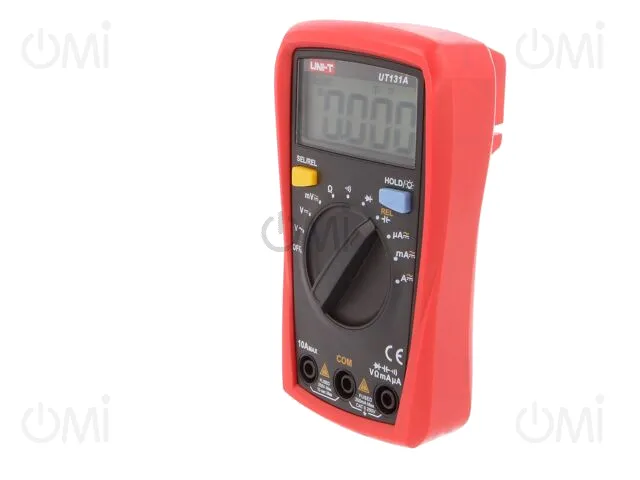

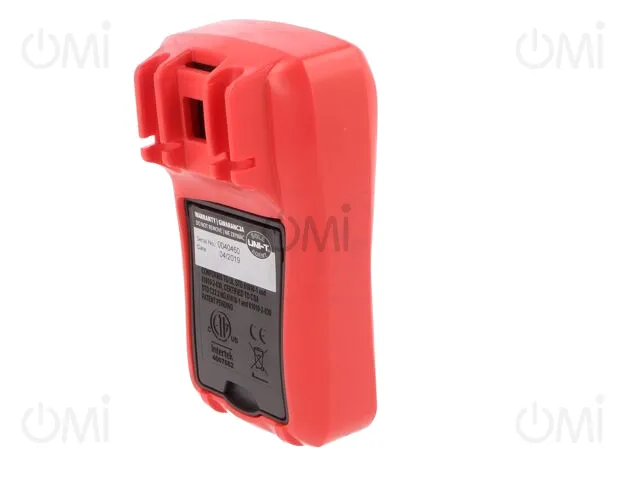

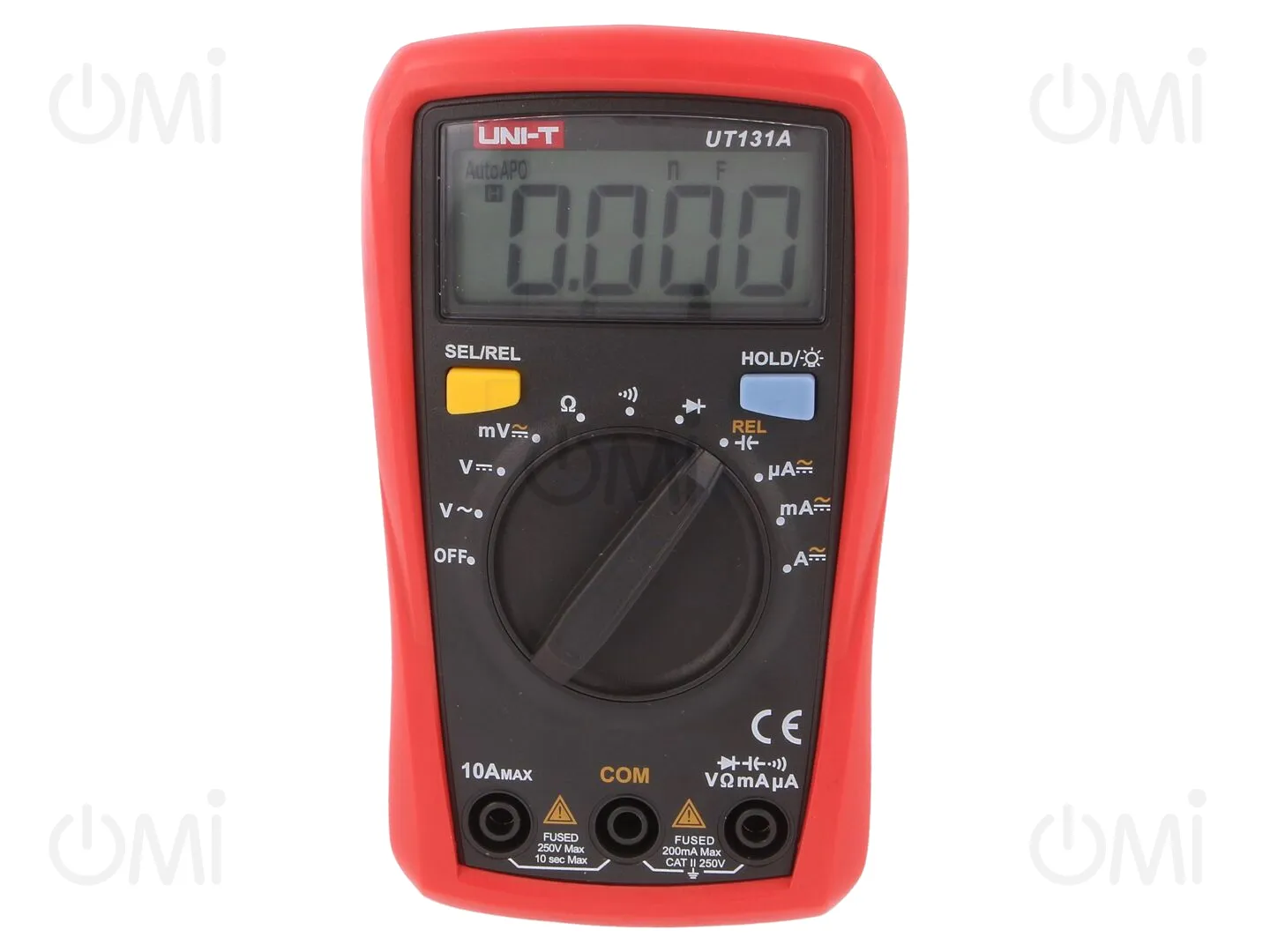

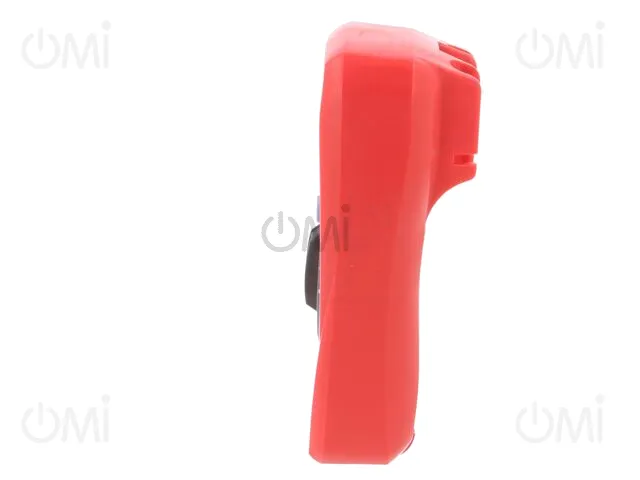

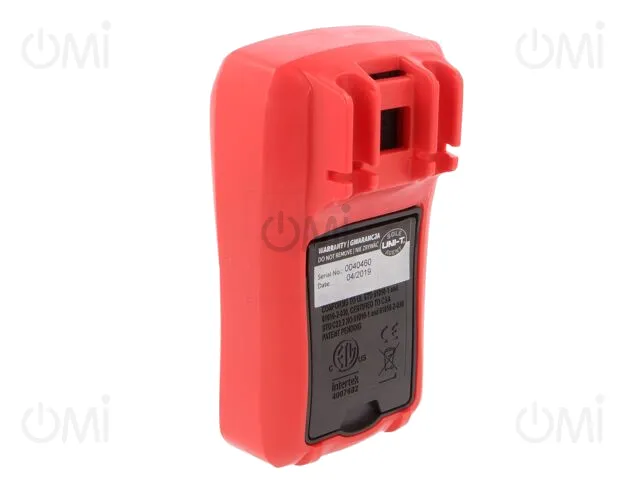

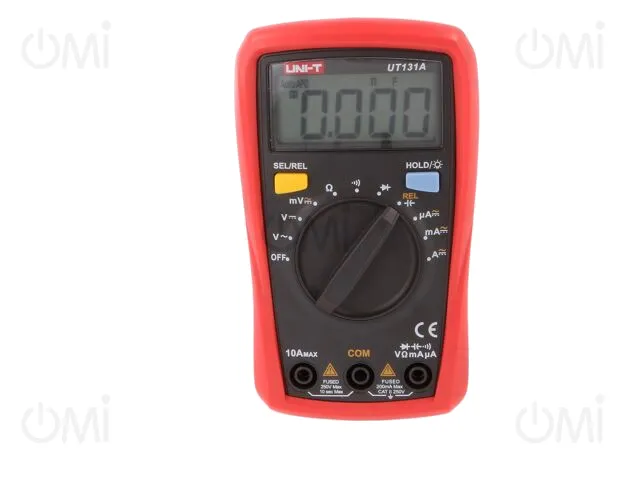

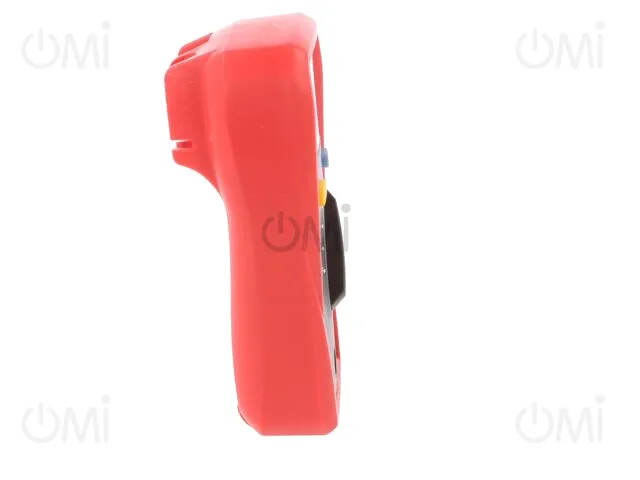

UT131A UNI-T

Details

UT131A
UT131A
UT131A
UT131A
UT131A
UT131A
UT131A
UT131A
UT131A
  • UT131A
  • UT131A
  • UT131A
  • UT131A
  • UT131A
  • UT131A
  • UT131A
  • UT131A
  • UT131A

Manufacturer product page UNI-T

Digital multimeter; LCD; (2000); VDC accuracy: ±(0.5%+2digit)

Manufacturer code: UT131A

OMI code: 2529

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

111 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 19.96
2+ 18.89

Price details
UT131A

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 19.96
2+ 18.89

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
UNI-T
Conform to the norm
EN 61010, CAT II 250V
Kind of display used
LCD
Illumination
yes
Power supply
battery LR03 AAA 1,5V x2
Standard equipment
test leads
Measuring instrument features
automatic power-off, HOLD function, autoranging
Display parameters
(2000)
Type of meter
digital multimeter
Measurement
AC current, DC current, DC voltage, resistance, AC voltage, capacitance, continuity
AC current measuring range
10A, 2mA, 20mA, 200mA, 2A, 0.1...200µA
Dimensions (W x H x D)
95x131x58mm
Continuity test
acoustic indication, <10Ω
Test
diodes
Resistance measuring range
2kΩ, 20kΩ, 200kΩ, 2MΩ, 100mΩ...200Ω, 20MΩ, 200MΩ
DC current measuring range
10A, 2mA, 20mA, 200mA, 2A, 0.1...200µA
DC voltage measuring range
2V, 20V, 200V, 0.1...200mV, 250V
AC voltage measuring range
2V, 20V, 200V, 0.1...200mV, 250V
AC current measuring accuracy
±(1.2% + 3 digit)
DC voltage measuring accuracy
±(0.5% + 2 digit)
Capacitance measuring range
200µF, 2µF, 2mF, 20µF, 20nF, 200nF, 1pF...2nF
DC current measuring accuracy
±(1% + 2 digit)
AC voltage measuring accuracy
±(0.7% + 3 digit)
Resistance measuring accuracy
±(0.8%+2 digit)
Capacitance measuring accuracy
±(4%+ 8 digit)
Gross weight 317.24 g
Documentation in English #1 Documentation in English #2 Documentation in English #3

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Portable digital multimeters
