MW9520 SEFRAM

Details

MW9520
  • MW9520

Manufacturer product page SEFRAM

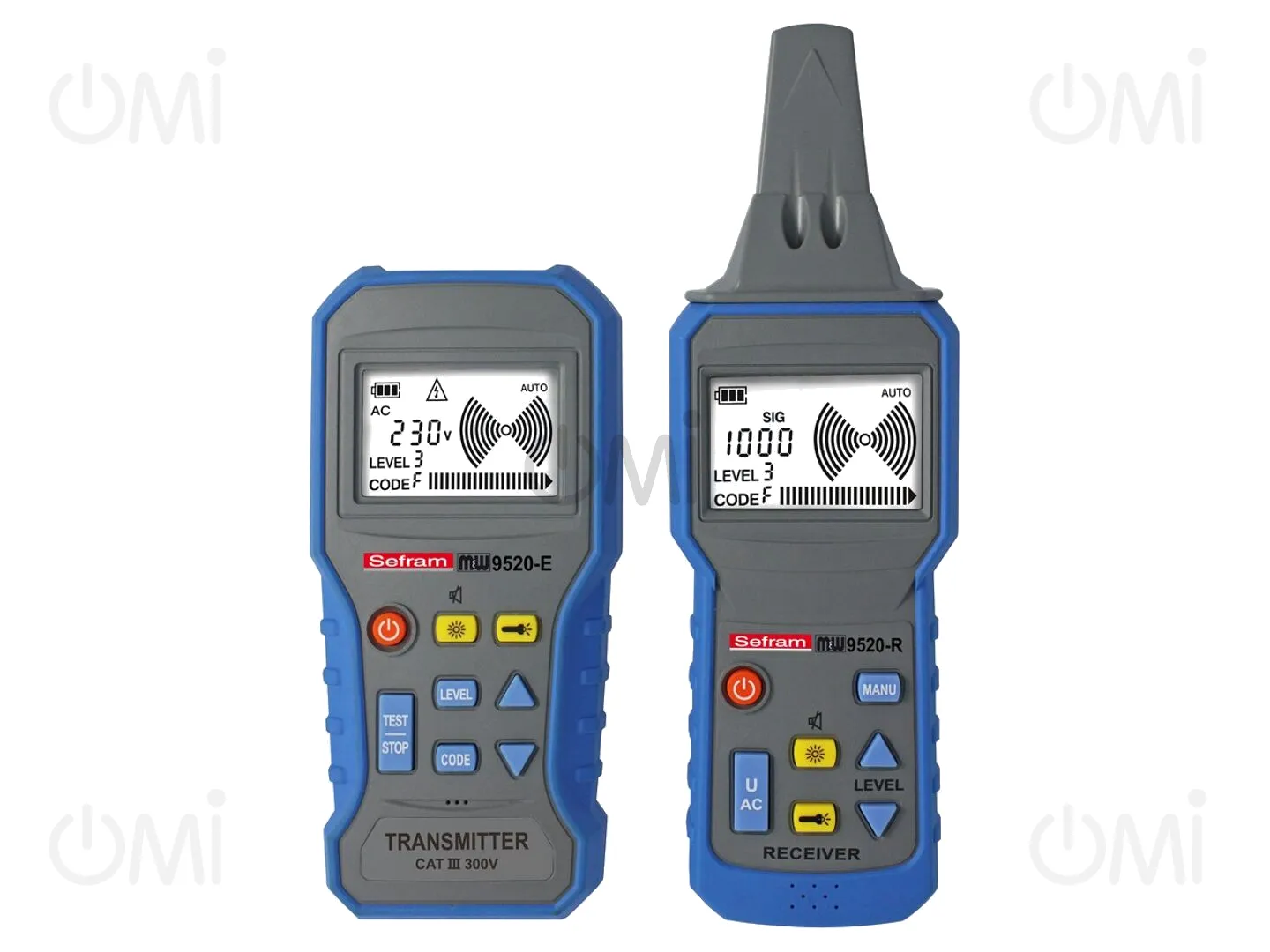

Wire localizer; LCD; 12÷450VAC,12÷450VDC; Output signal: 125kHz

Manufacturer code: MW9520

OMI code: 25650

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 491.85

Price details
MW9520

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 491.85

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
SEFRAM
Conform to the norm
EN 61010, CAT III 450V
Kind of display used
LCD
Power supply
battery LR03 AAA 1,5V x12
Additional functions
torch
Standard equipment
hard case, test leads, user's manual, a bayonet adapter B22, adapter for main socket, a earth spike, a screw adapter E27, receiver, transmitter, crocodile clips (red, black)
Measuring instrument features
automatic power-off, auto and manual ranging, contactless voltage detector, detects wires in ceilings, walls and floors, level selection mode, signal coding (F, E, H, d, L, C, O, A)
Output signal
125kHz
Battery/ rechargeable battery
battery LR03 AAA 1,5V x12
Detection
place of cable failure, conductors at depth up to 2m (1-pole application), conductors at depth up to 0,5m (2-pole application), location and tracking of lines and sockets, location metal heating ducts, location of fuses or breaker on switching boards, location water pipes
Bargraph
yes
DC voltage measuring range
12...300V
AC voltage measuring range
12...300V
Type of tester
wire localizer
Receiver dimensions
188x90x47mm
Transmitter dimensions
247x78x45mm
Detected voltage range
12...450V AC, 12...450V DC
Gross weight 2736.80 g
Documentation in English #1 Documentation in English #2 Documentation in English #3

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.
