TEN 8-2422WI TRACO POWER

Details

TEN 8-2422WI
TEN 8-2422WI
TEN 8-2422WI
TEN 8-2422WI
TEN 8-2422WI
TEN 8-2422WI
TEN 8-2422WI
TEN 8-2422WI
TEN 8-2422WI
  • TEN 8-2422WI
  • TEN 8-2422WI
  • TEN 8-2422WI
  • TEN 8-2422WI
  • TEN 8-2422WI
  • TEN 8-2422WI
  • TEN 8-2422WI
  • TEN 8-2422WI
  • TEN 8-2422WI

Manufacturer product page TRACO POWER

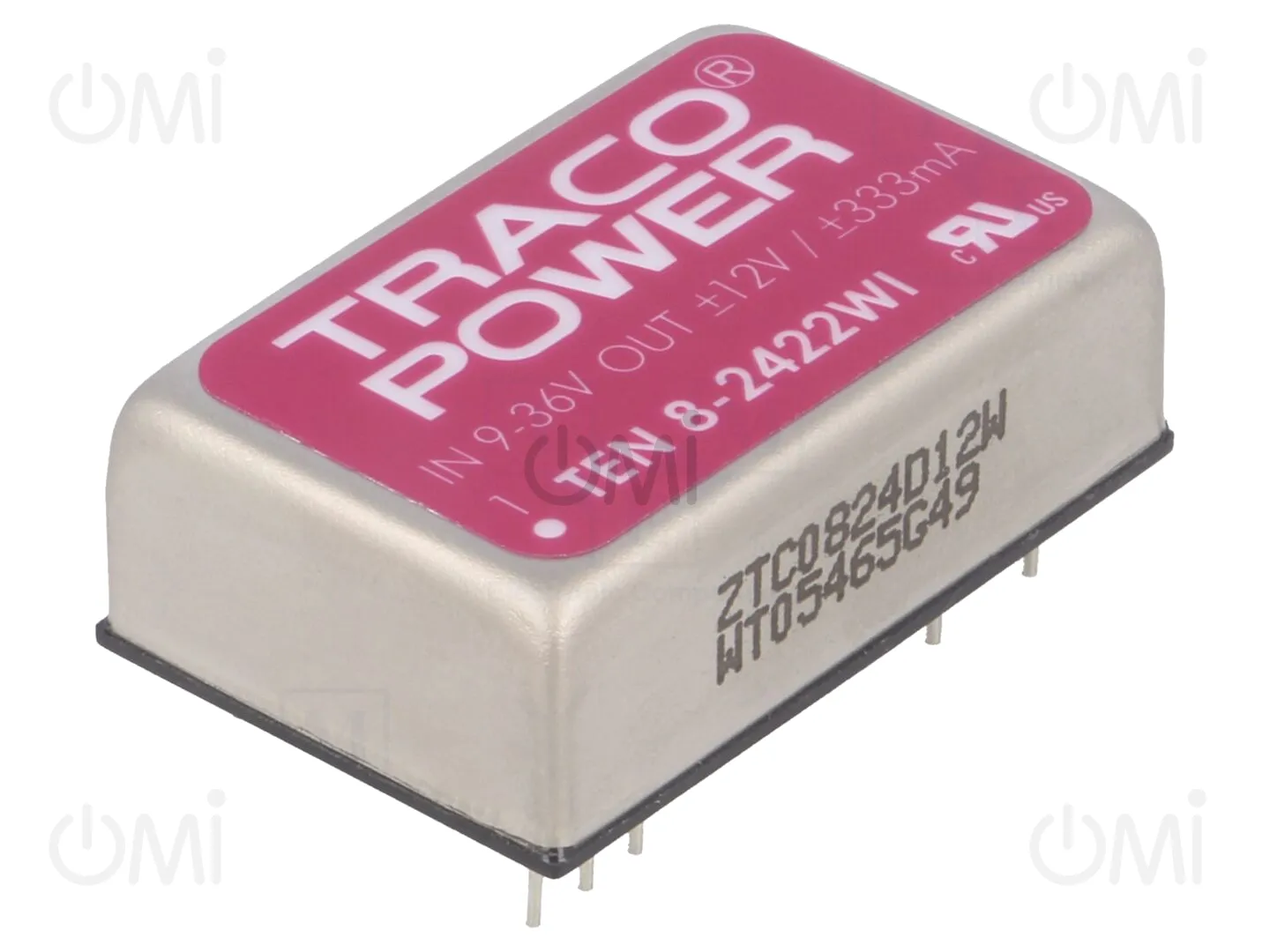

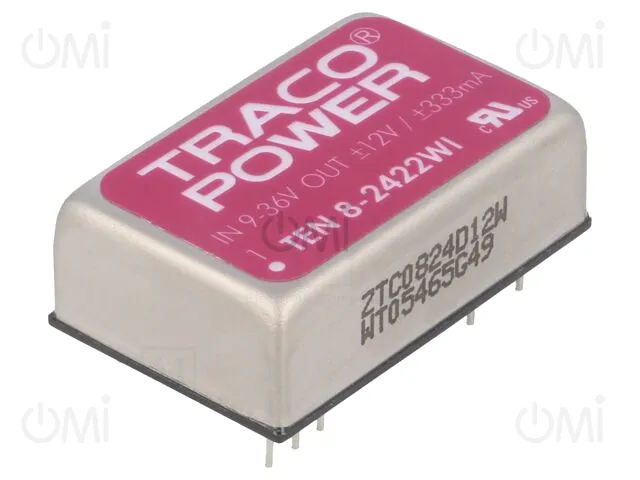

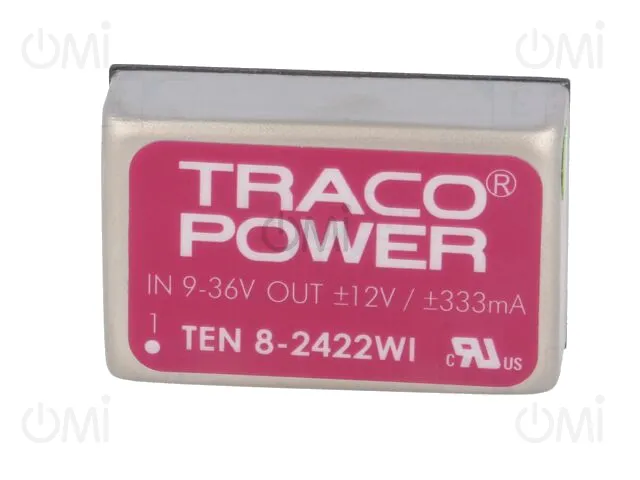

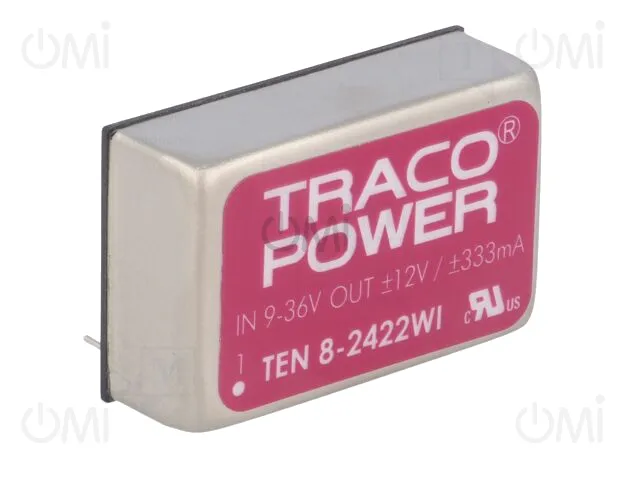

Converter: DC/DC; 8W; Uin: 9÷36V; Uout: 12VDC; Uout2: -12VDC; DIP24

Manufacturer code: TEN 8-2422WI

OMI code: 258060

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

13 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 45.02
2+ 43.61
5+ 46.31
10+ 45.52

Price details
TEN 8-2422WI

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 45.02
2+ 43.61
5+ 46.31
10+ 45.52

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
TRACO POWER
Operating temperature
-40...85°C
Power
8W
Type of converter
DC/DC
Manufacturer series
TEN 8WI
Output voltage
12V DC
Case
DIP24
Body dimensions
32x20.3x10.2mm
Output current
0.333A
Number of outputs
2
Insulation voltage
1.5kV DC
Input voltage
9...36V
Switching frequency
300kHz
Efficiency
86%
Output voltage 2
-12V DC
Protection
short circuit protection SCP, anti-overload OPP, anti-overvoltage OVP
Output current 2
333mA
Gross weight 16.30 g
Documentation in English #1
