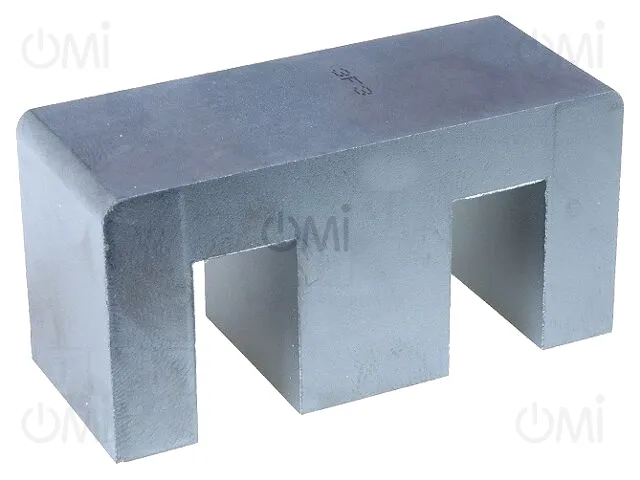

E65/32/27-3F3 FERROXCUBE

Details

E65/32/27-3F3
  • E65/32/27-3F3

Manufacturer product page FERROXCUBE

Core: ferrite; E; 3F3; 7300nH; 79000mm3; 540mm2; A: 65mm; B: 44.2mm

Manufacturer code: E65/32/27-3F3

OMI code: 266081

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

94 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
2+ 12.19
3+ 7.54
5+ 7.14

Price details
E65/32/27-3F3

Qty.
[pcs] 		Price
[EUR/pcs]
2+ 12.19
3+ 7.54
5+ 7.14

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
FERROXCUBE
Version
E
Material
3F3
E dimension
22.2mm
A dimension
65mm
Type of core
ferrite
D dimension
32.8mm
B dimension
44.2mm
C dimension
20mm
F dimension
27.4mm
Effective core volume (Ve)
79000mm<sup>3</sup>
Inductance factor Al
7300nH
Effective core cross-section (Ae)
540mm<sup>2</sup>
Gross weight 191.00 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Ferrite Cores
