GKS-100 238 090 A 2200 INGUN

Details

GKS-100 238 090 A 2200
  • GKS-100 238 090 A 2200

Manufacturer product page INGUN

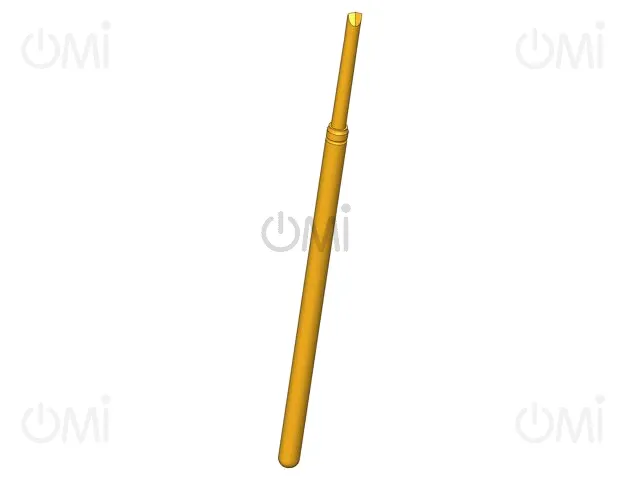

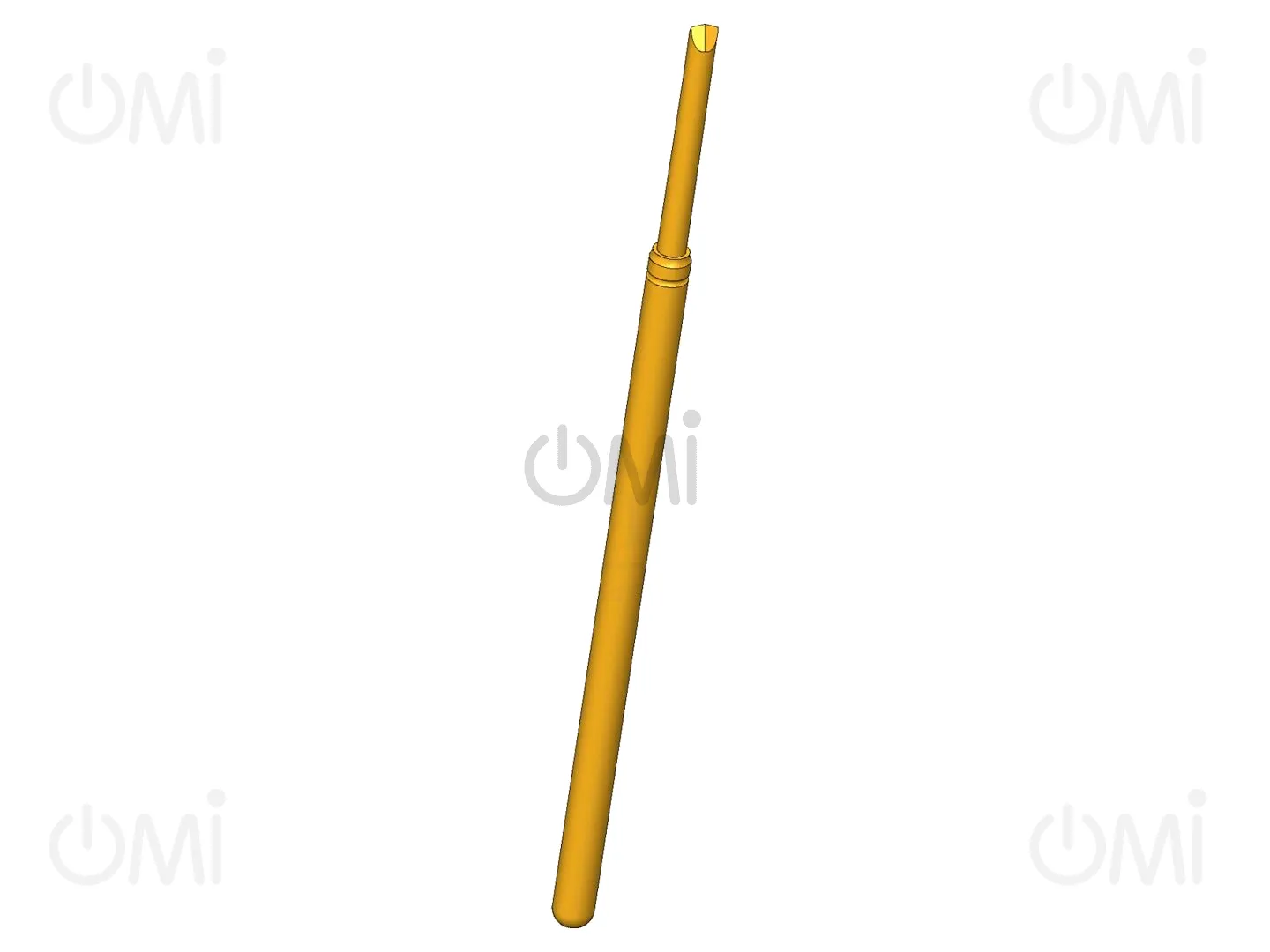

Test needle; Operational spring compression: 4.3mm; 5A; Ø: 0.9mm

Manufacturer code: GKS-100 238 090 A 2200

OMI code: 2695

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 7.11
5+ 6.94
10+ 6.67

Price details
GKS-100 238 090 A 2200

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 7.11
5+ 6.94
10+ 6.67

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
INGUN
Mounting
push-in
Operating temperature
-40...80°C
Length
33.4mm
Current rating
5A
Manufacturer series
GKS-100
Contact plating
gold-plated
Contact material
steel
Type of test accessories
test needle
Max. contact resistance:
20mΩ
Test accessories features
magnetic, self-cleaning
Blade tip shape
sharp
Maksimum spring compression
6.35mm
Operational spring compression
4.3mm
Tip diameter
0.9mm
Spring compression force
2.25N
Gross weight 1.00 g
Documentation in English #1
