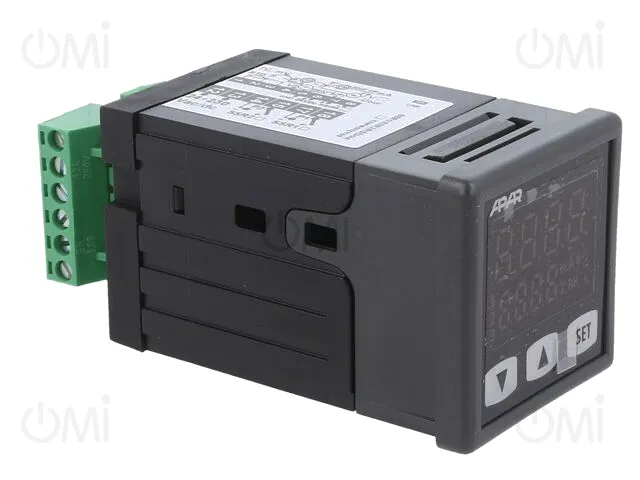

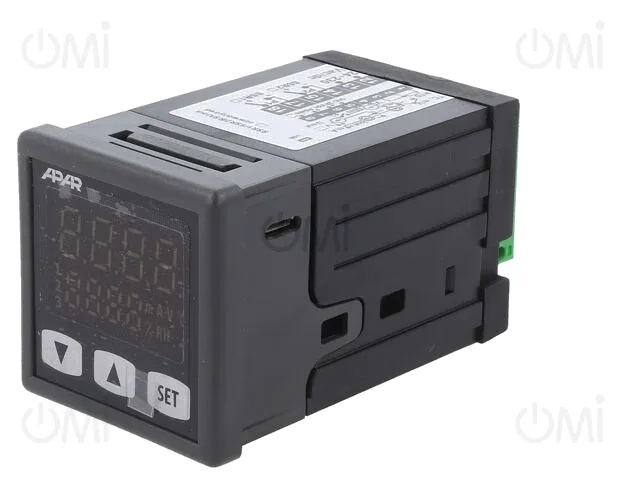

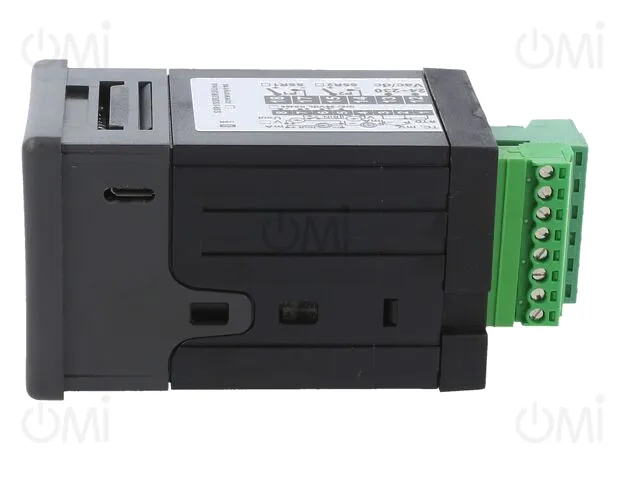

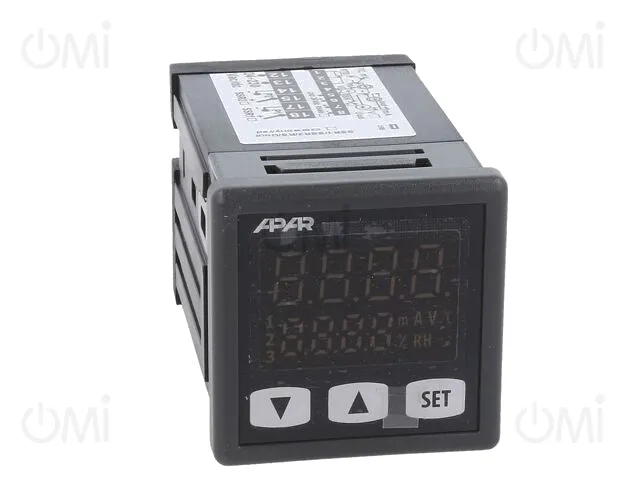

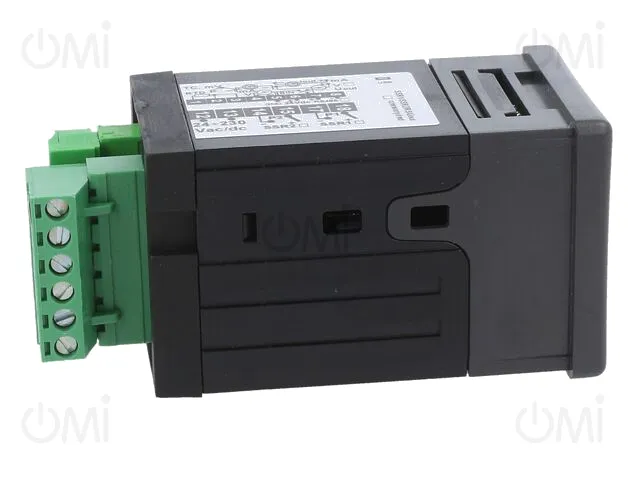

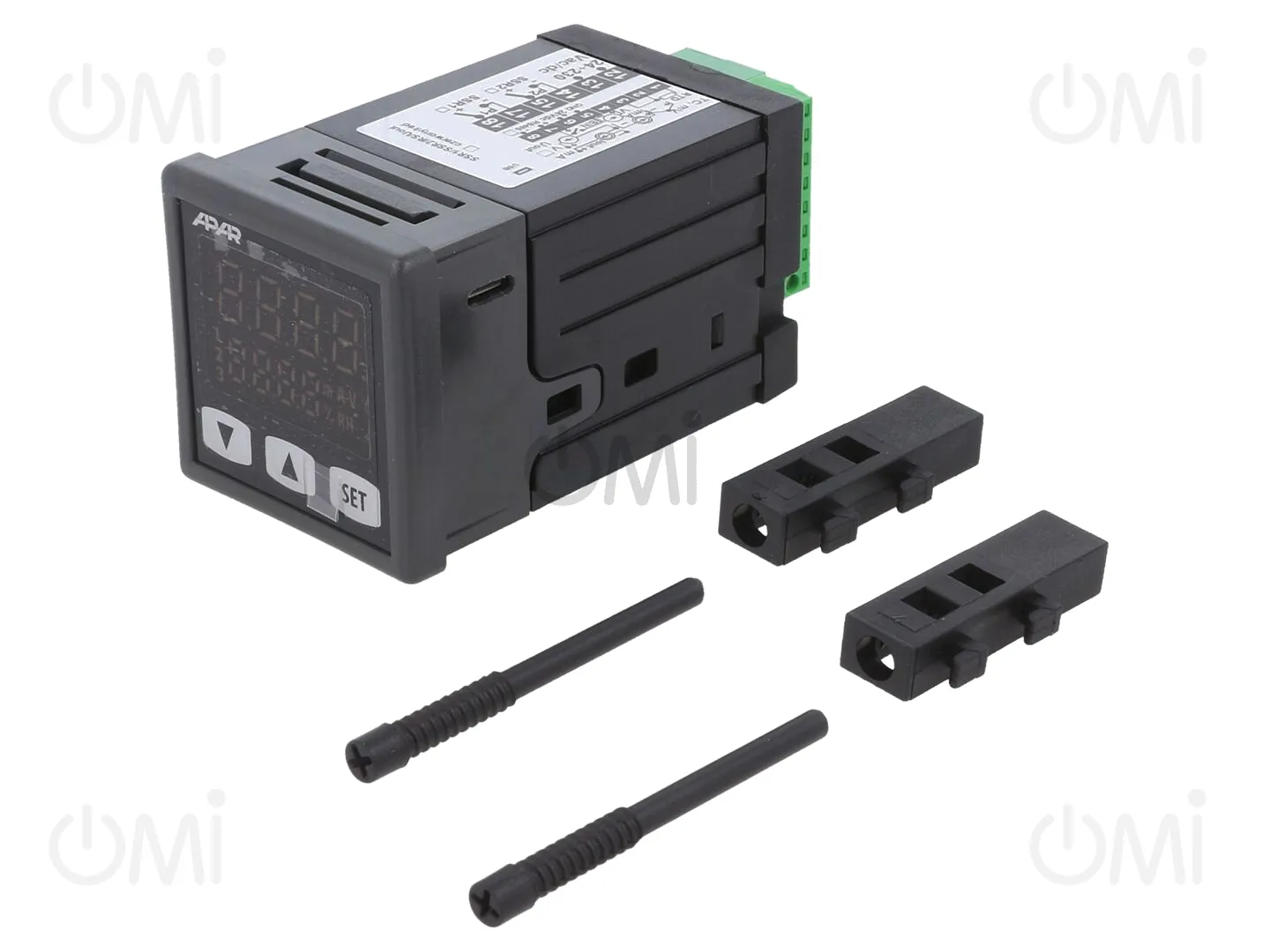

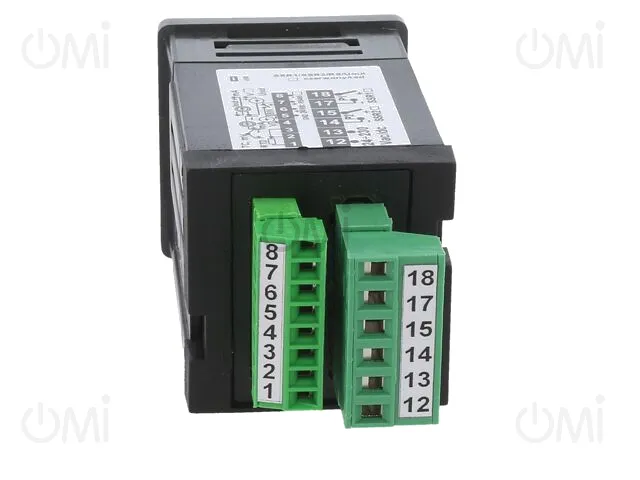

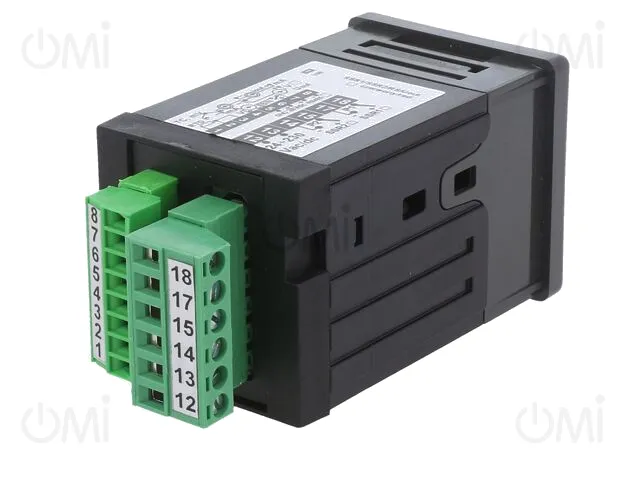

AR602.B/P/P/WA APAR

Details

AR602.B/P/P/WA
AR602.B/P/P/WA
AR602.B/P/P/WA
AR602.B/P/P/WA
AR602.B/P/P/WA
AR602.B/P/P/WA
AR602.B/P/P/WA
AR602.B/P/P/WA
AR602.B/P/P/WA
  • AR602.B/P/P/WA
  • AR602.B/P/P/WA
  • AR602.B/P/P/WA
  • AR602.B/P/P/WA
  • AR602.B/P/P/WA
  • AR602.B/P/P/WA
  • AR602.B/P/P/WA
  • AR602.B/P/P/WA
  • AR602.B/P/P/WA

Manufacturer product page APAR

Module: regulator; temperature; SPST-NO; OUT 2: SPST-NO; on panel

Manufacturer code: AR602.B/P/P/WA

OMI code: 270779

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

17 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 155.21
5+ 150.44

Price details
AR602.B/P/P/WA

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 155.21
5+ 150.44

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
APAR
Mounting
on panel
Operating temperature
0...50°C
IP rating
IP54 (from the front)
Manufacturer series
AR602
Supply voltage
18...265V AC, 22...350V DC
Body dimensions
48x48x79mm
Mounting hole diameter
46x46mm
Type of module
regulator
Kind of display used
LED x2
Kind of output 1
SPST-NO
The programming method
foil keypad
Additional functions
LED status indicator, temperature compensation of thermocouple cold ends, display brightness adjustment, error messages on the LED display, sensors supply voltage: 24V DC / 30mA
Controlled parameter
temperature
Kind of temperature sensor
Pt100, thermocouple B, thermocouple J, thermocouple K, thermocouple R, thermocouple S, thermocouple T, Ni100
Regulation for output 1
ON-OFF, PID, ON-OFF with hysteresis, AUTOTUNING
Display parameters
4-digit
Controlled parameter range
-999...9990
Kind of input 1
0...10V, universal, 0...60mV, 0/4...20mA, 0...2,5kΩ
Input 1 properties
analogue voltage, current analog, RTD, thermocouple
Display height 1
9mm
Display 2 height
7mm
Kind of output 2
SPST-NO
Kind of output 3
0/4...20mA
Regulation for output 2
ON-OFF with hysteresis
Gross weight 238.70 g
Documentation in English #1 Documentation in English #2
