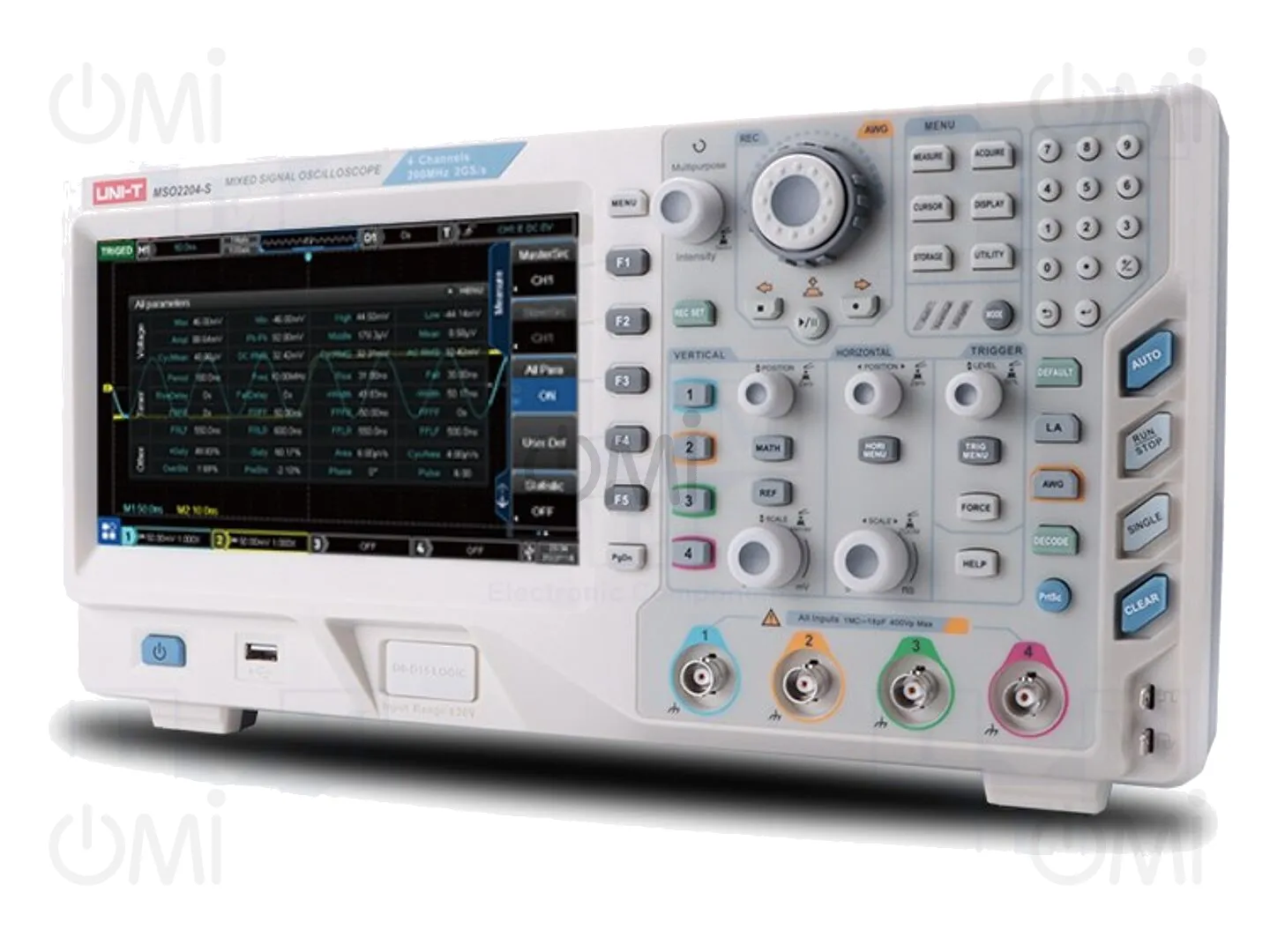

MSO2204-S UNI-T

Details

MSO2204-S
  • MSO2204-S

Manufacturer product page UNI-T

Oscilloscope: digital; Ch: 4; 200MHz; 2 Gs/s; 56Mpts; LCD TFT 8"

Manufacturer code: MSO2204-S

OMI code: 271287

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

6 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 1260.87

Price details
MSO2204-S

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 1260.87

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
UNI-T
Supply voltage
100...240V AC
Related items
MSO/UPO2000-AUTO, MSO/UPO2000-BND, MSO/UPO2000-CAN, MSO/UPO2000-CANF, MSO/UPO2000-COM, MSO/UPO2000-EMBD, MSO/UPO2000-FR, MSO/UPO2000-I2C, MSO/UPO2000-LIN, MSO/UPO2000-SPI
Dimensions
370x185x115mm
Interface
LAN, USB device, USB Host, VGA, AUX
Number of channels
4
Kind of display used
LCD TFT 8"
Standard equipment
USB cable, mains cable, BNC cable, test probe x2
Measuring instrument features
automatic measurement of many parameters, mathematical functions: addition, subtraction, division, multiplication and FFT, split screen function
Input impedance
1MΩ/16pF
Display resolution
800x480
Sampling
2 Gs/s
Band
200MHz
Trigger
rising-edge, falling-edge, impulse width, video signal, pattern, runt, slope, runt, with delay, Nth Edge
Type of oscilloscope
digital
Input coupling
AC, DC, GND
Vertical resolution
8bit
Rise time
≤1.8ns
Input sensitivity
500µV/div...20V/div
Time base
1n...1ks/div
Memory record length
56Mpts
Gross weight 5000.00 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Digital Oscilloscopes
