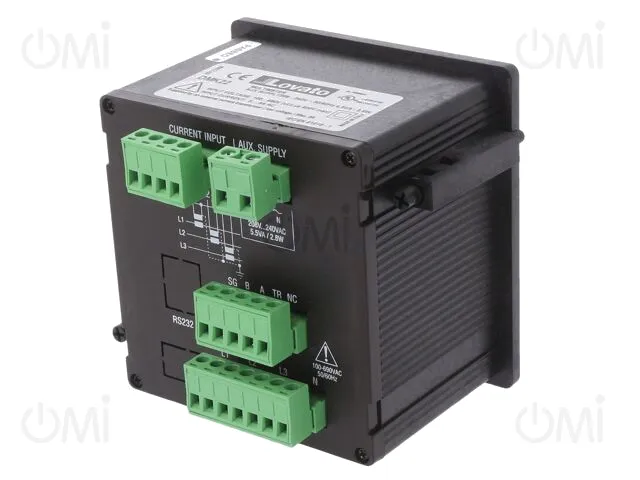

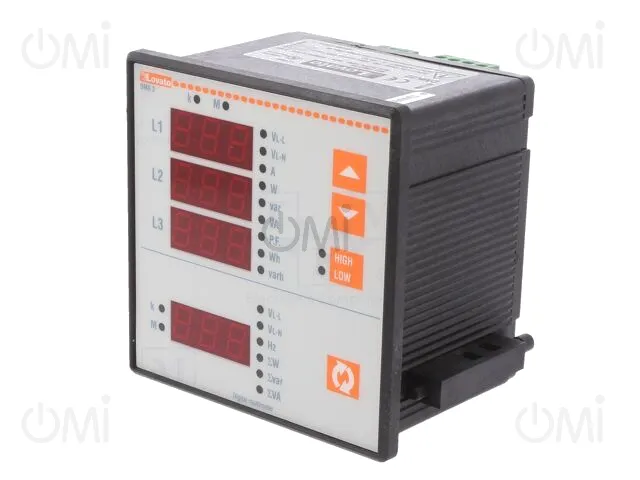

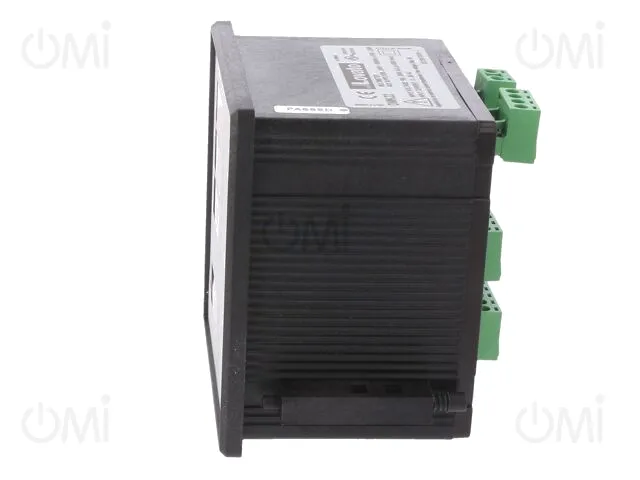

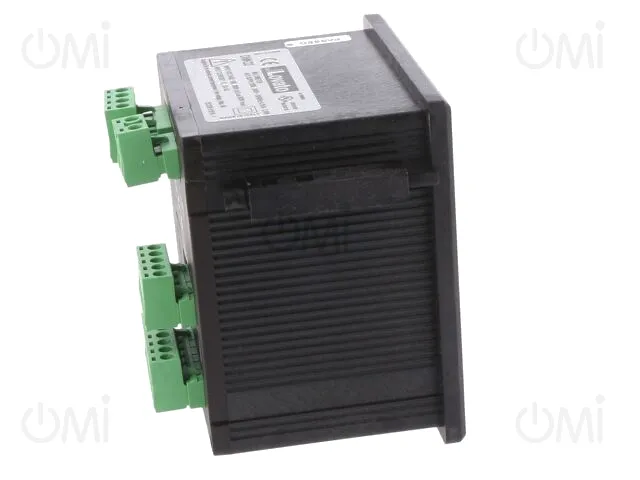

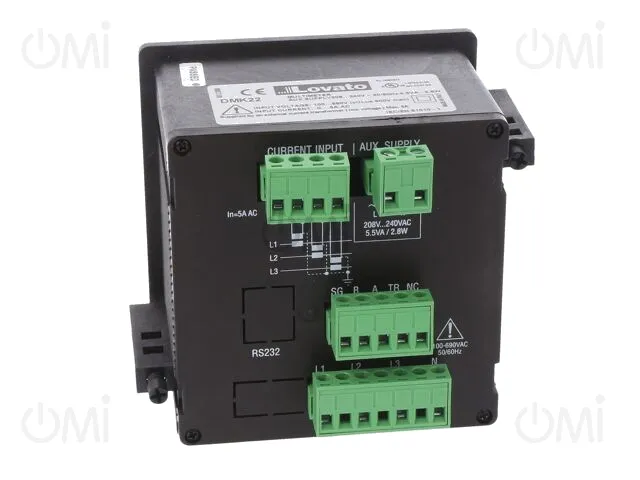

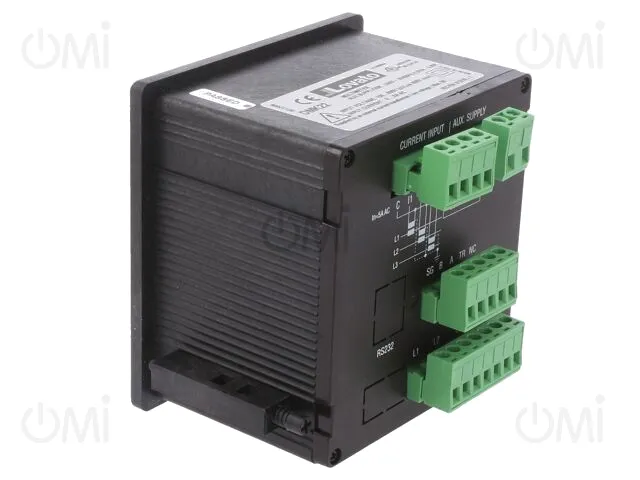

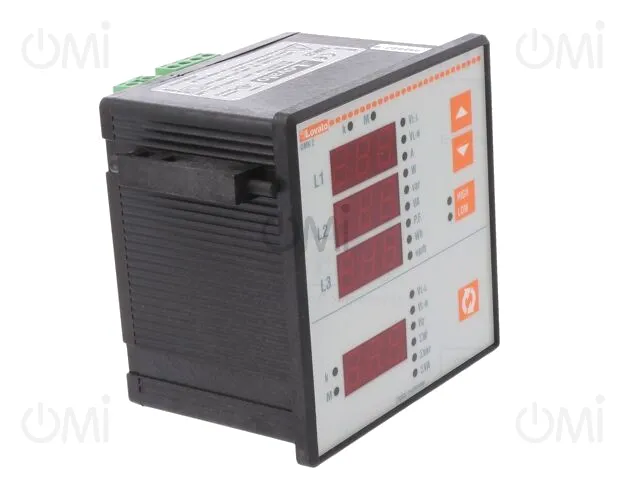

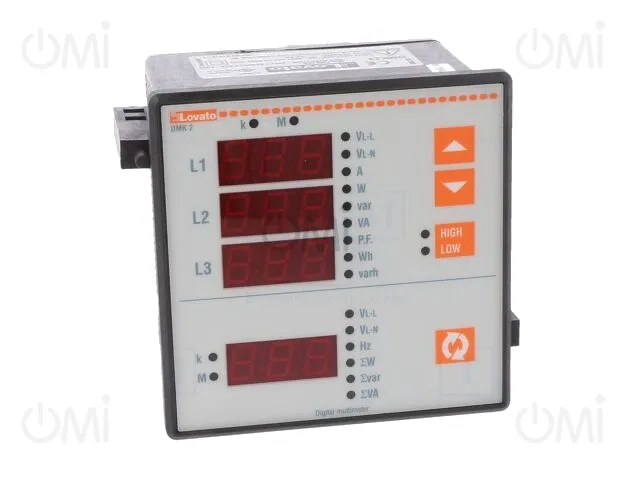

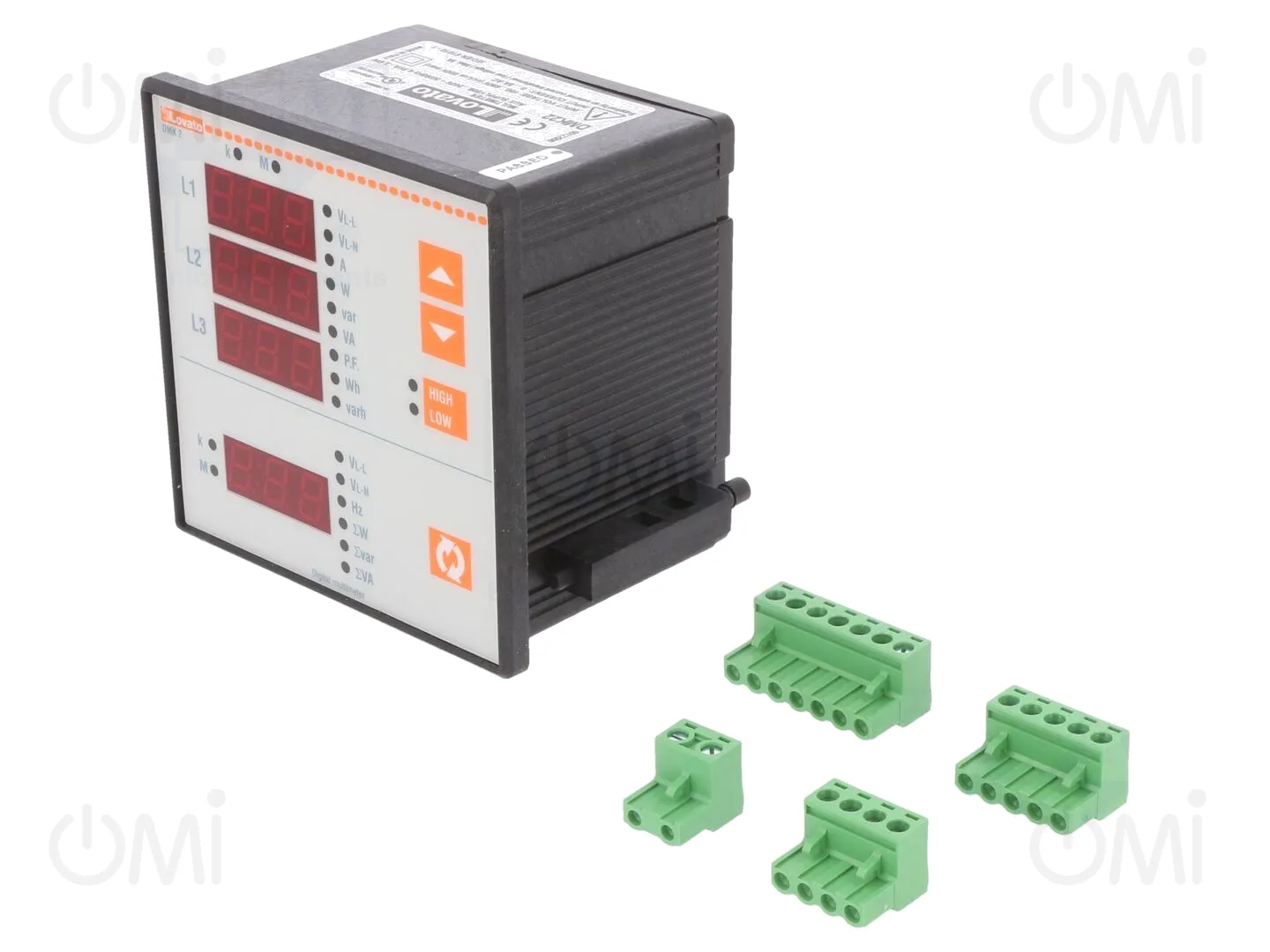

DMK 22 LOVATO ELECTRIC

Details

DMK 22
DMK 22
DMK 22
DMK 22
DMK 22
DMK 22
DMK 22
DMK 22
DMK 22
  • DMK 22
  • DMK 22
  • DMK 22
  • DMK 22
  • DMK 22
  • DMK 22
  • DMK 22
  • DMK 22
  • DMK 22

Manufacturer product page LOVATO ELECTRIC

Meter: network parameters; on panel; digital,mounting; LED

Manufacturer code: DMK 22

OMI code: 27384

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

1 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 346.58
3+ 335.91

Price details
DMK 22

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 346.58
3+ 335.91

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
LOVATO ELECTRIC
Mounting
on panel
IP rating
IP20 at terminal side, IP54 (from the front)
Mounting hole diameter
91x91mm
Interface
RS485
Operating frequency
45...65Hz
Kind of display used
LED
Kind of network
three-phase
Measuring instrument features
energy counter
Type of meter
network parameters
True effective value measurement
True RMS
Measurement
AC current, AC voltage, active power, apparent power, frequency, power factor, reactive power
Kind of meter
digital, mounting
AC current measuring range
50mA...6A
Dimensions (W x H x D)
96x96x82mm
Kind of measurement
indirect with 5A current transformer
AC voltage measuring range
30...480V
AC current measuring accuracy
±(0.5% + 0.5% range)
AC voltage measuring accuracy
±(0.5% + 0.35% range)
Active power measuring accuracy
±(1% + 1 digit)
Gross weight 455.10 g
Documentation in English #1 Documentation in English #2 Documentation in English #3

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Power Network Meters and Analyzers
