XDS3202E OWON

Details

XDS3202E
  • XDS3202E

Manufacturer product page OWON

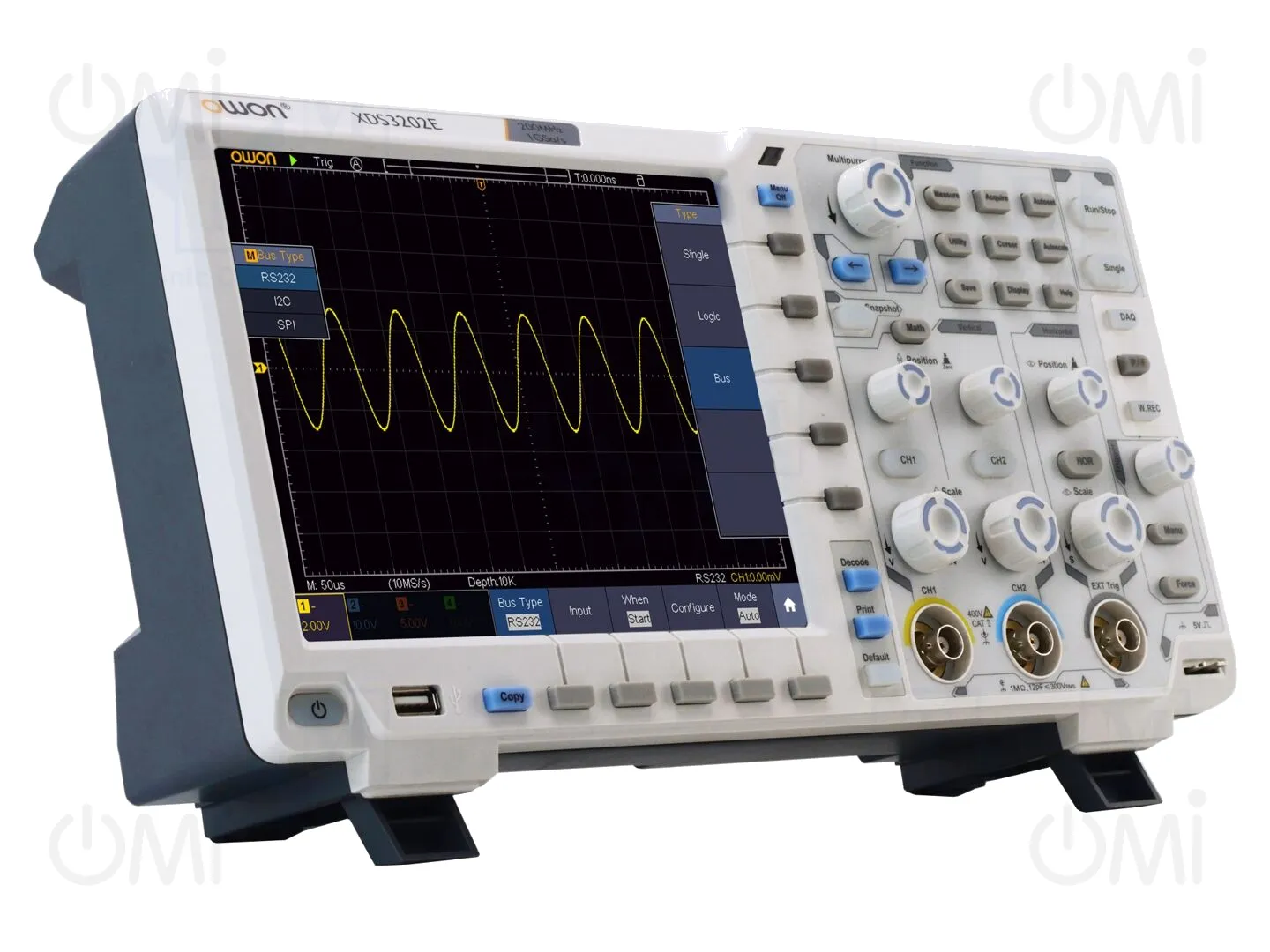

Oscilloscope: digital; Ch: 2; 200MHz; 1Gsps; 40Mpts; LCD TFT 8"

Manufacturer code: XDS3202E

OMI code: 276402

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

14 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 438.42
4+ 423.13

Price details
XDS3202E

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 438.42
4+ 423.13

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
OWON
Manufacturer series
XDS
Supply voltage
100...240V AC
Related items
XDS-SOFTBAG
Body dimensions
340x177x90mm
Power consumption
24W
Interface
USB, LAN, VGA
Number of channels
2
Kind of display used
LCD TFT 8"
Additional functions
frequency meter
Standard equipment
USB cable, user's manual, mains cable, oscilloscope probe (1 per channel), trimmer
Measuring instrument features
AUTOSET function for setting display parameters (time base, gain), measurements by means of cursors, mathematical functions: addition, subtraction, division, multiplication and FFT, protocols analyse: I2C, CAN, SPI, RS232/UART
Input impedance
1MΩ/15pF
Display resolution
800x600
Measurement memory
100
Plug variant
EU
Software
LabVIEW
Sampling
1Gsps
Band
200MHz
Trigger
rising-edge, falling-edge, video signal, runt, pulse, slope, window, SPI, CAN, I2C, Nth Edge, RS232, timeout, logic
Type of oscilloscope
digital
Input coupling
AC, DC, GND
Vertical resolution
8bit
Trigger modes
automatic, normal, single
Max. input voltage
300V
Rise time
≤1.75ns
Input sensitivity
1mV/div...10V/div
Time base
1n...1ks/div
Memory record length
40Mpts
Gross weight 3237.50 g
Documentation in English #1 Documentation in English #2 Documentation in English #3 Documentation in English #4

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.
