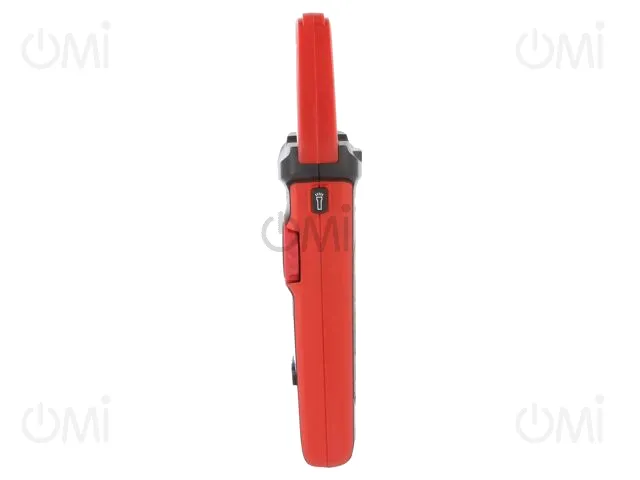

UT216C UNI-T

Details

UT216C
UT216C
UT216C
UT216C
UT216C
UT216C
UT216C
UT216C
UT216C
  • UT216C
  • UT216C
  • UT216C
  • UT216C
  • UT216C
  • UT216C
  • UT216C
  • UT216C
  • UT216C

Manufacturer product page UNI-T

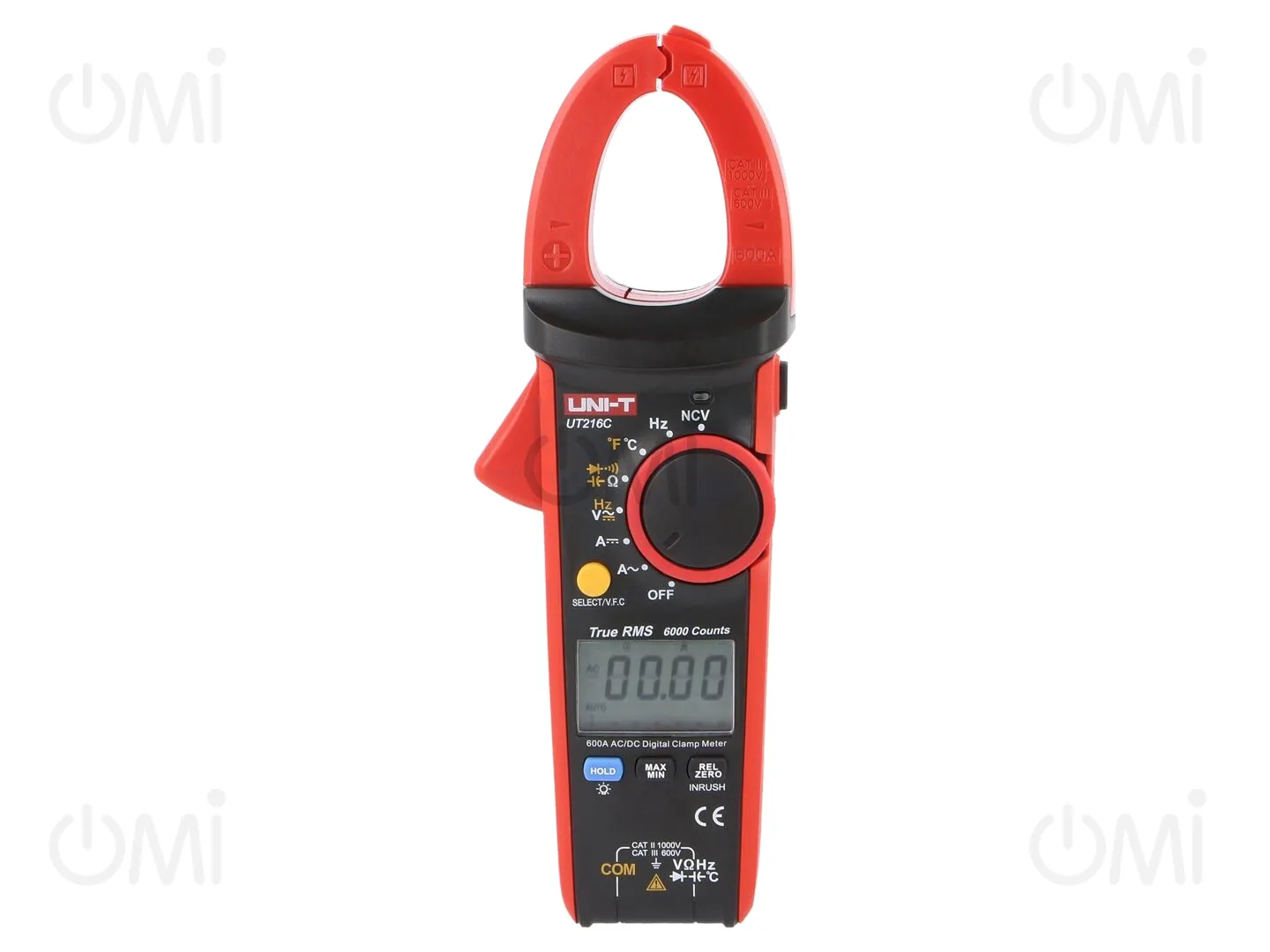

Meter: multifunction; digital,pincers type; Øcable: 30mm; LCD

Manufacturer code: UT216C

OMI code: 277464

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

37 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 103.15

Price details
UT216C

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 103.15

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
UNI-T
Conform to the norm
CAT III 600V, CAT II 1000V, EN 61010
Dimensions
220x75x40mm
Kind of display used
LCD
Illumination
yes
Power supply
battery R03 AAA 1,5V x3
Additional functions
torch
Standard equipment
test leads, case, temperature probe
Measuring instrument features
automatic power-off, low battery indicator, contactless voltage detector, HOLD function, autoranging, MIN/MAX/REL function
Display parameters
(6000)
Type of meter
multifunction
Temperature measuring range
-40...1000°C
True effective value measurement
True RMS
Measurement
AC current, DC current, DC voltage, resistance, temperature, AC voltage, frequency, inrush current, capacitance, continuity
Battery/ rechargeable battery
battery R03 AAA 1,5V x3
Kind of meter
digital, pincers type
AC current measuring range
600A, 60A
Continuity test
acoustic indication, <30Ω
Frequency measuring range
60kHz, 1MHz, 6kHz, 600Hz, 600kHz, 10mHz...60Hz
Weight with battery
231.7g
Test
diodes
Bargraph
yes
Pollution degree
2
Resistance measuring range
6kΩ, 60kΩ, 6MΩ, 60MΩ, 600kΩ, 100mΩ...600Ω
DC current measuring range
600A, 60A
Max. diameter of measured cable
30mm
DC voltage measuring range
1kV, 600V, 6V, 60V, 0.1...600mV
AC voltage measuring range
600V, 750V, 60V, 1mV...6V
AC current measuring accuracy
±(2.5% + 5 digit)
DC voltage measuring accuracy
±(0.8% + 1 digit)
Capacitance measuring range
1mF, 100nF, 1µF, 10µF, 100µF, 10mF, 60mF
DC current measuring accuracy
±(2.5% + 5 digit)
AC voltage measuring accuracy
±(1.2% + 5 digit)
Resistance measuring accuracy
±(1%+2 digit)
Gross weight 476.90 g
Documentation in English #1 Documentation in English #2 Documentation in English #3

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Meters and AC/DC Clamp Probes
