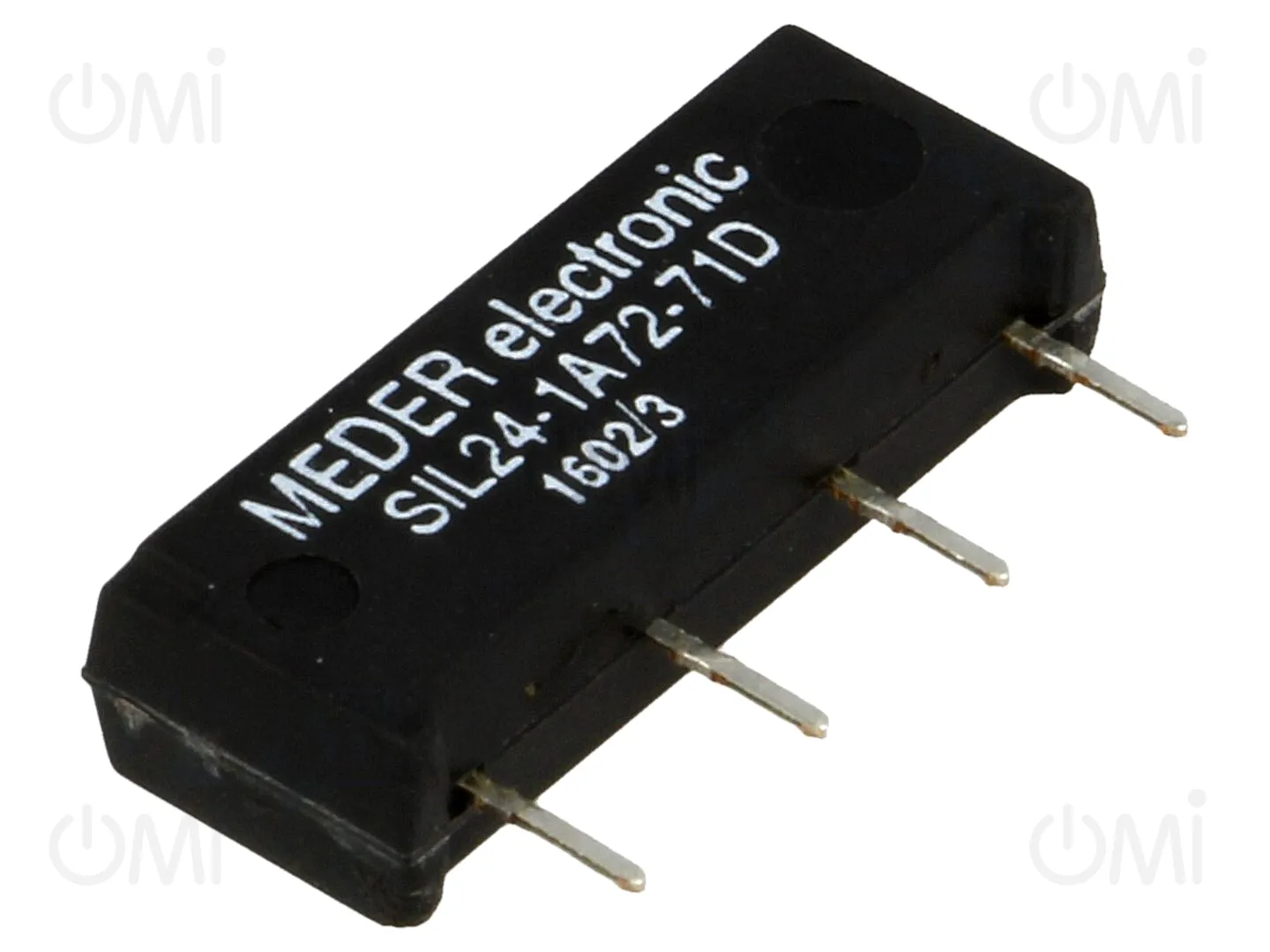

SIL24-1A72-71D MEDER

Details

SIL24-1A72-71D
  • SIL24-1A72-71D

Manufacturer product page MEDER

Relay: reed switch; SPST-NO; Ucoil: 24VDC; 1.25A; max.200VDC; 290mW

Manufacturer code: SIL24-1A72-71D

OMI code: 277911

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

1712 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 5.44
5+ 4.32
7+ 2.6
16+ 2.46

Price details
SIL24-1A72-71D

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 5.44
5+ 4.32
7+ 2.6
16+ 2.46

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
MEDER
Mounting
PCB
Operating temperature
-20...70°C
Case
SIL
Contacts configuration
SPST-NO
Body dimensions
19.2x5.08x7.62mm
Switched voltage
max. 200V AC, max. 200V DC
Terminal pitch
5.08mm
Type of relay
reed switch
Contact current max.
1.25A
Relay series
SIL
Coil resistance
2kΩ
Design
protection diode
Rated coil voltage
24V DC
Coil voltage min.
16.8V DC
Contact resistance
0.15Ω
Coil voltage max.
47V DC
Coil power consumption
290mW
Gross weight 1.57 g
Documentation in English #1 Documentation in English #2

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Reed Electromagnetic Relays
