GEN-30-110-1P230 TDK-LAMBDA

Details

GEN-30-110-1P230
  • GEN-30-110-1P230

Manufacturer product page TDK-LAMBDA

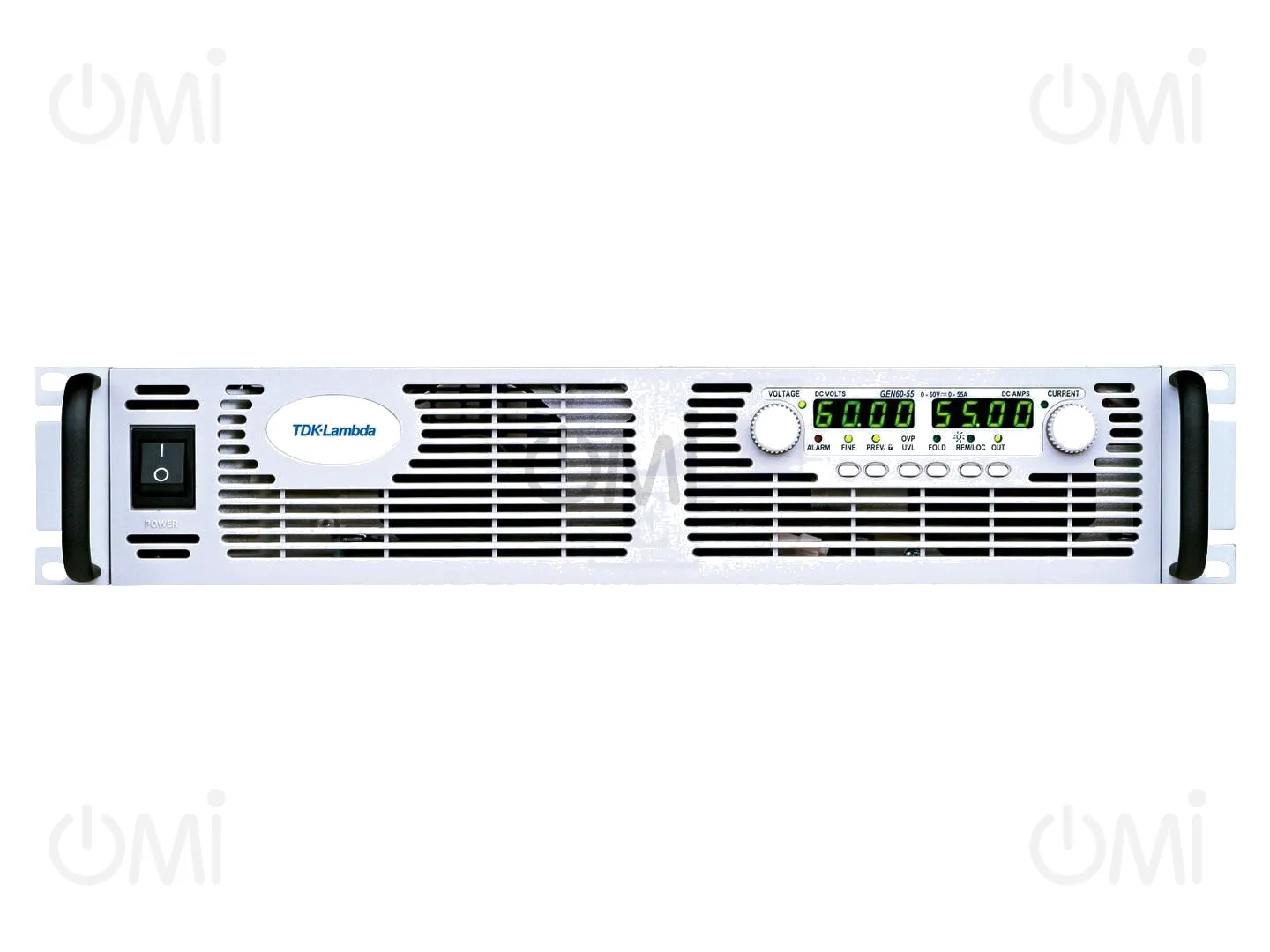

Power supply: programmable laboratory; Ch: 1; 0÷30VDC; 0÷110A

Manufacturer code: GEN-30-110-1P230

OMI code: 280802

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

2 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 4562.8

Price details
GEN-30-110-1P230

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 4562.8

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
TDK-LAMBDA
Mounting
rack 19"
Operating temperature
0...50°C
Manufacturer series
GEN
Output voltage
0...30V DC
Supply voltage
190...253V AC
Output current
0...110A
Interface
RS485, RS232
Number of channels
1
Maximum power
3.3kW
Kind of display used
LED x2
Measuring instrument features
automatic CV/CC crossover operation, Auto-Re-Start and Safe-Start function, front panel lockout, LabWindows driver, last setting memory, master/slave mode for parallel operation, parallel mode operation
Kind of input connector
terminal block
Type of power supply
programmable laboratory
Display parameters
4-digit
Output voltage resolution
0.6mV
Dimensions (W x H x D)
423x88x442.5mm
Output current resolution
2.2mA
Producer guarantee (months)
60
Voltage (regulated) ripple and noise
≤7Vrms, ≤55Vpp
Software
LabVIEW
Gross weight 16187.90 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Programmable Power Supplies
