PE30L0FL472KAB VISHAY

Details

PE30L0FL472KAB
  • PE30L0FL472KAB

Manufacturer product page VISHAY

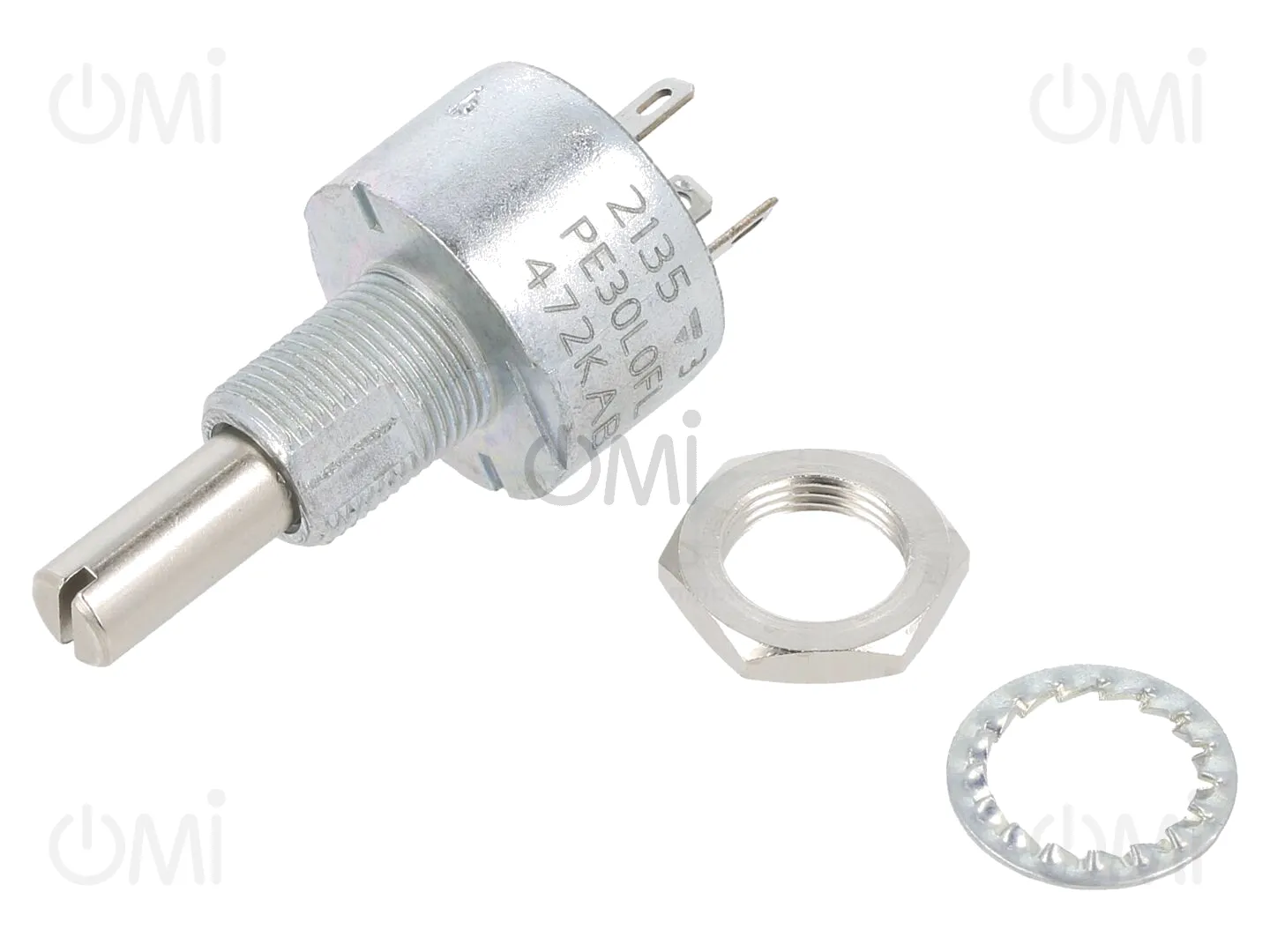

Potentiometer: shaft; single turn; 4.7kΩ; 3W; ±10%; 6mm; linear

Manufacturer code: PE30L0FL472KAB

OMI code: 282927

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

63 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 22.75
2+ 21.54
5+ 21.53

Price details
PE30L0FL472KAB

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 22.75
2+ 21.54
5+ 21.53

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
VISHAY
Mounting
on panel
Operating temperature
-55...125°C
IP rating
IP67
Power
3W
Leads
for soldering
Tolerance
±10%
Resistance
4.7kΩ
Max. operating voltage
300V
Thread length
12mm
Type of potentiometer
shaft
Characteristics
linear
Temperature coefficient
150ppm/°C
Min. insulation resistance
1TΩ
Mechanical rotation angle
300 ±5°
Electrical rotation angle
270 ±10°
Track material
cermet
Kind of potentiometer
single turn
Shaft diameter
6mm
Shaft length
25mm
Shaft surface
smooth
Potentiometer features
for industrial use, for military use
Gross weight 19.99 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Cermet single turn potentiometers

* All prices are net prices (excluding VAT) and do not include transportation costs, which will be included in the order amount. Transportation costs are available in the tab "Method and cost of delivery"

Last viewed items

RJS2R0E

RJS2R0E

Manufacturer: OHMITE

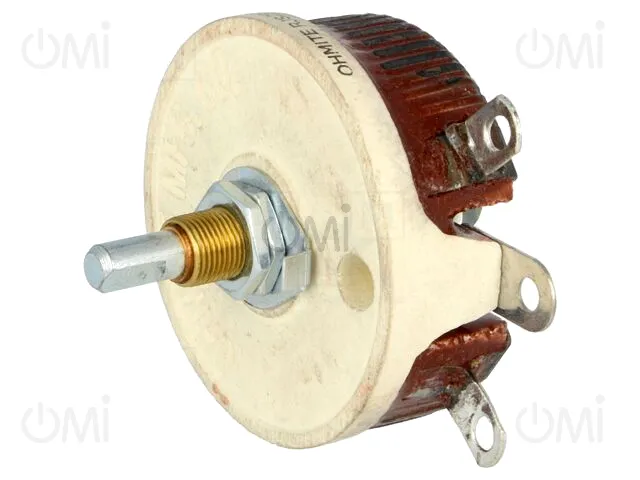

Potentiometer: shaft; single turn; 2Ω; 50W; 6.35mm; Shaft: D spring
