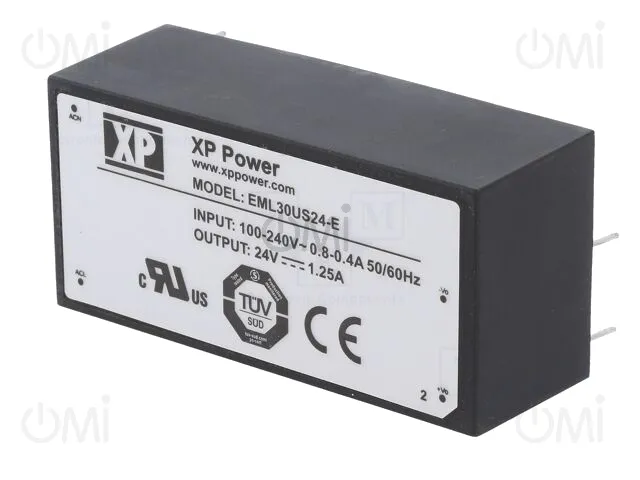

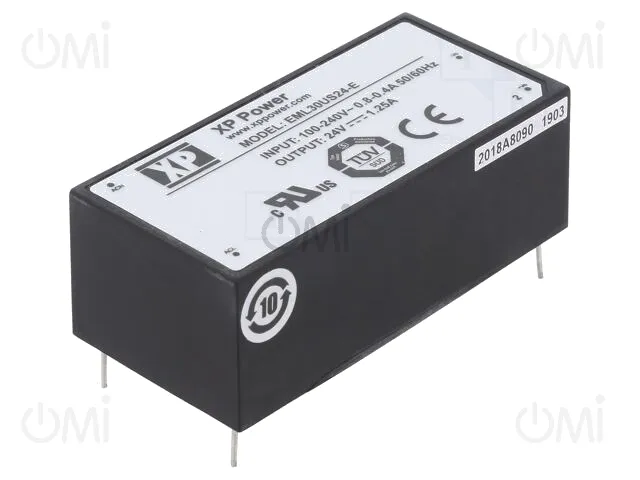

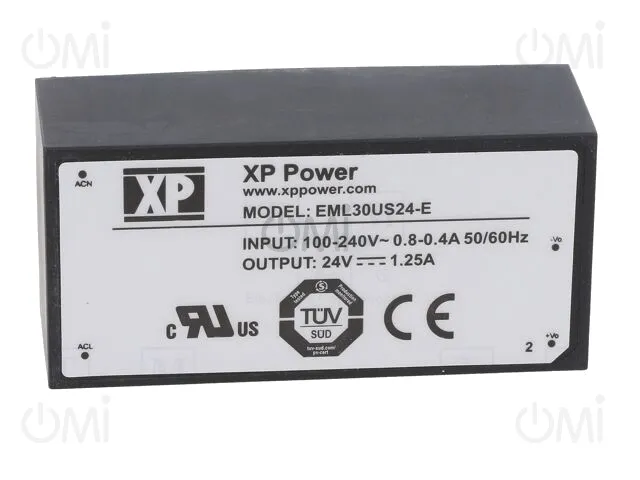

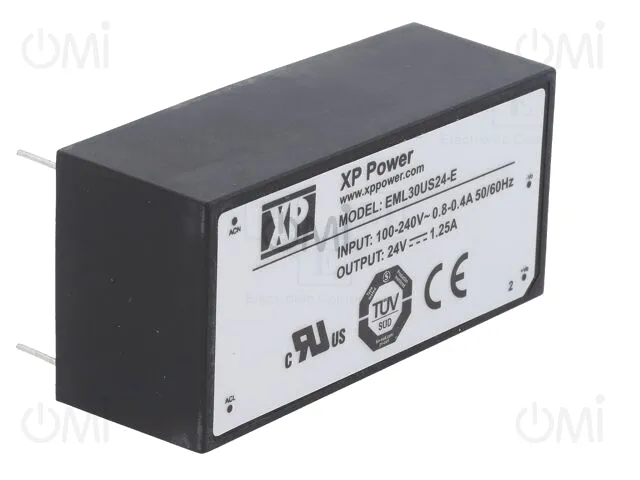

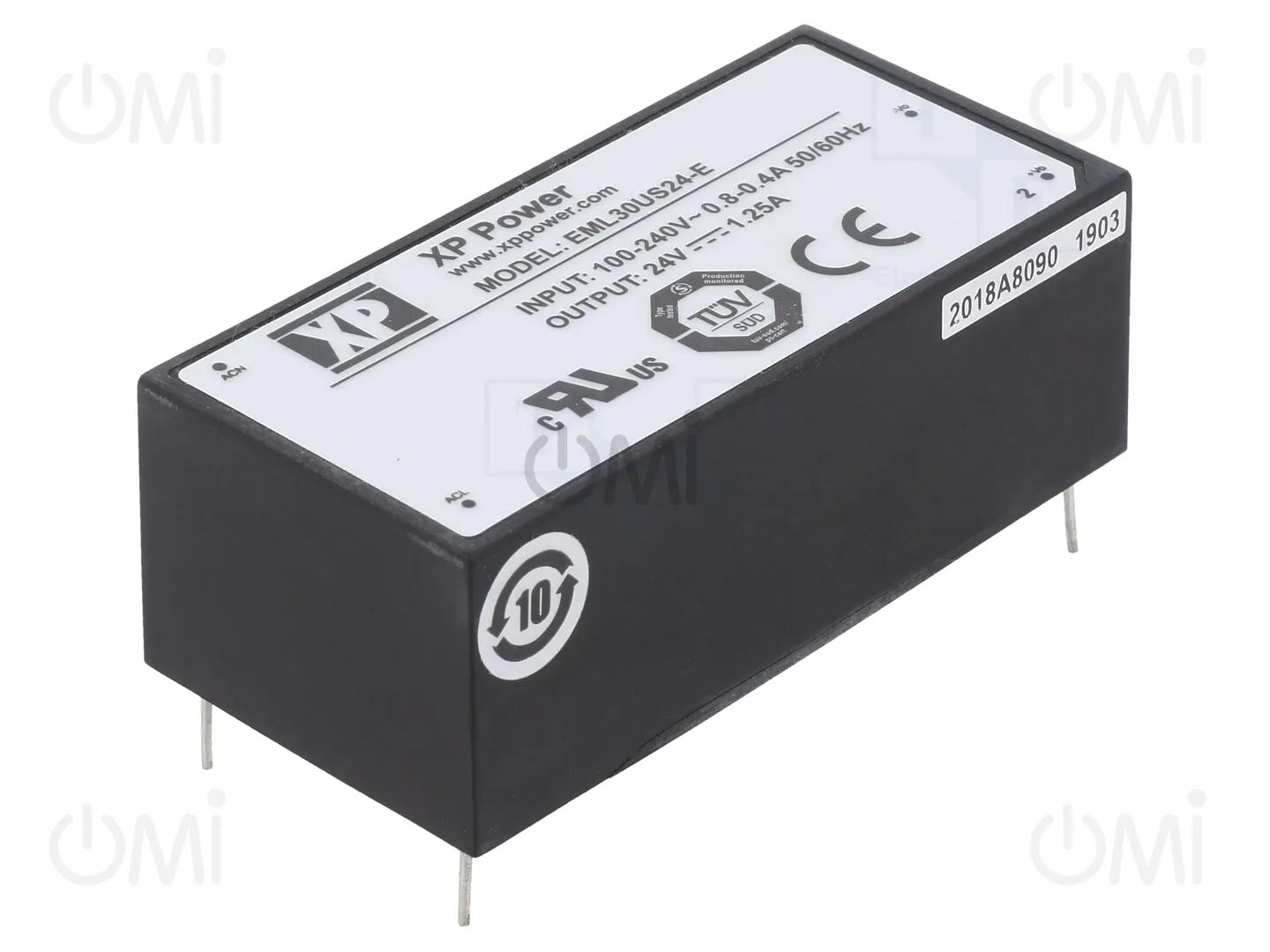

EML30US24-E XP POWER

Details

EML30US24-E
EML30US24-E
EML30US24-E
EML30US24-E
EML30US24-E
EML30US24-E
EML30US24-E
EML30US24-E
EML30US24-E
  • EML30US24-E
  • EML30US24-E
  • EML30US24-E
  • EML30US24-E
  • EML30US24-E
  • EML30US24-E
  • EML30US24-E
  • EML30US24-E
  • EML30US24-E

Manufacturer product page XP POWER

Converter: AC/DC; 30W; 85÷264VAC; Usup: 120÷370VDC; Uout: 24VDC

Manufacturer code: EML30US24-E

OMI code: 292848

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

1 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 53.96

Price details
EML30US24-E

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 53.96

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
XP POWER
Mounting
PCB
Operating temperature
-20...70°C
Power
30W
Type of converter
AC/DC
Manufacturer series
EML30
Output voltage
24V DC
Supply voltage
85...264V AC, 120...370V DC
Application
medical applications
Body dimensions
78.7x30x27.9mm
Output current
1.25A
Number of outputs
1
Insulation voltage
4kV
Electrical connection
THT
Switching frequency
70kHz
Efficiency
80%
Protection
short circuit protection SCP, anti-overvoltage OVP
Power consumption without load
<0.3W
Gross weight 154.84 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: PCB AC/DC converters
