R30N-3011-85-1012 RELPOL

Details

R30N-3011-85-1012
R30N-3011-85-1012
R30N-3011-85-1012
R30N-3011-85-1012
R30N-3011-85-1012
R30N-3011-85-1012
R30N-3011-85-1012
R30N-3011-85-1012
R30N-3011-85-1012
  • R30N-3011-85-1012
  • R30N-3011-85-1012
  • R30N-3011-85-1012
  • R30N-3011-85-1012
  • R30N-3011-85-1012
  • R30N-3011-85-1012
  • R30N-3011-85-1012
  • R30N-3011-85-1012
  • R30N-3011-85-1012

Manufacturer product page RELPOL

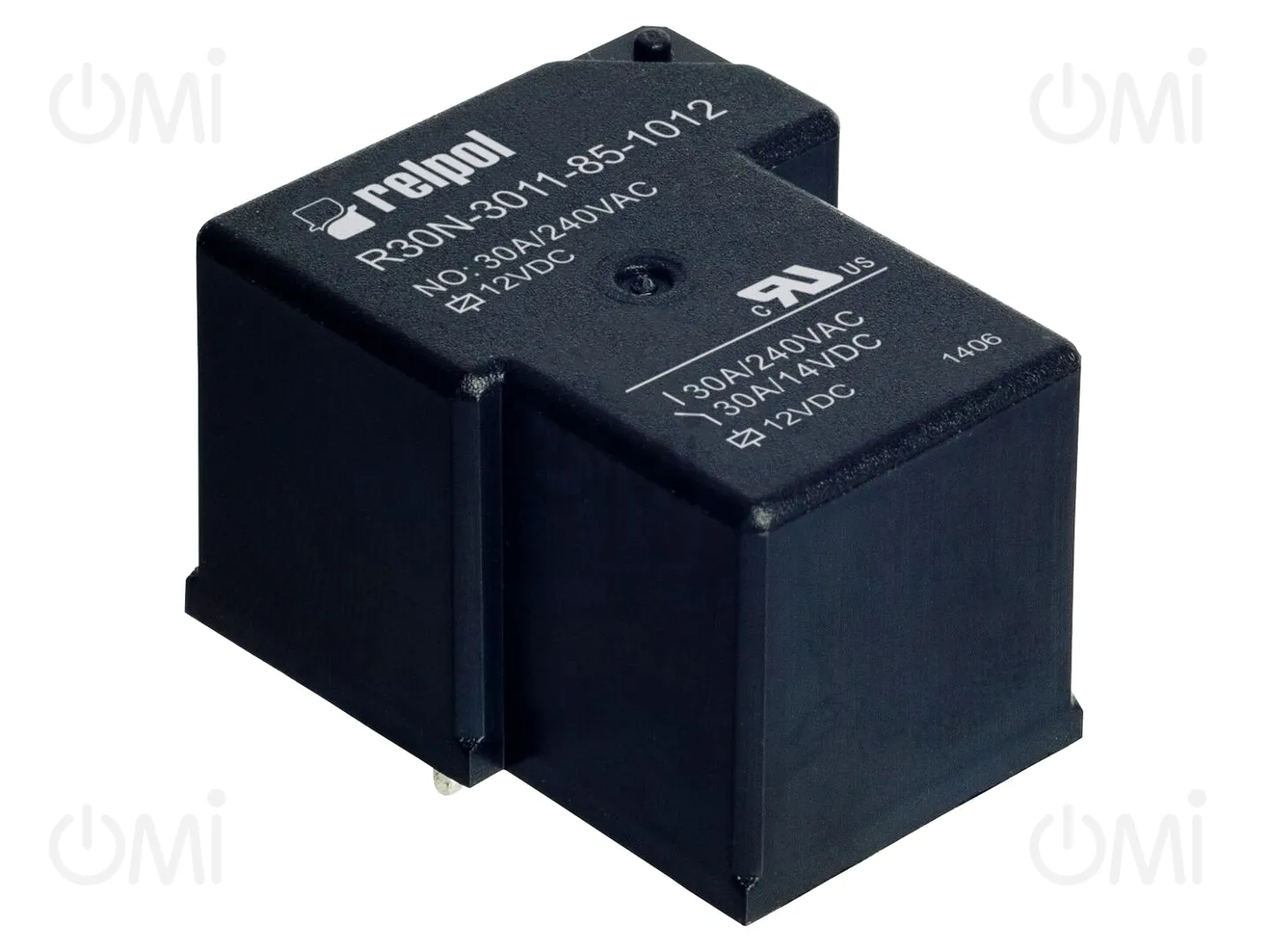

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 30A; Series: R30N; PCB

Manufacturer code: R30N-3011-85-1012

OMI code: 29819

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

296 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 6.61
5+ 5.98
6+ 3.66
12+ 3.47

Price details
R30N-3011-85-1012

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 6.61
5+ 5.98
6+ 3.66
12+ 3.47

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
RELPOL
Mounting
PCB
Operating temperature
-55...100°C
IP rating
IP64
Contacts configuration
SPDT
Body dimensions
32.5x27.6x20.5mm
Mechanical durability
100000000 cycles
Electrical life
1000000 cycles
Contact material
AgSnO<sub>2</sub>
Switched voltage
max. 110V DC, max. 300V AC
AC contacts rating @R
30A / 240V AC
DC contacts rating @R
30A / 14V DC
Type of relay
electromagnetic
Contact current max.
30A
Relay variant
power
Relay series
R30N
Coil resistance
160Ω
Rated coil voltage
12V DC
Operate time
15ms
OEM number
2614723
Contact resistance
30mΩ
Release time
10ms
Coil power consumption
0.9W
Gross weight 25.98 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Power Electromagnetic Relays
