09180107007 HARTING

Details

09180107007
  • 09180107007

Manufacturer product page HARTING

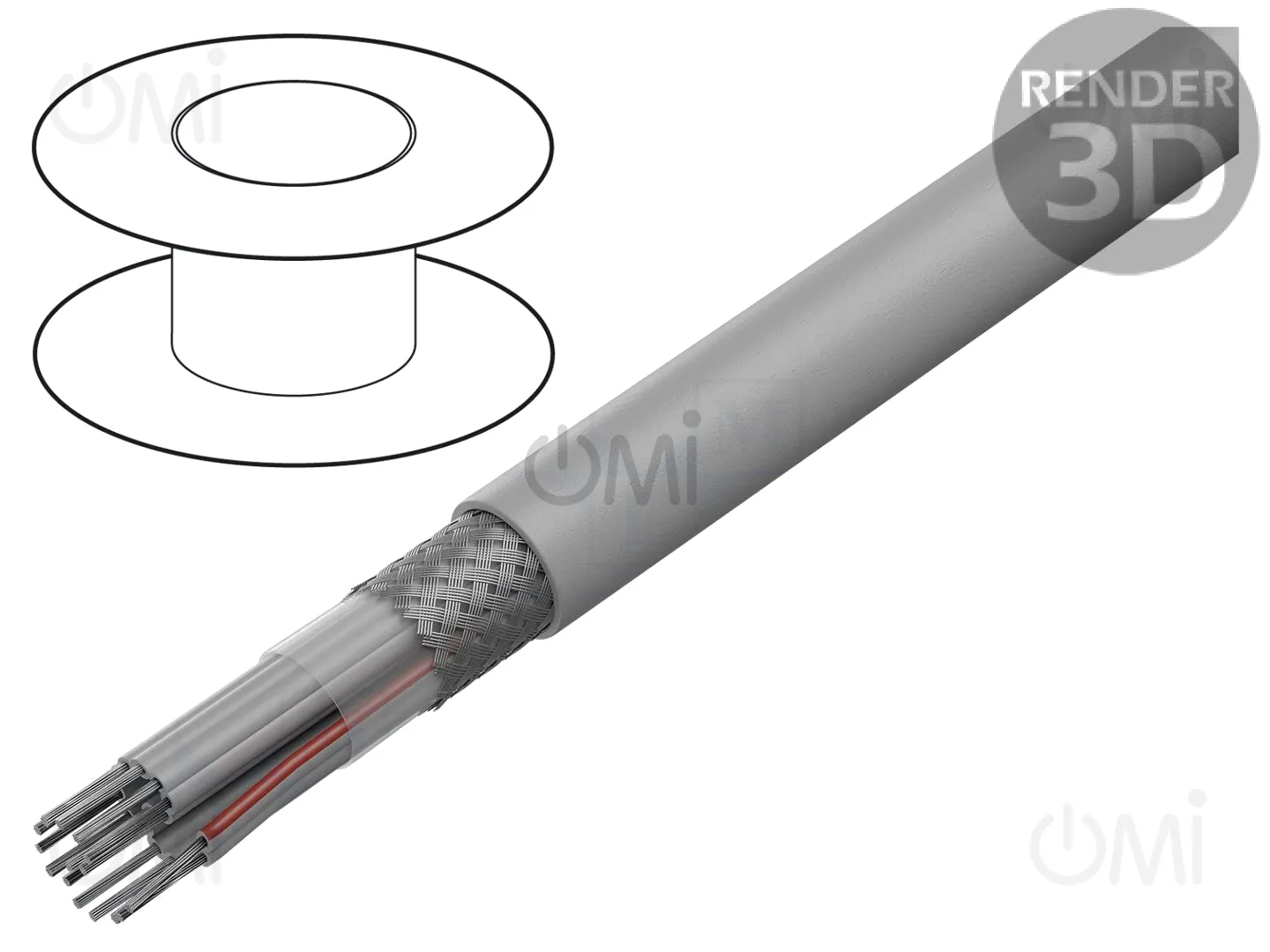

Wire: ribbon; round; 1.27mm; stranded; Cu; PVC; grey; 30.5m; 10x28AWG

Manufacturer code: 09180107007

OMI code: 299468

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 rol

Qty.
[rol] 		Price
[EUR/rol]
1+ 371.76

Price details
09180107007

Qty.
[rol] 		Price
[EUR/rol]
1+ 371.76

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
HARTING
Operating temperature
-20...75°C
Conform to the norm
UL 1581, UL 1061, UL CL2
Wire insulation material
PVC
Type of wire
ribbon
Number of cores
10
Insulation colour
grey
A dimension
12.7mm
Ribbon cable pitch
1.27mm
Kind of core
Cu, tinned
Shield structure
Al-PET foil, tinned copper braid, shielded twofold
Rated voltage
300V
Package contents
30.5m
Core diameter
28AWG
Core structure
stranded
B dimension
11.43mm
Cable structure
10x28AWG
Wire cross-section shape
round
Gross weight 2250.20 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Ribbon Cables - Single Color
