3590S-2-102L BOURNS

Details

3590S-2-102L
3590S-2-102L
3590S-2-102L
3590S-2-102L
3590S-2-102L
3590S-2-102L
3590S-2-102L
3590S-2-102L
3590S-2-102L
  • 3590S-2-102L
  • 3590S-2-102L
  • 3590S-2-102L
  • 3590S-2-102L
  • 3590S-2-102L
  • 3590S-2-102L
  • 3590S-2-102L
  • 3590S-2-102L
  • 3590S-2-102L

Manufacturer product page BOURNS

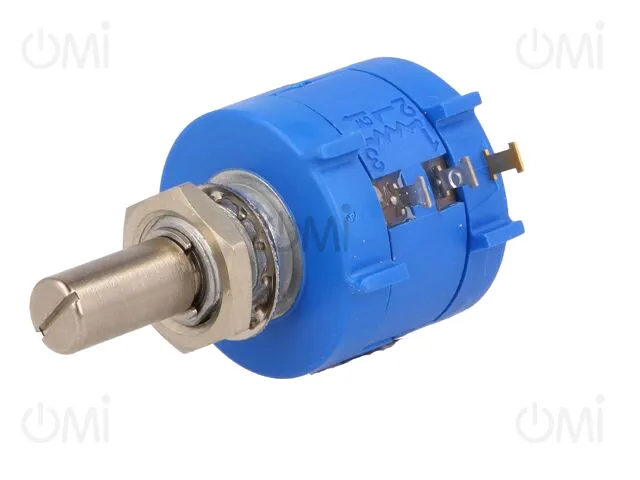

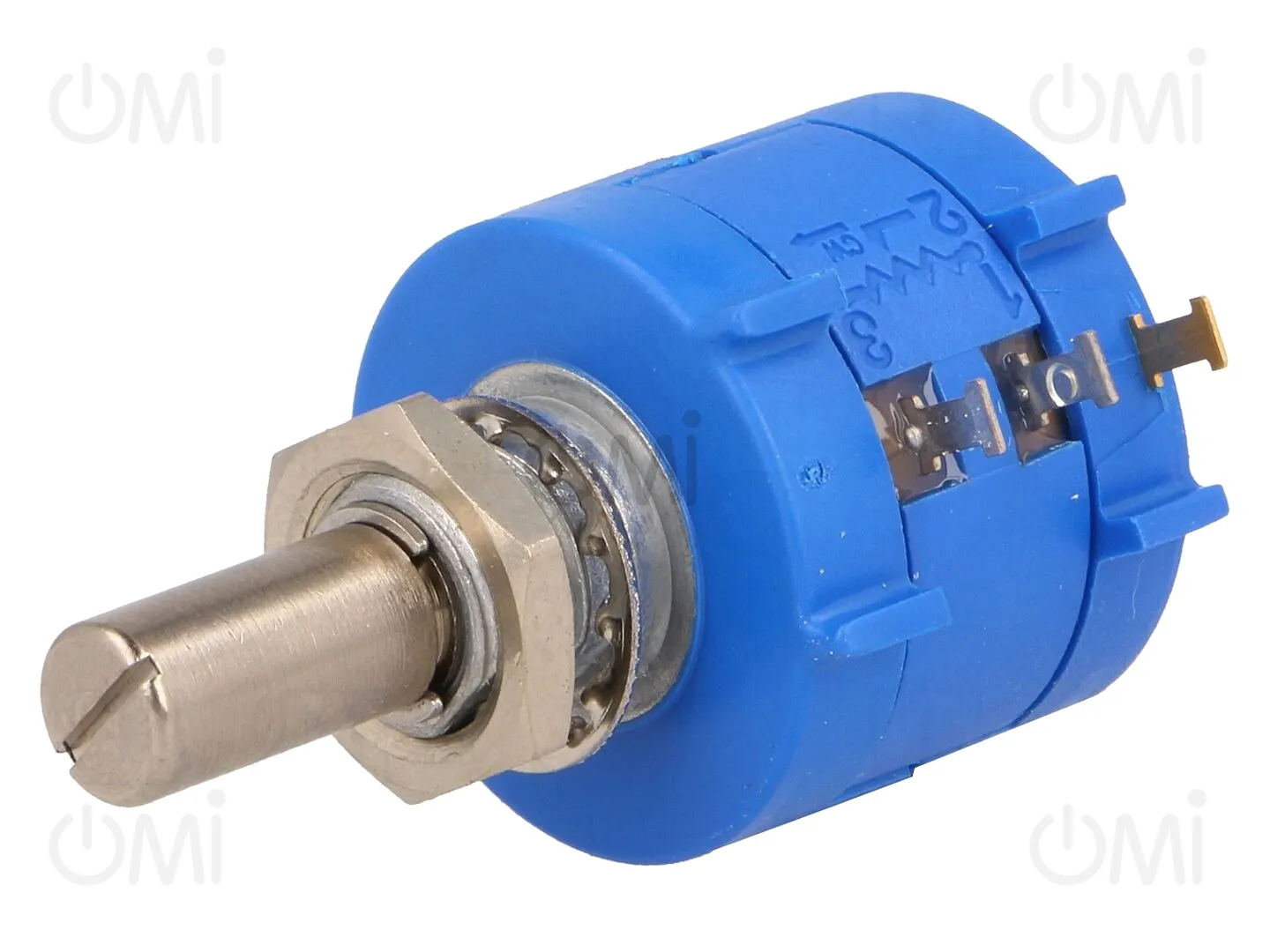

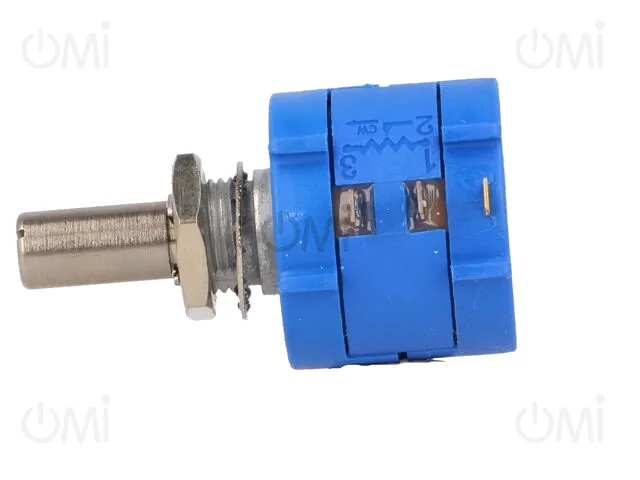

Potentiometer: shaft; multiturn; 1kΩ; 2W; ±5%; 6.35mm; linear; IP40

Manufacturer code: 3590S-2-102L

OMI code: 306075

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

104 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 21.89
2+ 16.28
3+ 15.9

Price details
3590S-2-102L

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 21.89
2+ 16.28
3+ 15.9

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
BOURNS
Operating temperature
-40...125°C
IP rating
IP40
Power
2W
Body dimensions
Ø22.22x18.6mm
Tolerance
±5%
Resistance
1kΩ
Thread length
8mm
Type of potentiometer
shaft
Characteristics
linear
Temperature coefficient
50ppm/°C
Min. insulation resistance
1GΩ
Track material
wirewound
Kind of potentiometer
multiturn
Shaft diameter
6.35mm
Shaft length
12.6mm
Linearity tolerance
±0.25%
Shaft surface
smooth
Potentiometer features
precise
L shaft length
20.6mm
Number of electrical turns
10
Shaft material
metal
Gross weight 19.75 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Wire multiturn potentiometers
