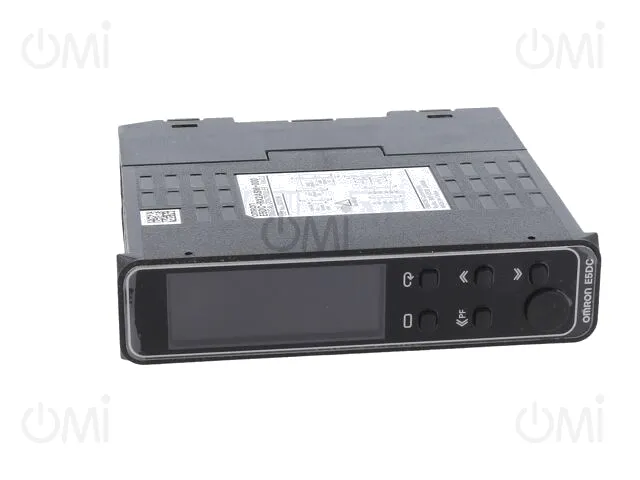

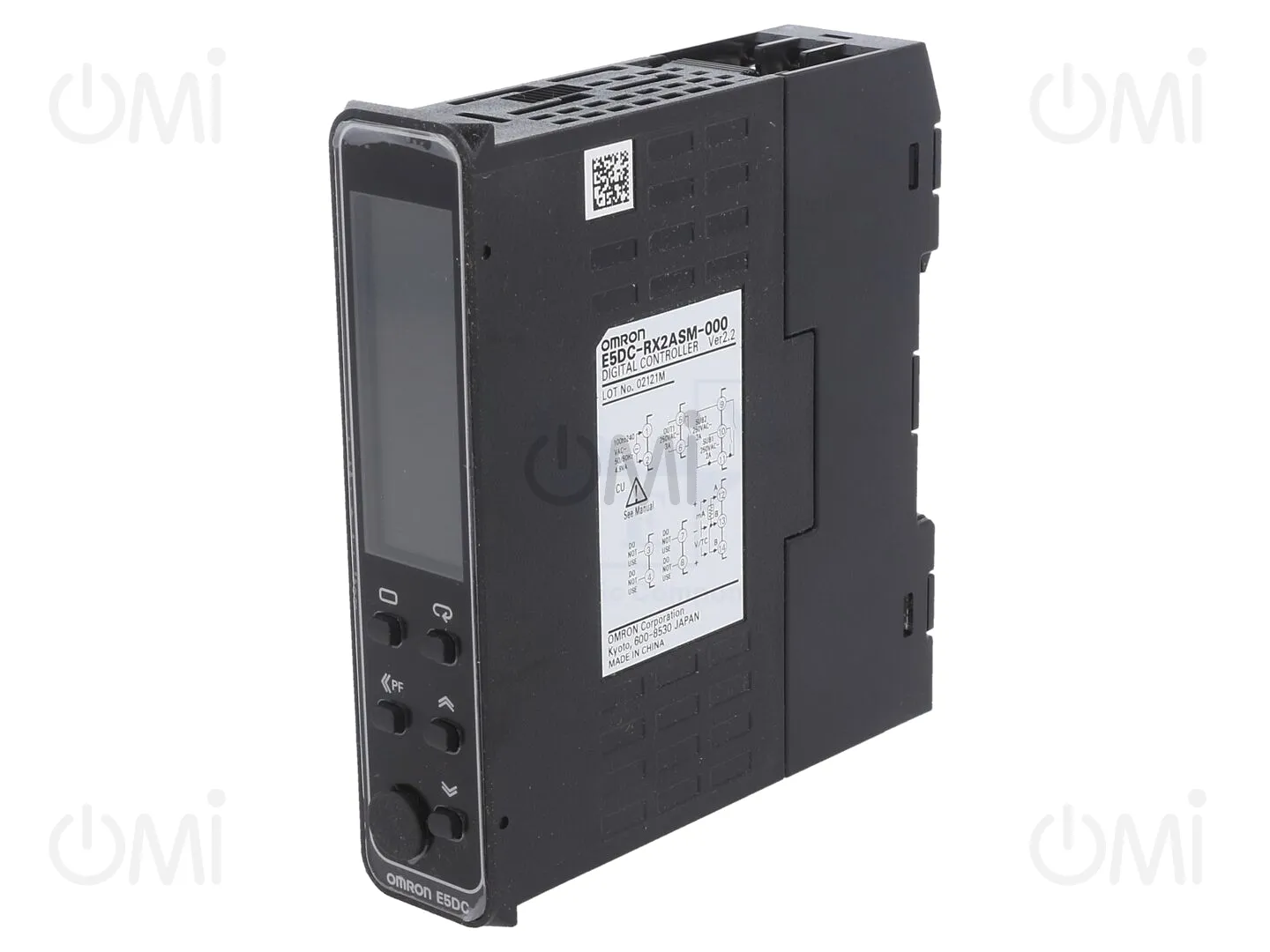

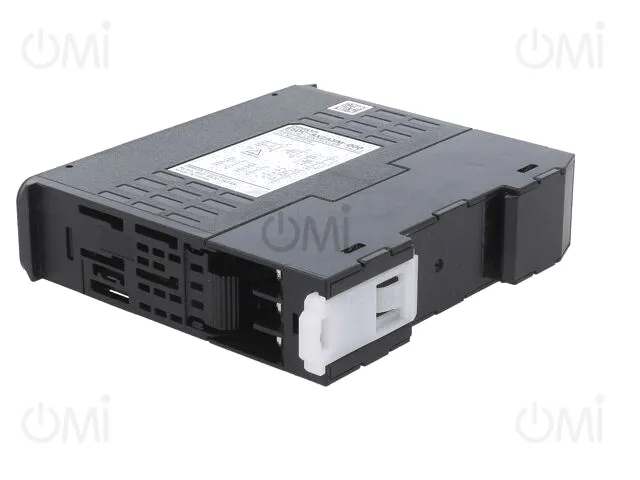

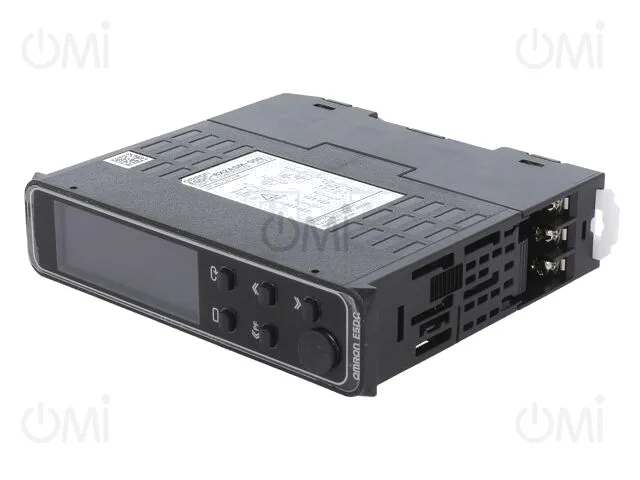

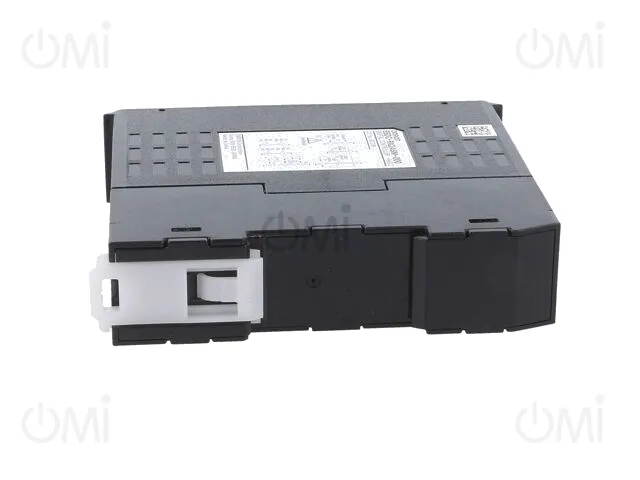

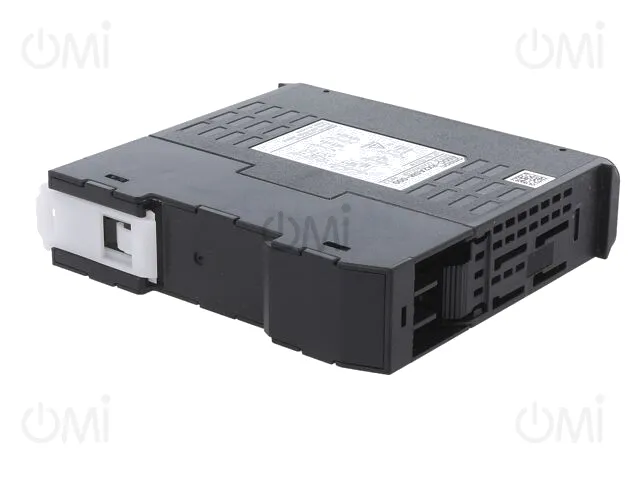

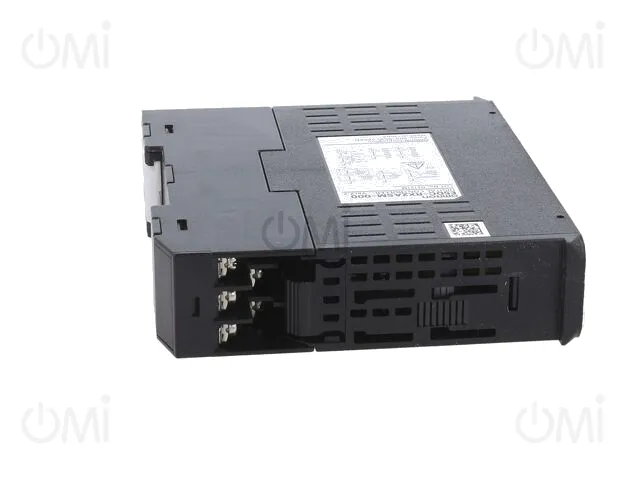

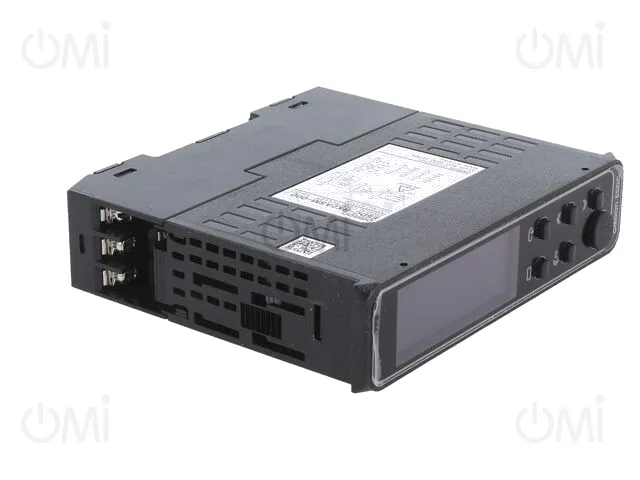

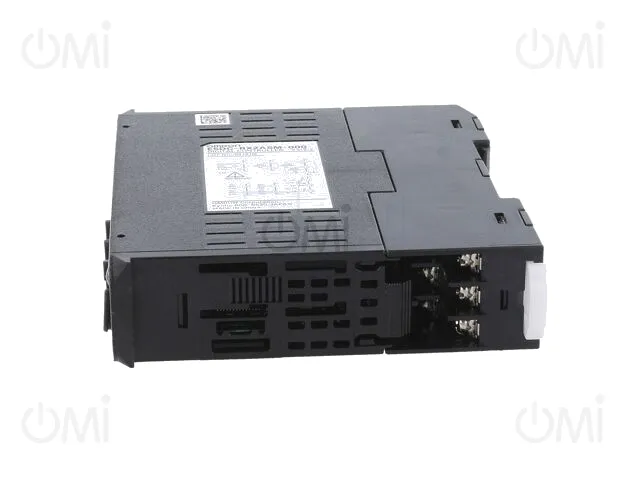

E5DC-RX2ASM-000 OMRON

Details

E5DC-RX2ASM-000
E5DC-RX2ASM-000
E5DC-RX2ASM-000
E5DC-RX2ASM-000
E5DC-RX2ASM-000
E5DC-RX2ASM-000
E5DC-RX2ASM-000
E5DC-RX2ASM-000
E5DC-RX2ASM-000
  • E5DC-RX2ASM-000
  • E5DC-RX2ASM-000
  • E5DC-RX2ASM-000
  • E5DC-RX2ASM-000
  • E5DC-RX2ASM-000
  • E5DC-RX2ASM-000
  • E5DC-RX2ASM-000
  • E5DC-RX2ASM-000
  • E5DC-RX2ASM-000

Manufacturer product page OMRON

Module: regulator; temperature; SPST-NO; OUT 2: SPST-NO; 250VAC/2A

Manufacturer code: E5DC-RX2ASM-000

OMI code: 311158

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

3 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 184.93
5+ 178.99

Price details
E5DC-RX2ASM-000

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 184.93
5+ 178.99

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
OMRON
Mounting
for DIN rail mounting
Operating temperature
-10...55°C
IP rating
IP66 (from the front)
Supply voltage
100...240V AC
Body dimensions
22.5x96x85mm
Type of module
regulator
Kind of display used
LCD
Kind of output 1
SPST-NO
The programming method
keypad
Additional functions
heating or cooling control
Controlled parameter
temperature
Kind of temperature sensor
JPt100, Pt100, thermocouple B, thermocouple C, thermocouple E, thermocouple J, thermocouple K, thermocouple L, thermocouple N, thermocouple PLII, thermocouple R, thermocouple S, thermocouple T, thermocouple U
Regulation for output 1
ON-OFF, 2PID
Output 1 electrical parameters
250V AC / 3A
Controlled parameter range
-1999...9999
Input 1 properties
analogue voltage, current analog, thermocouple
Display height 1
8.5mm
Display 2 height
8mm
Kind of output 2
SPST-NO
Kind of output 3
SPST-NO
Output 2 electrical parameters
250V AC / 2A
Output 3 electrical parameters
250V AC / 2A
Gross weight 177.30 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Temperature Regulators
