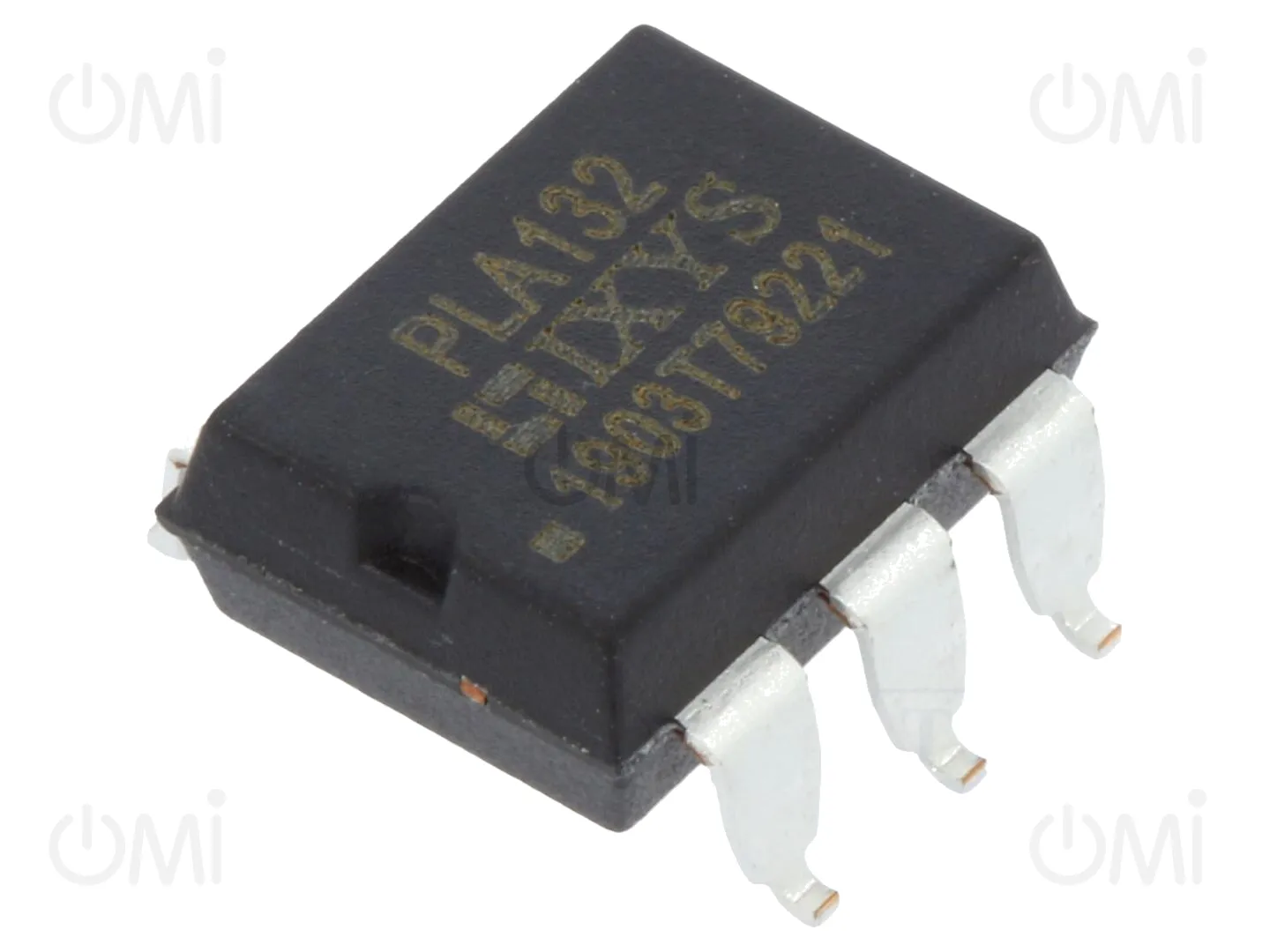

PLA132S IXYS

Details

PLA132S
  • PLA132S

Manufacturer product page IXYS

Relay: solid state; SPST-NO; Icntrl max: 50mA; 600mA; max.60VAC

Manufacturer code: PLA132S

OMI code: 317438

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

143 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 14.26
3+ 9.44
5+ 8.93

Price details
PLA132S

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 14.26
3+ 9.44
5+ 8.93

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
IXYS
Mounting
SMT
Operating temperature
-40...85°C
Max. operating current
0.6A
Manufacturer series
OptoMOS
Case
DIP6
Contacts configuration
SPST-NO
Body dimensions
8.38x6.35x3.3mm
Switched voltage
max. 60V DC, max. 60V AC
Turn-on time
5ms
Insulation voltage
3.75kV
Type of relay
solid state
On-state resistance
1Ω
Relay variant
1-phase, current source
Kind of output
MOSFET
Turn-off time
2ms
Control current max.
50mA
Gross weight 0.38 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: One Phase Solid State Relays
