RSDW20G-15 MEAN WELL

Details

RSDW20G-15
RSDW20G-15
RSDW20G-15
RSDW20G-15
RSDW20G-15
RSDW20G-15
RSDW20G-15
RSDW20G-15
RSDW20G-15
  • RSDW20G-15
  • RSDW20G-15
  • RSDW20G-15
  • RSDW20G-15
  • RSDW20G-15
  • RSDW20G-15
  • RSDW20G-15
  • RSDW20G-15
  • RSDW20G-15

Manufacturer product page MEAN WELL

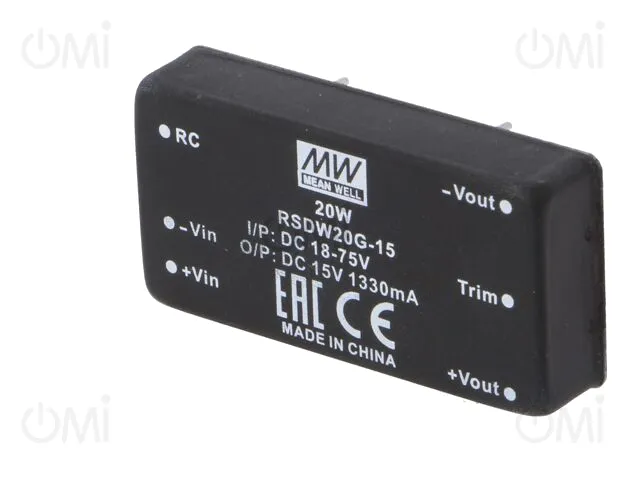

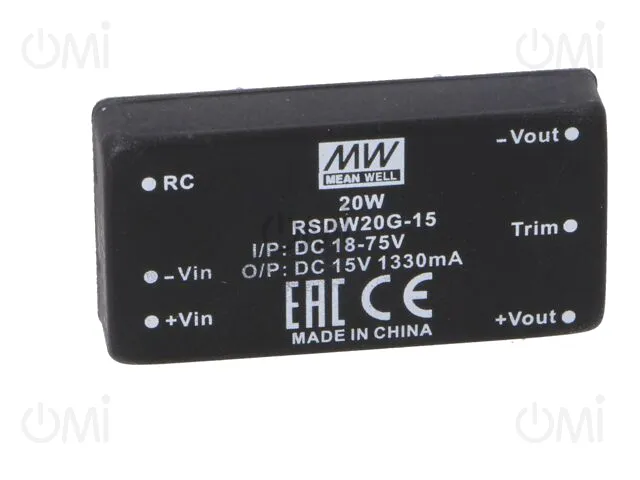

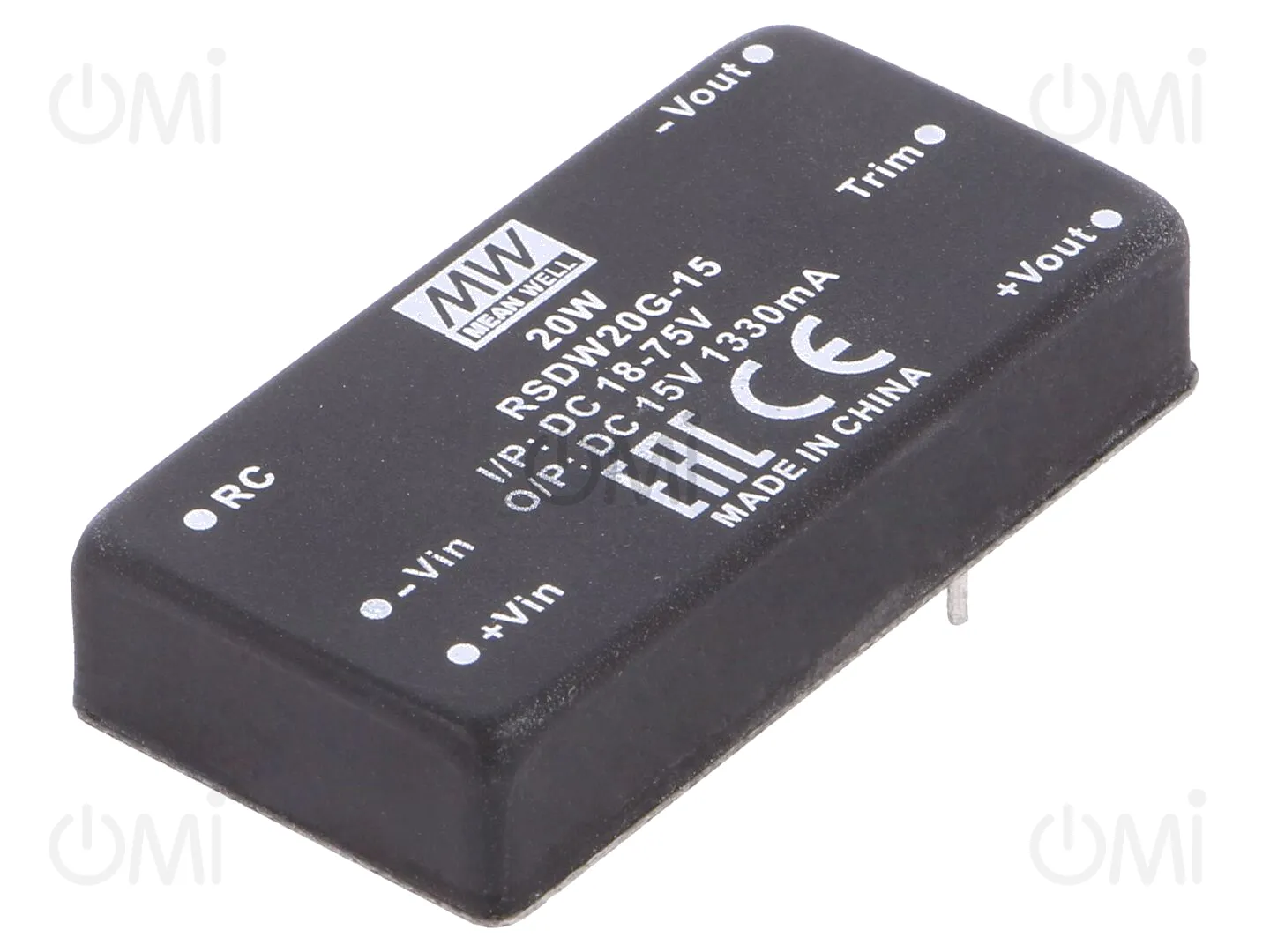

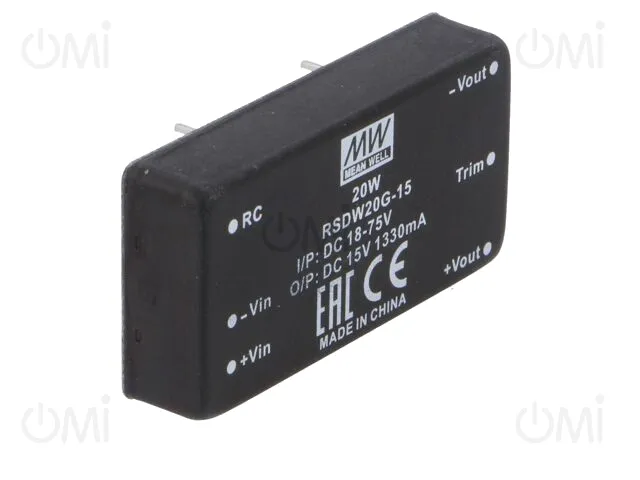

Converter: DC/DC; 20W; Uin: 18÷75V; Uout: 15VDC; Iout: 1330mA; 350kHz

Manufacturer code: RSDW20G-15

OMI code: 320666

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

2 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 33.2
3+ 31.45

Price details
RSDW20G-15

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 33.2
3+ 31.45

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
MEAN WELL
Mounting
THT
Operating temperature
-40...85°C
Power
20W
Type of converter
DC/DC
Manufacturer series
RSDW20
Output voltage
15V DC
Case
2"x1", DIP
Body dimensions
50.8x25.4x10.2mm
Output current
1.33A
Number of outputs
1
Insulation voltage
1.5kV DC
Input voltage
18...75V
Switching frequency
350kHz
Efficiency
90%
Protection
short circuit protection SCP, anti-overload OPP, anti-overvoltage OVP, undervoltage UVP
Gross weight 33.87 g
Documentation in English #1
