4304.5085 SCHURTER

Details

4304.5085
4304.5085
4304.5085
4304.5085
4304.5085
4304.5085
4304.5085
4304.5085
4304.5085
  • 4304.5085
  • 4304.5085
  • 4304.5085
  • 4304.5085
  • 4304.5085
  • 4304.5085
  • 4304.5085
  • 4304.5085
  • 4304.5085

Manufacturer product page SCHURTER

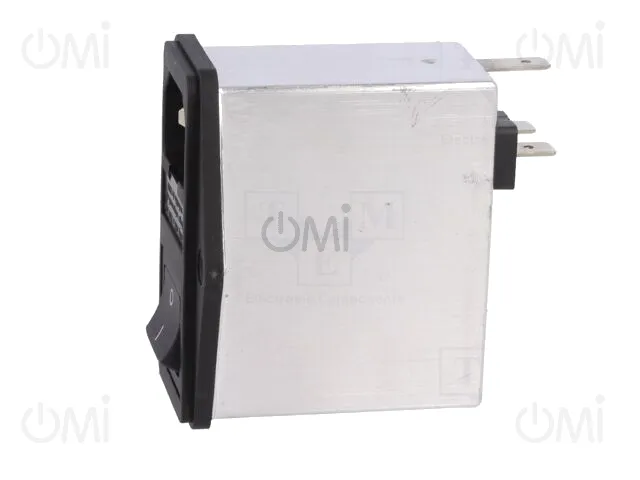

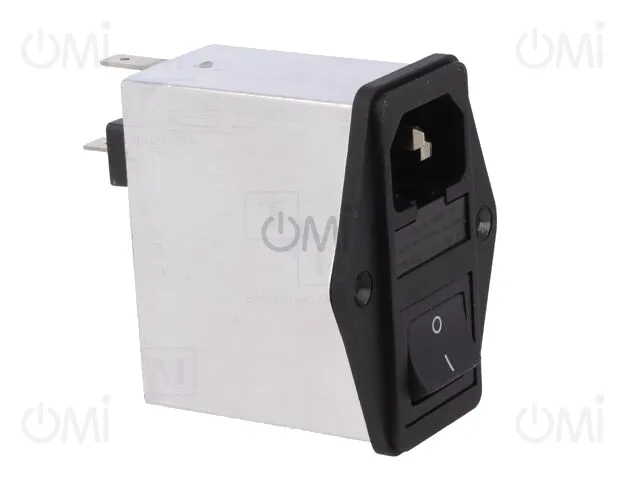

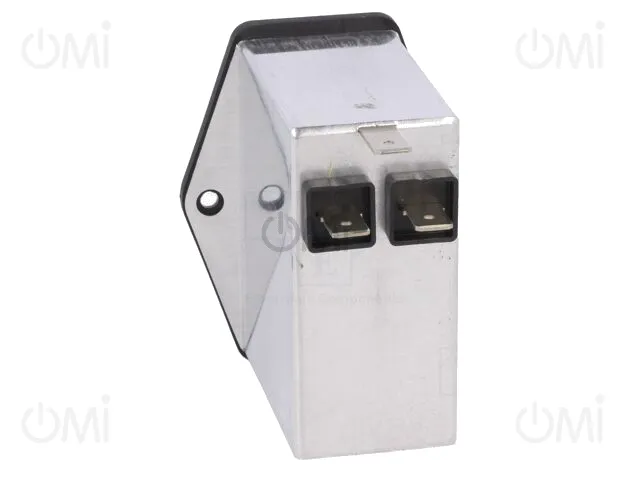

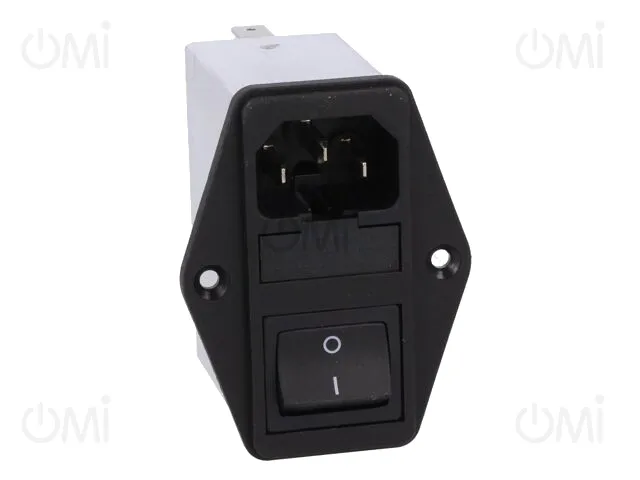

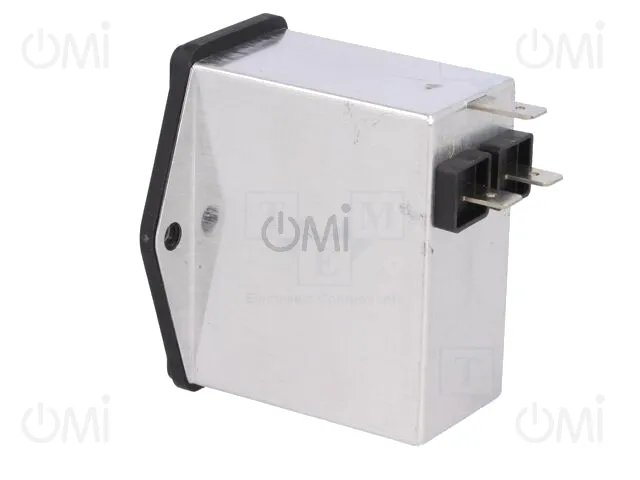

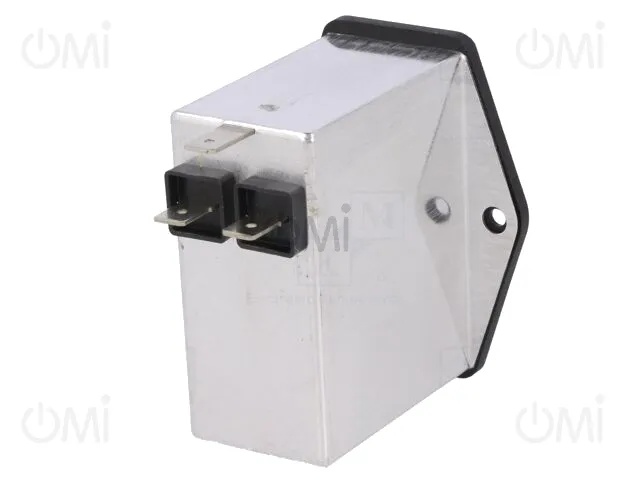

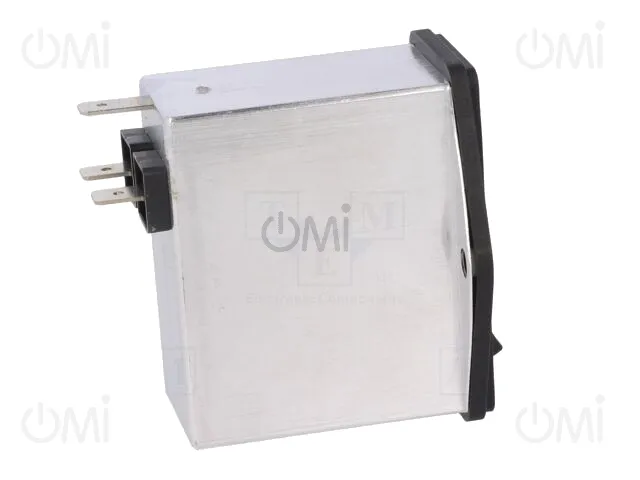

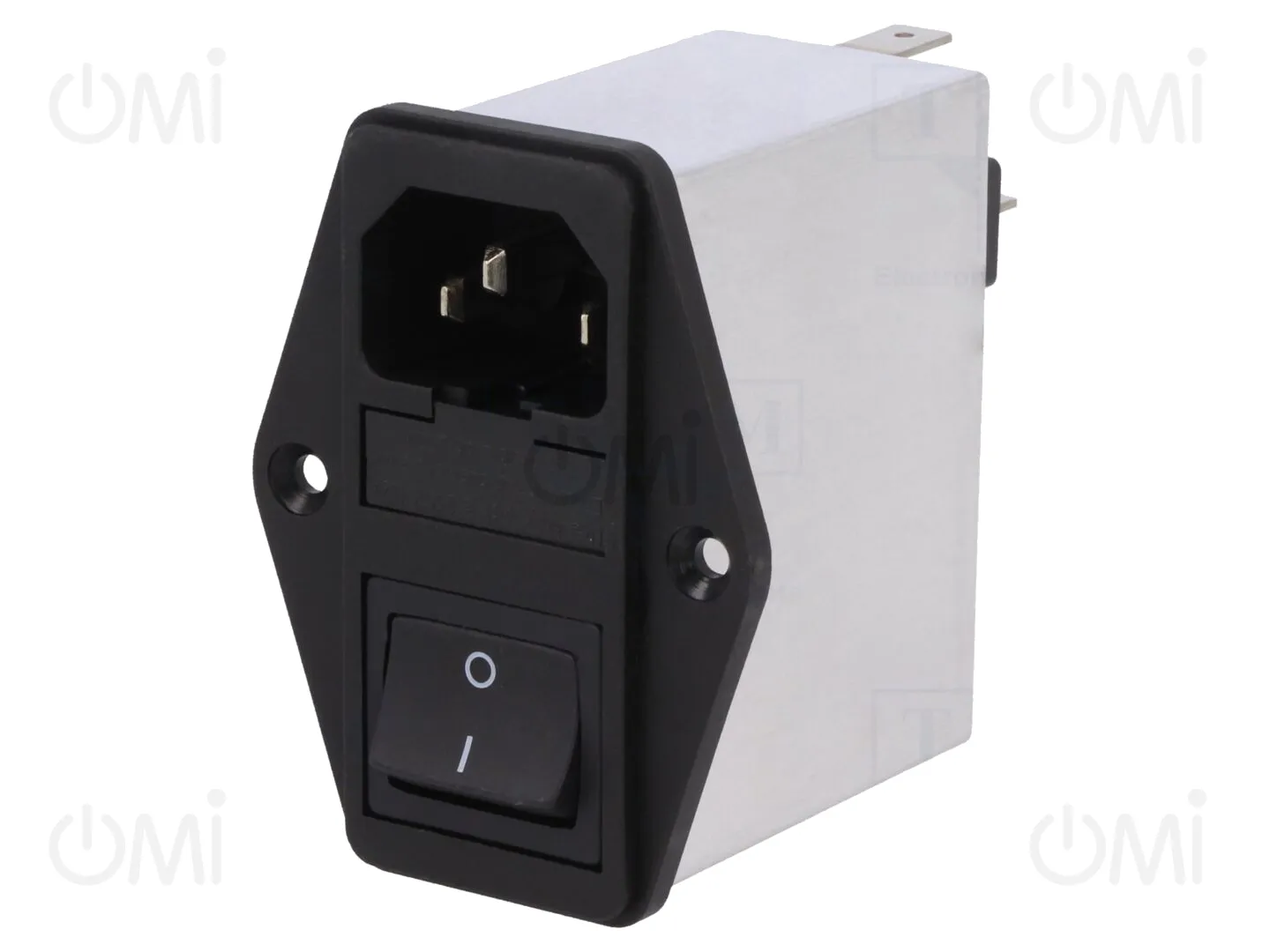

Connector: AC supply; socket; male; 10A; 250VAC; IEC 60320; C14 (E)

Manufacturer code: 4304.5085

OMI code: 322616

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

17 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 45.21

Price details
4304.5085

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 45.21

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
SCHURTER
Operating temperature
-25...85°C
Current rating
10A
Leads
connectors 6,3x0,8mm
Connector series
FKID
Application
medical applications
Kind of connector
male
Resistance
1MΩ
Inductance
1.5mH
Enclosure material
aluminium
Connector
socket
Fuse size
5x20mm
Connector variant
C14 (E)
Electrical mounting
6.3mm connectors
Mechanical mounting
screw, for panel mounting, flange (2 holes)
Type of connector
AC supply
Capacitance Cx
68nF
Standard
IEC 60320
Rated voltage
250V AC, 0.25kV
Design
on/off switch, filter, fuse x2
Capacitance Cy
1.5F
Gross weight 130.03 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: IEC 60320 connectors
