P 1402 PEAKTECH

Details

P 1402
  • P 1402

Manufacturer product page PEAKTECH

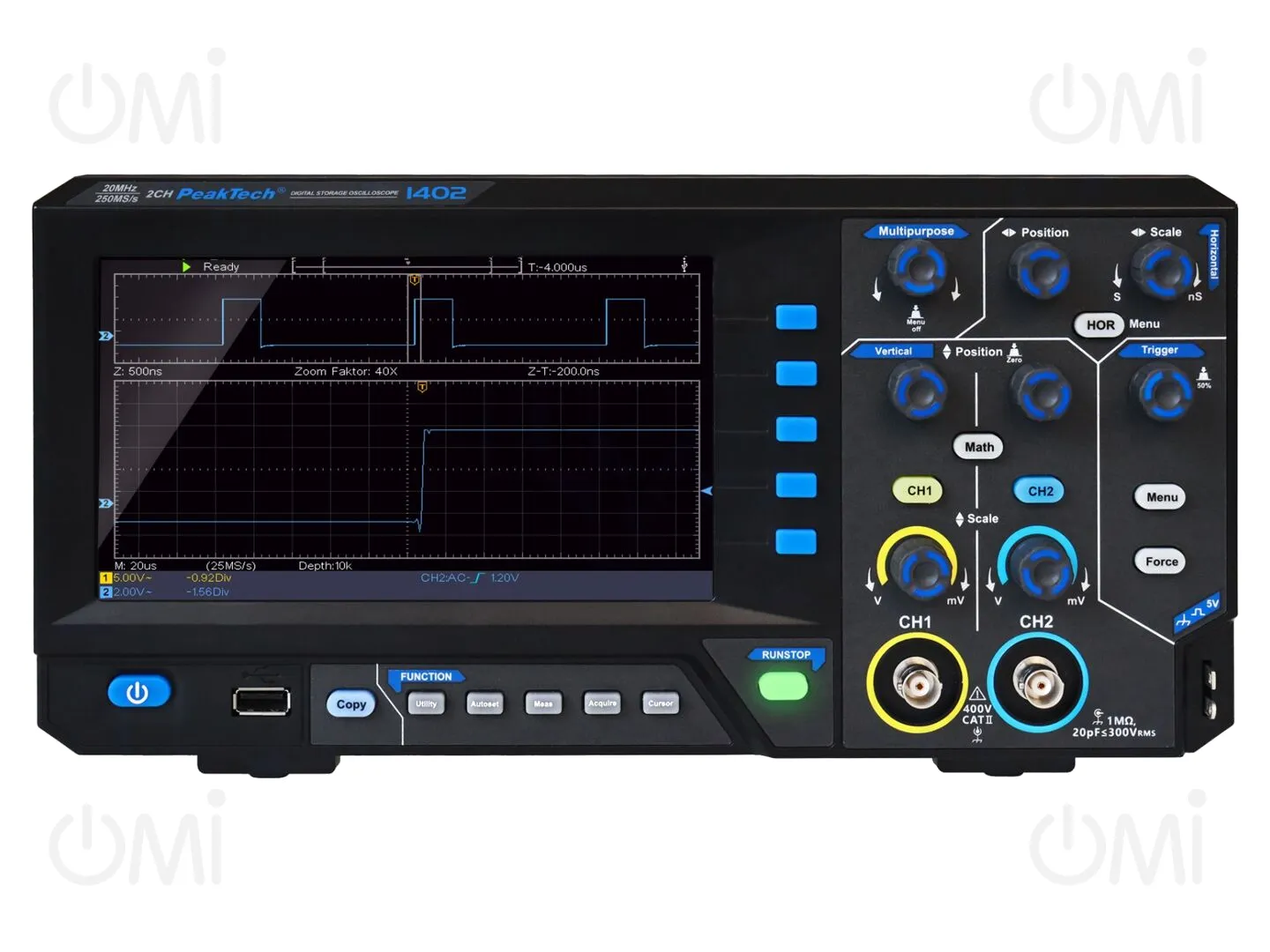

Oscilloscope: digital; DSO; Ch: 2; 20MHz; 250Msps; 10kpts; automatic

Manufacturer code: P 1402

OMI code: 324237

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

3 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 207.74
3+ 200.28

Price details
P 1402

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 207.74
3+ 200.28

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
PEAKTECH
Operating temperature
0...40°C
Supply voltage
100...240V AC
Body dimensions
301x152x70mm
Power consumption
15W
Interface
USB
Number of channels
2
Kind of display used
LCD TFT 7"
Standard equipment
USB cable, mains cable, oscilloscope probe x2
Measuring instrument features
mathematical functions: addition, subtraction, division, multiplication and FFT
Input impedance
1MΩ/20pF
Display resolution
800x480
Plug variant
EU
Software
included
Sampling
250Msps
Band
20MHz
Trigger
rising-edge, falling-edge, video signal, alternate
Type of oscilloscope
digital
Input coupling
AC, DC, GND
Vertical resolution
8bit
Trigger modes
automatic
Trigger coupling
DC
Max. input voltage
400V
Rise time
≤17.5ns
Input sensitivity
5mV/div...5V/div
Time base
5n...1ks/div
Memory record length
10kpts
Trigger source
CH1, CH2
Kind of oscilloscope
DSO
Horizontal accuracy
±3%
Gross weight 1523.70 g
Documentation in English #1 Documentation in English #2 Documentation in English #3

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Digital Oscilloscopes
