DC100MAX FISNAR

Details

DC100MAX
DC100MAX
DC100MAX
DC100MAX
DC100MAX
DC100MAX
DC100MAX
DC100MAX
DC100MAX
  • DC100MAX
  • DC100MAX
  • DC100MAX
  • DC100MAX
  • DC100MAX
  • DC100MAX
  • DC100MAX
  • DC100MAX
  • DC100MAX

Manufacturer product page FISNAR

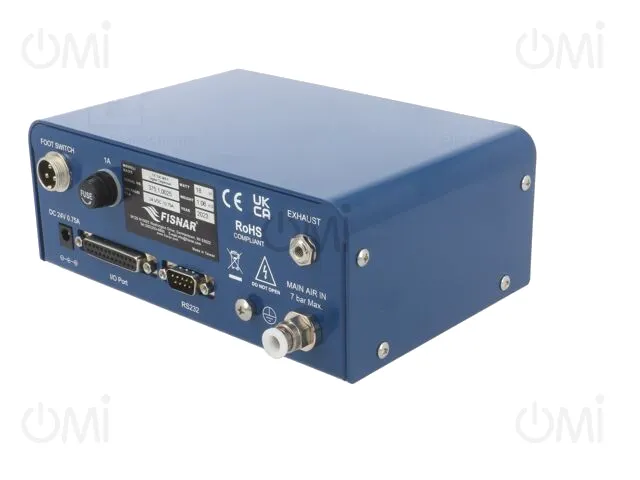

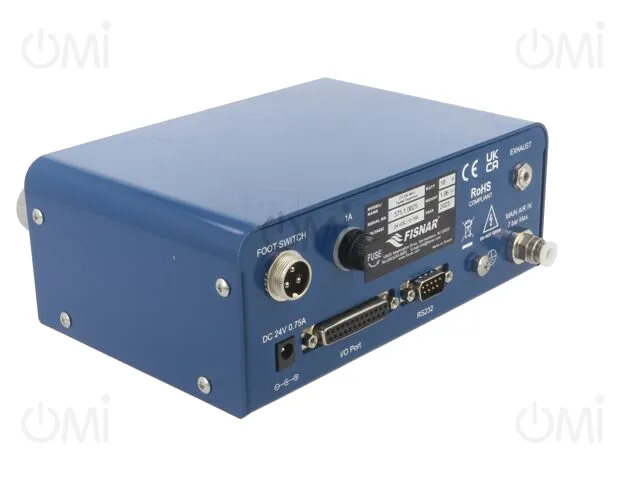

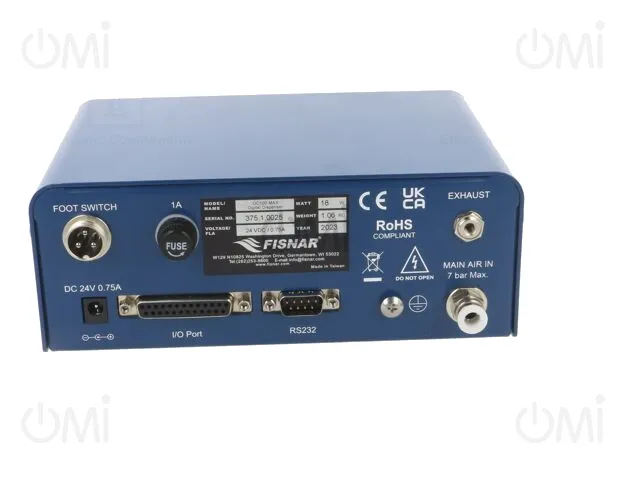

Digital dispenser; Operating modes: continuous,interrupted

Manufacturer code: DC100MAX

OMI code: 32552

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 1593.59

Price details
DC100MAX

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 1593.59

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
FISNAR
Operating temperature
10...40°C
Supply voltage
100...240V AC
Related items
FIS-BARQX-3R, FIS-BARQX-5R, FIS-BARQX-10R, FIS-BARQX-30R, FIS-BARQX-55R
Operating voltage
24V DC
Operating modes
continuous, interrupted
Interface
RS232, I/O Port
Kind of display used
LCD

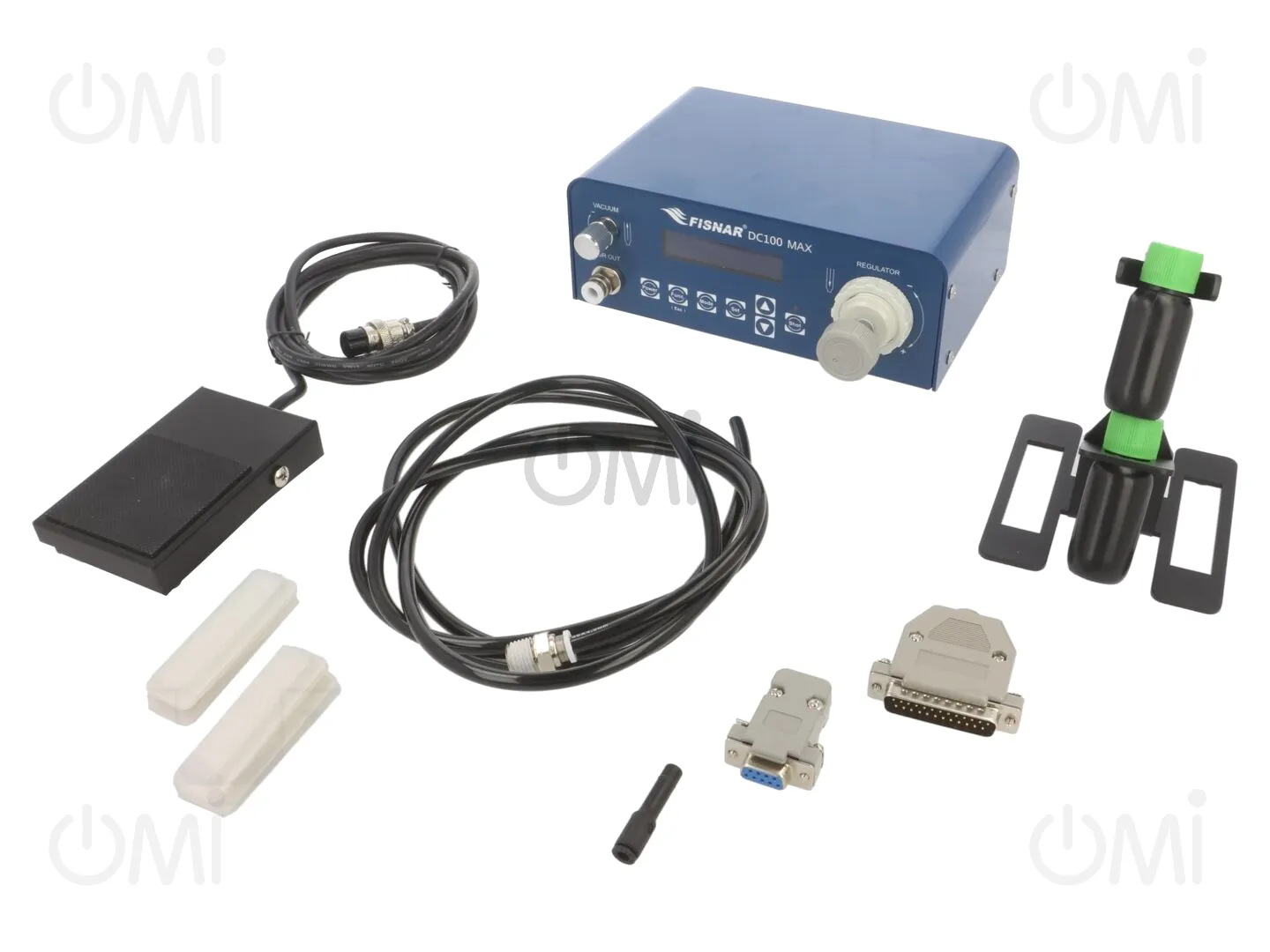

Standard equipment
power supply, foot pedal, syringe stand, pressure conduit
Applications of soldering equipment
for syringes, for dispensing cartridges
Display parameters
2x16 characters
Supply pressure
6.9bar
Type of device
digital dispenser
Soldering equipment features
additional ports for connection to external control, dispensers need an external supply with compressed air under pressure up to 7 bar, pre-suction function preventing low-viscosity liquids from dripping, earthing socket, a possibility to set air input tolerance, barcode scanner support, calibration function of outlet vacuum and pressure, low pressure alarm, memory for 16 programs, MODBUS protocol support, parameters lock function
Plug variant
EU, UK
Device dimensions
192x128x76mm
Output pressure
0...6.9bar
Dosing time
0.008...999.9s
Gross weight 2680.70 g
