FKP1Y031007J00KSSD WIMA

Details

FKP1Y031007J00KSSD
  • FKP1Y031007J00KSSD

Manufacturer product page WIMA

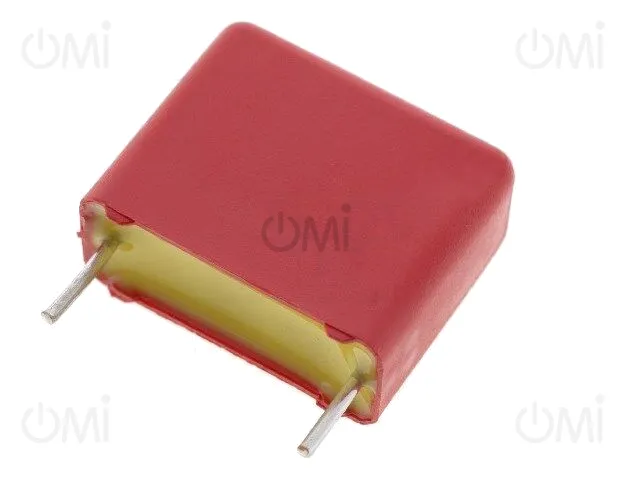

Capacitor: polypropylene; 100nF; 35x50x41.5mm; THT; ±10%; 37.5mm

Manufacturer code: FKP1Y031007J00KSSD

OMI code: 329268

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 14.83
2+ 10.57
4+ 10
525+ 9.44

Price details
FKP1Y031007J00KSSD

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 14.83
2+ 10.57
4+ 10
525+ 9.44

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
WIMA
Mounting
THT
Operating temperature
-55...100°C
Flammability rating
UL94V-0
Body dimensions
35x50x41.5mm
Tolerance
±10%
Max. operating voltage
700V AC, 6kV DC
Type of capacitor
polypropylene
Terminal pitch
37.5mm
Kind of material
flame retardant
Capacitance
0.1µF
Climate class
55/100/56
Capacitor application
high frequency circuits, for high current applications, impulse circuits
Pulse resistance
13kV/μs
Capacitors features
low dielectric loss factor, self-healing feature
Gross weight 88.50 g
Documentation in English #1 Documentation in English #2

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: THT Film Capacitors
