153.5631.5701 LITTELFUSE

Details

153.5631.5701
  • 153.5631.5701

Manufacturer product page LITTELFUSE

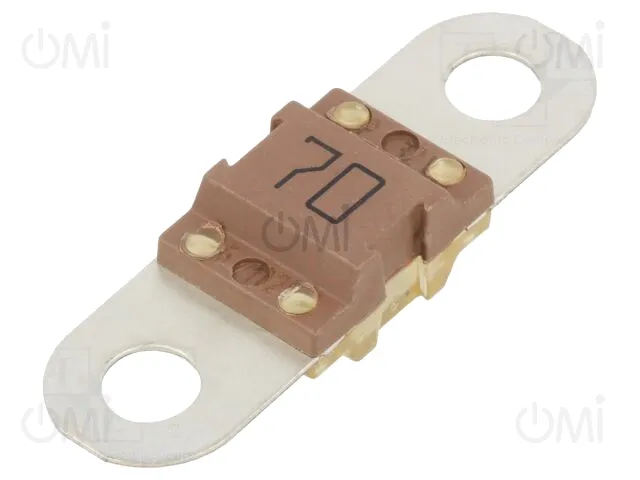

Fuse: fuse; 70A; 32VDC; M5 screw; automotive; 16x12x8mm; copper; BF1

Manufacturer code: 153.5631.5701

OMI code: 329959

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

37 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 4.88
4+ 4.04
9+ 3.82

Price details
153.5631.5701

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 4.88
4+ 4.04
9+ 3.82

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
LITTELFUSE
Mounting
M5 screw
Current rating
70A
Leads
solder lugs M5
Manufacturer series
BF1
Contact plating
tinned
Contact material
copper
Breaking capacity
1kA / 32V DC
Fuse size
16x12x8mm
Voltage drop
70mV
Type of fuse
fuse
Kind of fuse
automotive
Rated voltage
32V DC
Energy I2t
22000A<sup>2</sup>s
Breaking characteristics
1.5I<sub>n</sub>: max 1h, 1.1I<sub>n</sub>: min 4h, 3I<sub>n</sub>: max 3s, 1.5I<sub>n</sub>: min 90s, 2I<sub>n</sub>: max 100s, 2I<sub>n</sub>: min 3s, 3I<sub>n</sub>: min 300ms, 5I<sub>n</sub>: min 100ms, 5I<sub>n</sub>: max 1s
Dimensions (W x H x D)
41.6x12mm
Gross weight 2.15 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Other Car Fuses
