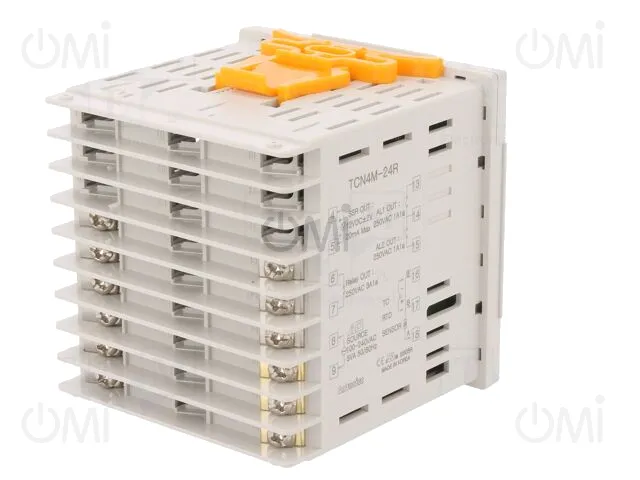

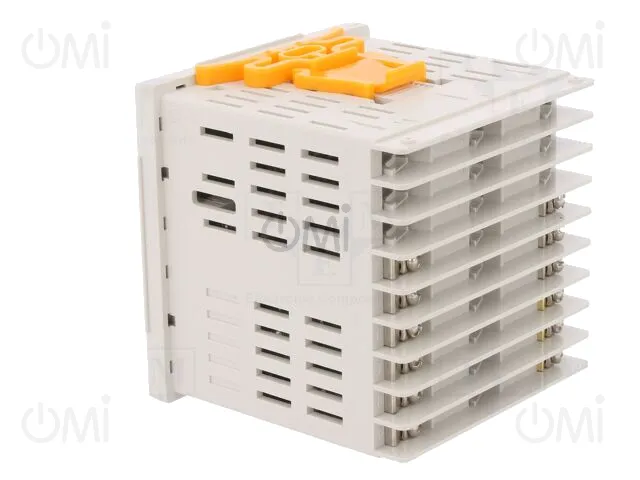

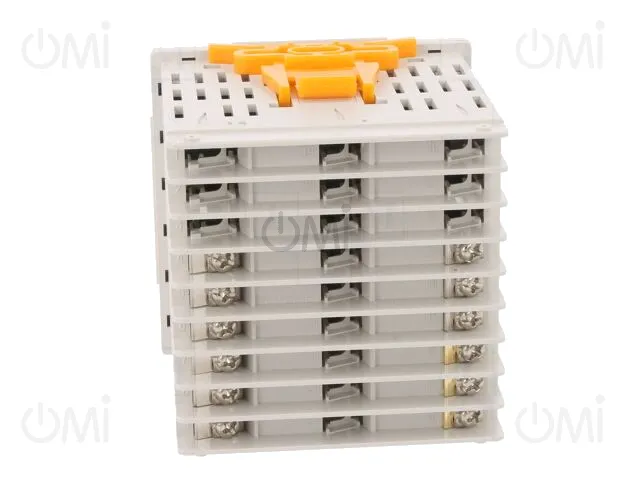

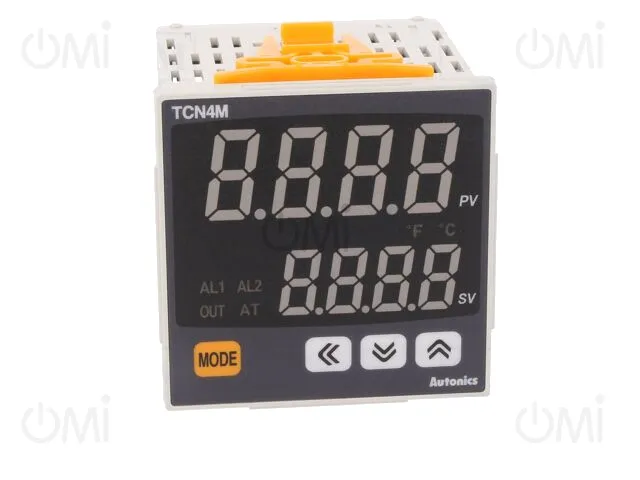

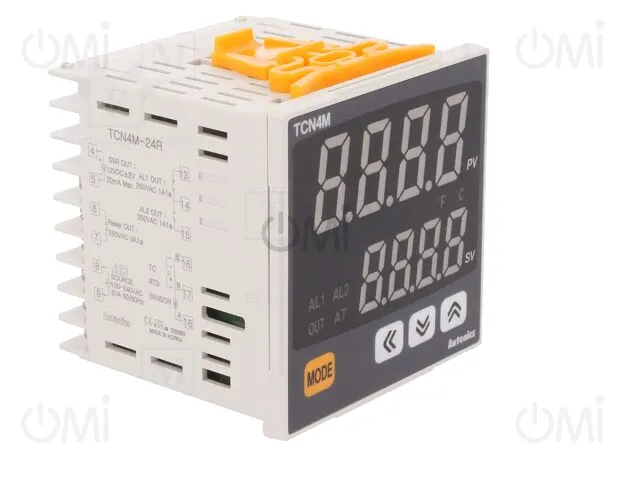

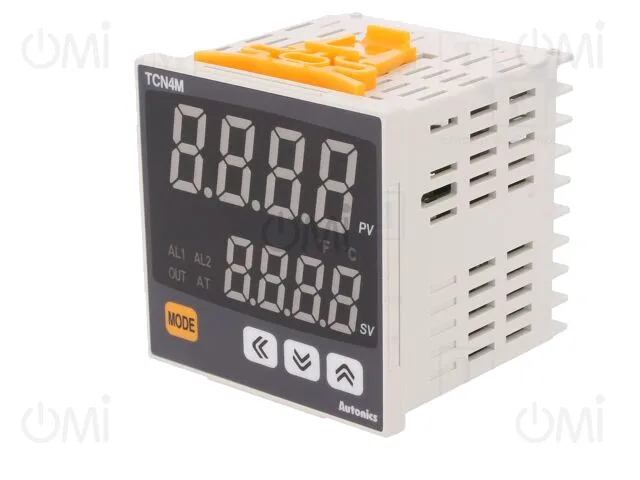

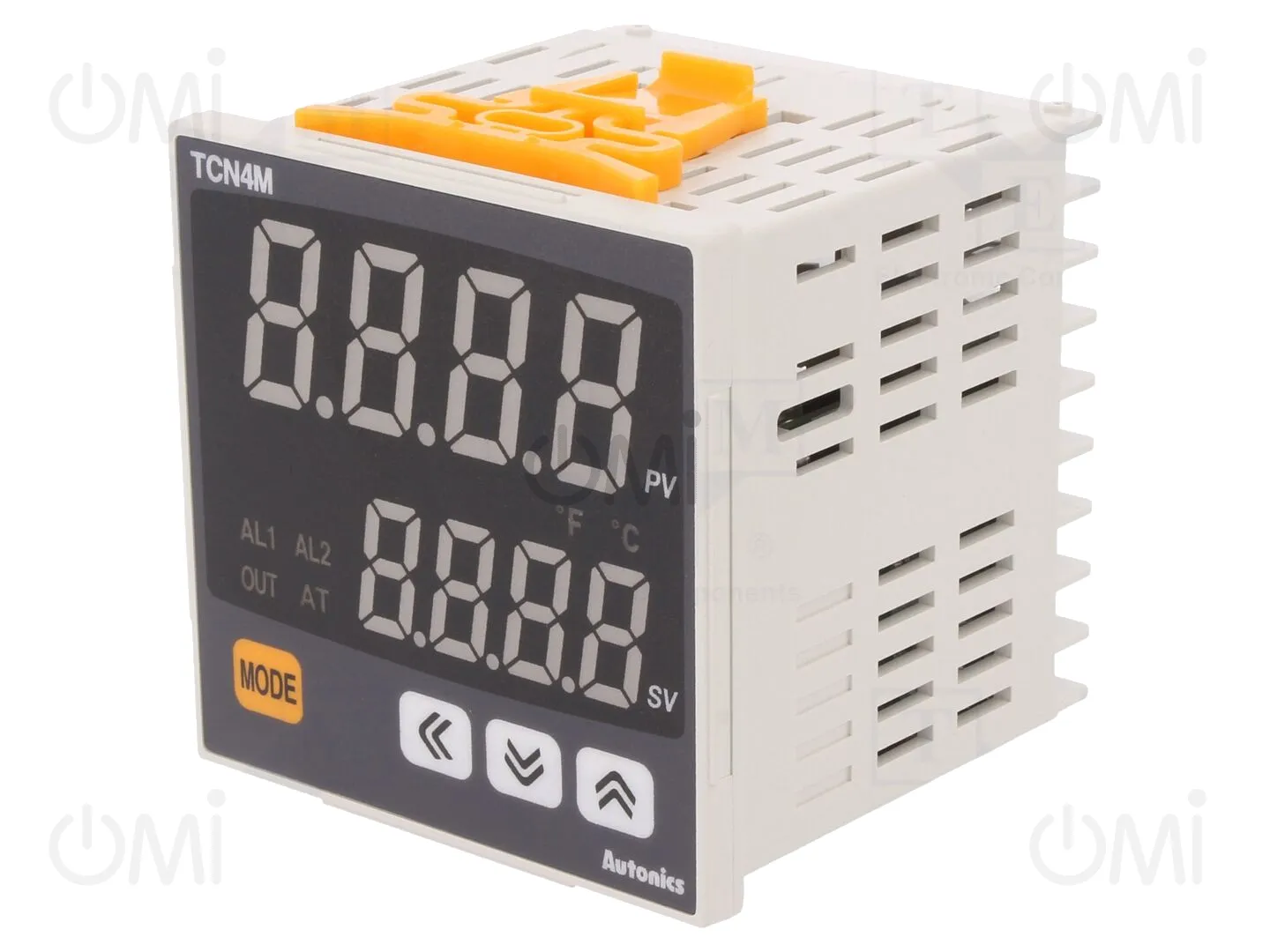

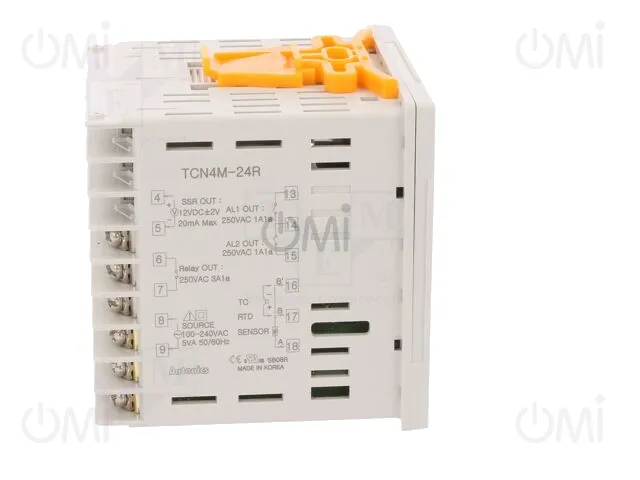

TCN4M-24R AUTONICS

Details

TCN4M-24R
TCN4M-24R
TCN4M-24R
TCN4M-24R
TCN4M-24R
TCN4M-24R
TCN4M-24R
TCN4M-24R
TCN4M-24R
  • TCN4M-24R
  • TCN4M-24R
  • TCN4M-24R
  • TCN4M-24R
  • TCN4M-24R
  • TCN4M-24R
  • TCN4M-24R
  • TCN4M-24R
  • TCN4M-24R

Manufacturer product page AUTONICS

Module: regulator; temperature; SPST-NO; OUT 2: SSR; OUT 3: alarm

Manufacturer code: TCN4M-24R

OMI code: 332978

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 51.63

Price details
TCN4M-24R

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 51.63

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
AUTONICS
Mounting
on panel
Operating temperature
-10...50°C
Manufacturer series
TCN
Supply voltage
100...240V AC
Body dimensions
72x72x70.5mm
Mounting hole diameter
68x68mm
Type of module
regulator
Kind of display used
LED x2
Kind of output 1
SPST-NO
The programming method
foil keypad
Controlled parameter
temperature
Kind of temperature sensor
Cu50, Pt100, thermocouple J, thermocouple K, thermocouple L, thermocouple R, thermocouple S, thermocouple T
Regulation for output 1
ON-OFF, P, PD, PI, PID
Display parameters
4-digit
Output 1 electrical parameters
250V AC / 3A
Controlled parameter range
-1999...9999
Input 1 properties
RTD, thermocouple
Display height 1
20mm
Display 2 height
15mm
Kind of output 2
SSR
Kind of output 3
alarm
Output 2 electrical parameters
12V DC / 20mA
Output 3 electrical parameters
250V AC / 1A
Kind of output 4
alarm
Output 4 electrical parameters
250V AC / 1A
Gross weight 203.80 g
Documentation in English #1 Documentation in English #2

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Temperature Regulators
