HS150 100R J ARCOL

Details

HS150 100R J
  • HS150 100R J

Manufacturer product page ARCOL

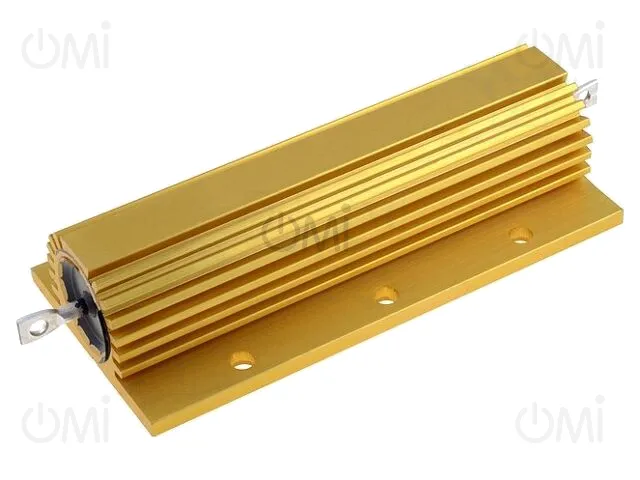

Resistor: wire-wound; with heatsink; screw; 100Ω; 150W; ±5%

Manufacturer code: HS150 100R J

OMI code: 335621

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

57 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 15.38
2+ 14.06
3+ 14.05
4+ 13.3

Price details
HS150 100R J

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 15.38
2+ 14.06
3+ 14.05
4+ 13.3

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
ARCOL
Mounting
screw
Power
150W
Leads
for soldering
Body dimensions
97.7x47.5x24.1mm
Type of resistor
wire-wound
Tolerance
±5%
Resistance
100Ω
Max. operating voltage
2.5kV
Kind of resistor
with heatsink
Mounting holes pitch
58x37mm
Temperature coefficient
100ppm/°C
Resistor features
needs additional heatsink
Power without heatsink
45W
Gross weight 145.90 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Power resistors
