MF40200V1-1000U-A99 SUNON

Details

MF40200V1-1000U-A99
MF40200V1-1000U-A99
MF40200V1-1000U-A99
MF40200V1-1000U-A99
MF40200V1-1000U-A99
MF40200V1-1000U-A99
MF40200V1-1000U-A99
MF40200V1-1000U-A99
MF40200V1-1000U-A99
  • MF40200V1-1000U-A99
  • MF40200V1-1000U-A99
  • MF40200V1-1000U-A99
  • MF40200V1-1000U-A99
  • MF40200V1-1000U-A99
  • MF40200V1-1000U-A99
  • MF40200V1-1000U-A99
  • MF40200V1-1000U-A99
  • MF40200V1-1000U-A99

Manufacturer product page SUNON

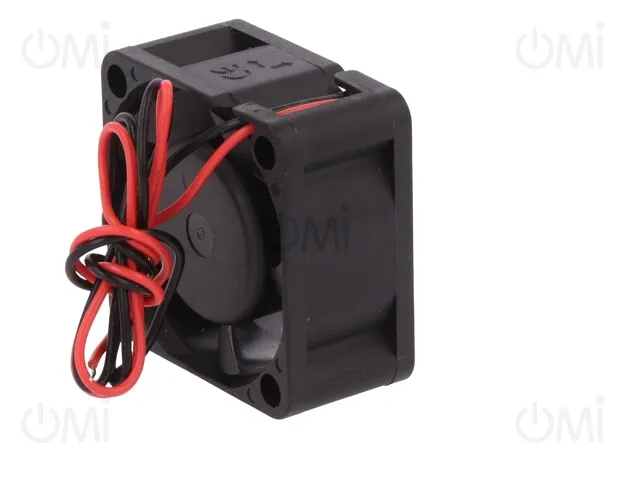

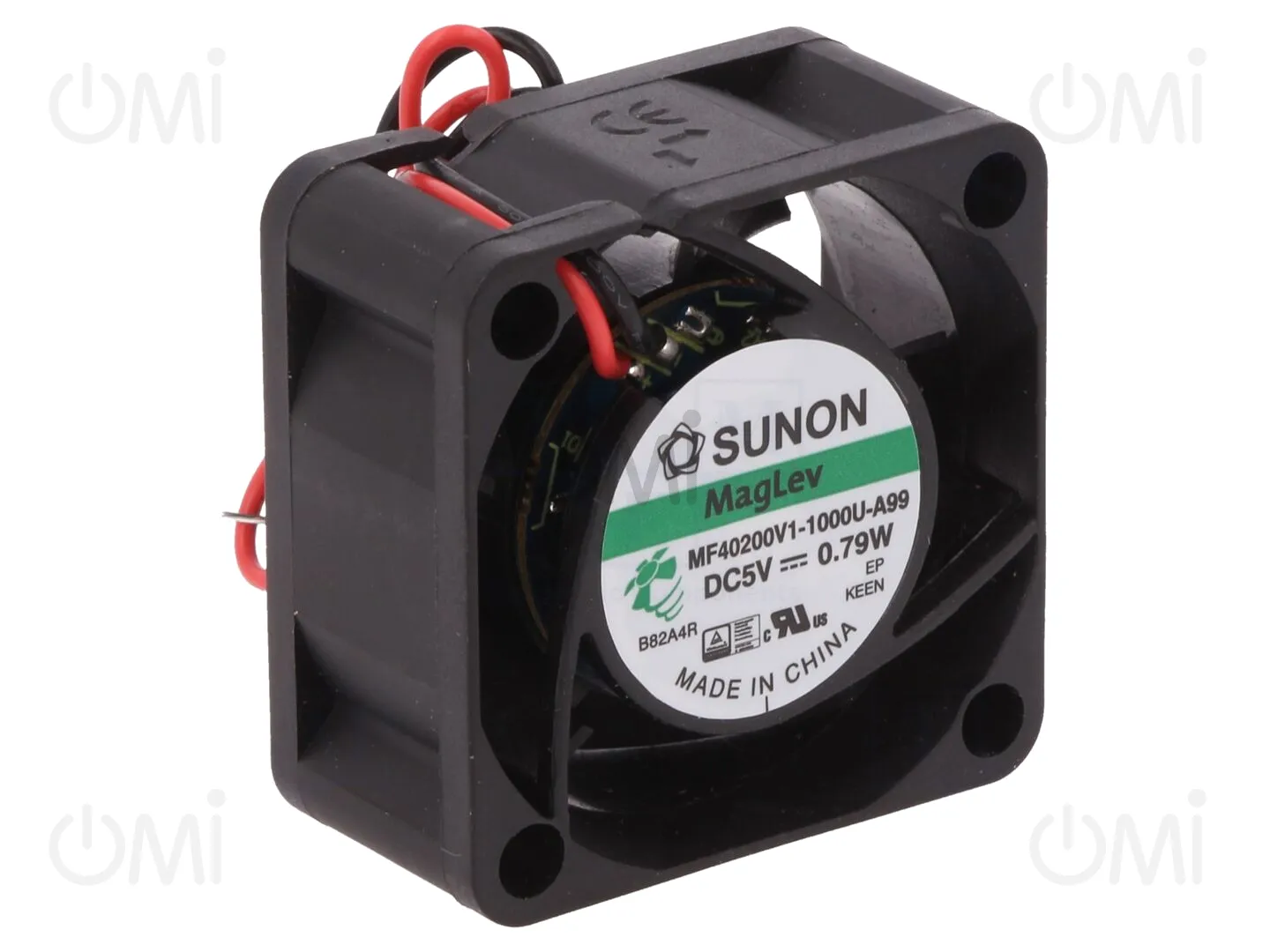

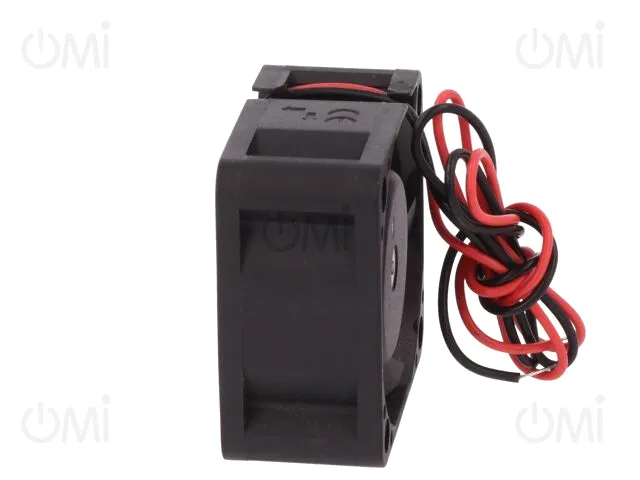

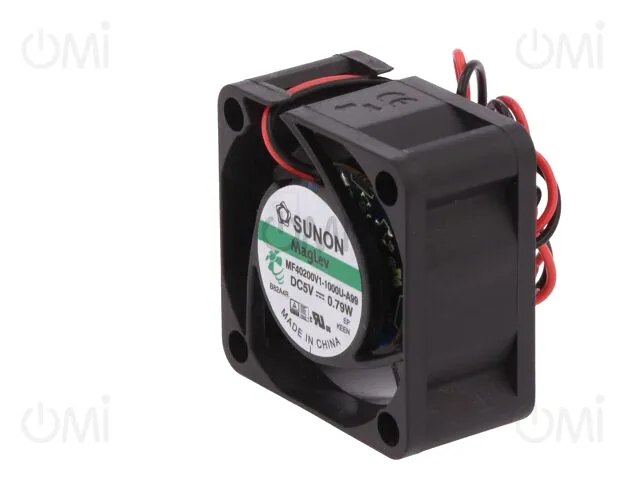

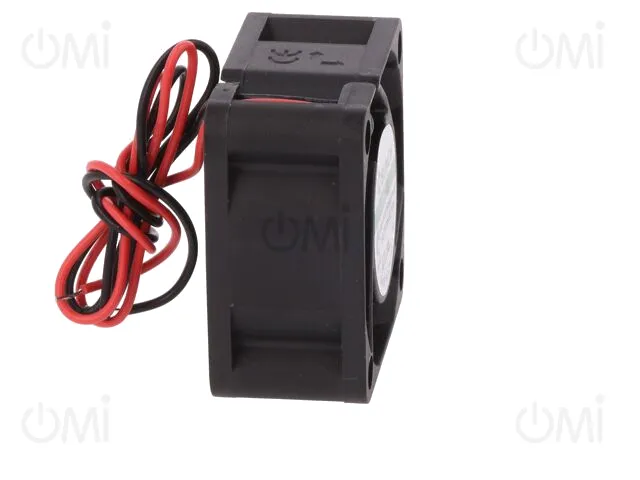

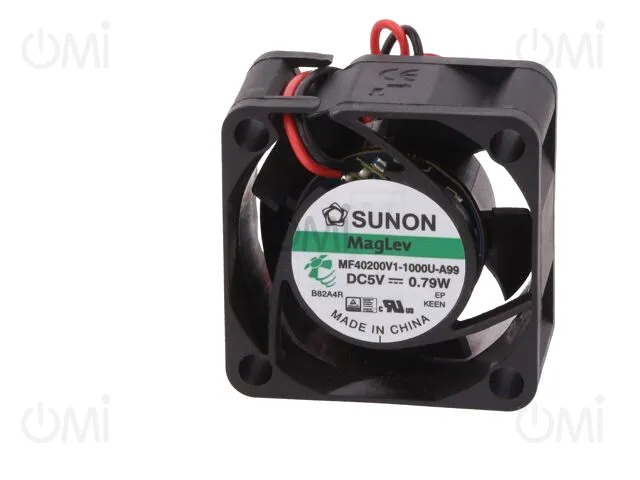

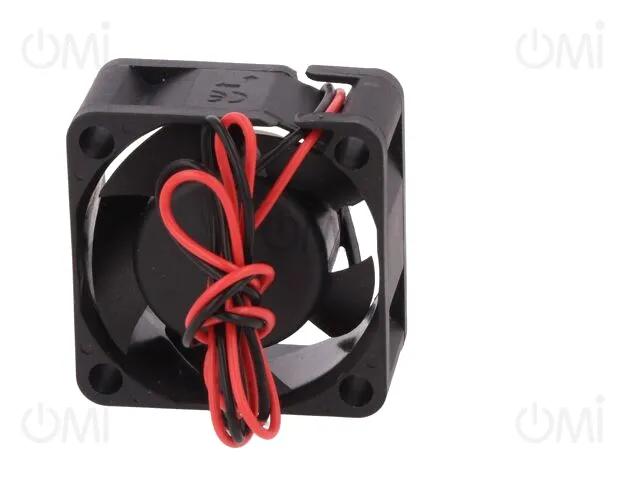

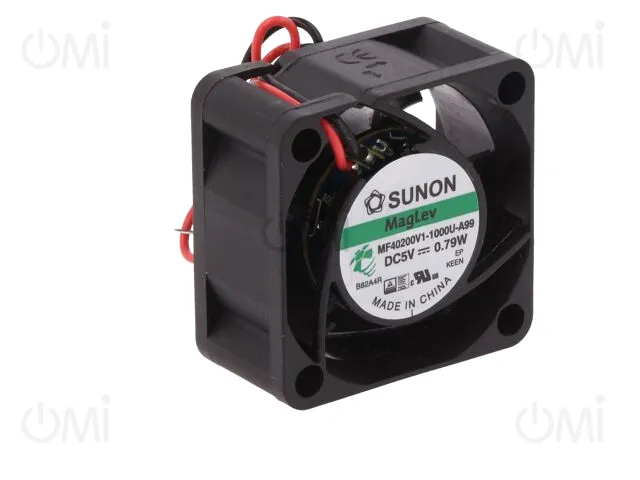

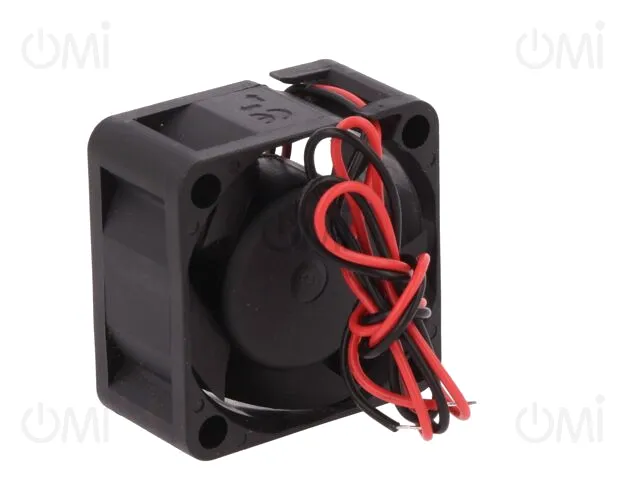

Fan: DC; axial; 5VDC; 40x40x20mm; 15.04m3/h; 25.5dBA; Vapo; 7000rpm

Manufacturer code: MF40200V1-1000U-A99

OMI code: 338370

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

353 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 5.43
50+ 4.26
100+ 3.8
200+ 3.67

Price details
MF40200V1-1000U-A99

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 5.43
50+ 4.26
100+ 3.8
200+ 3.67

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
SUNON
Operating temperature
-10...70°C
Current rating
0.15A
Leads
lead x2
Flammability rating
UL94V-0
Supply voltage
5V DC
Cable length
0.305m
Operating voltage
3.5...6V
Power consumption
0.75W
Enclosure material
thermoplastic
Rotational rate/speed
7000rpm
Kind of Bearing
Vapo
Fan efficiency
15.04m<sup>3</sup>/h
Wire size
26AWG
Additional functions
Autorestart
Min. insulation resistance
10MΩ
Insulation class
A
Type of fan
DC
Fan dimensions
40x40x20mm
Fan motor
brushless DC
Impeller material
thermoplastic
Noise level
25.5dBA
Kind of fan
axial
Static pressure
5.59mm H<sub>2</sub>O
Gross weight 28.03 g
Documentation in English #1 Documentation in English #2

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: DC5V Fans
