AG051F OWON

Details

AG051F
  • AG051F

Manufacturer product page OWON

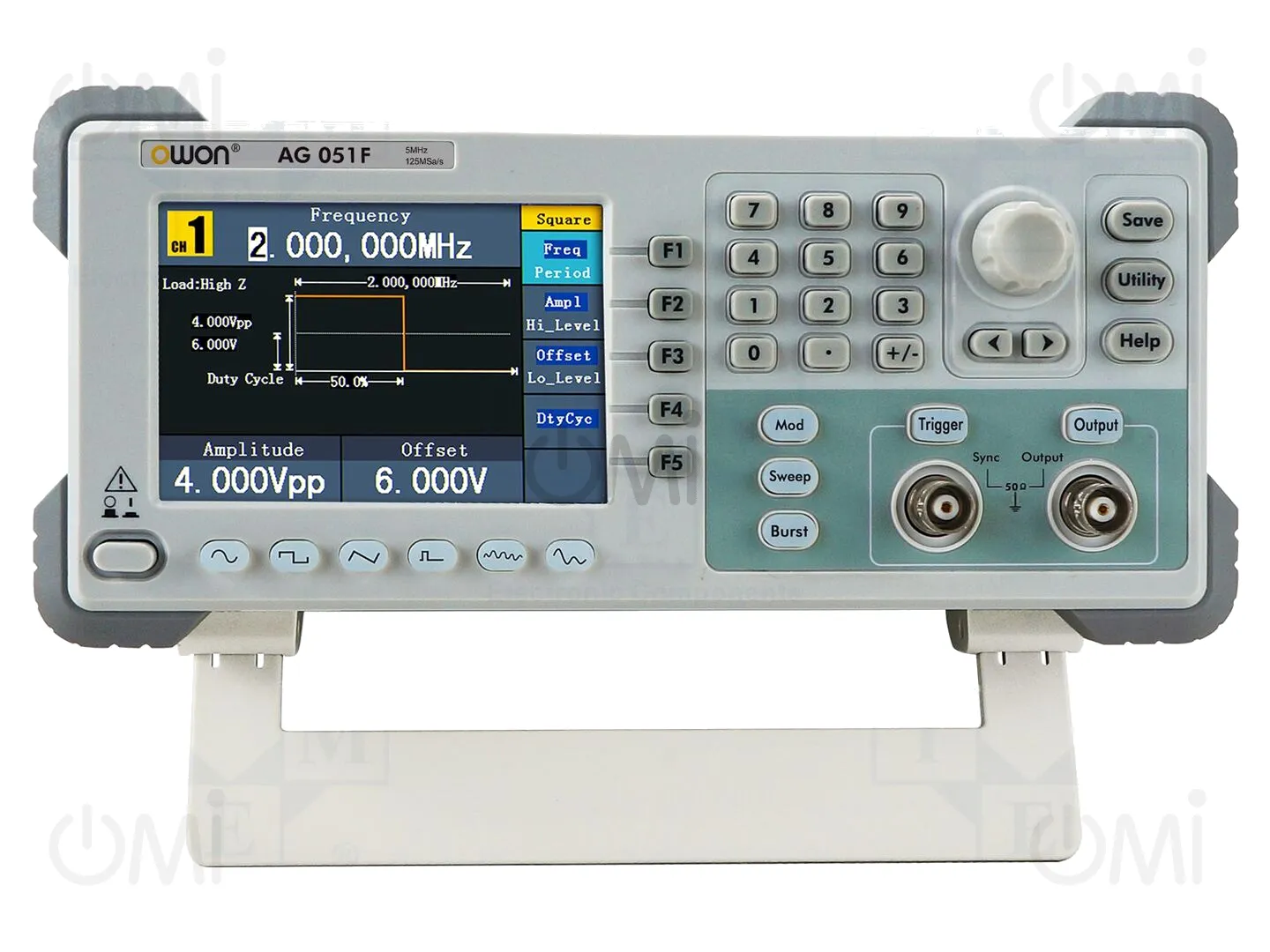

Generator: arbitrary, function; 5MHz; LCD 4,3"; 480x320; Ch: 1

Manufacturer code: AG051F

OMI code: 341636

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

27 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 207.8
3+ 202.45

Price details
AG051F

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 207.8
3+ 202.45

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
OWON
Dimensions
235x110x295mm
Interface
USB
Number of channels
1
Kind of display used
LCD 4,3"
Standard equipment
USB cable, mains cable, BNC-BNC cable
Measuring instrument features
Direct Digital Synthesized (DDS) technology, supports SCPI
Display resolution
480x320
Type of generator
arbitrary, function
Plug variant
EU
Software
LabVIEW
Sampling
125Msps
Vertical resolution
14bit
Memory record length
8kpts
Maximum waveform frequency
5MHz
Waveform frequency range
1µHz...1MHz (ramp waveform), 1µHz...5MHz (arbitrary waveform), 1µHz...5MHz (pulse waveform), 1µHz...5MHz (rectangular waveform), 1µHz...5MHz (sinus waveform)
Kind of modulation
AM, FM, FSK, PM, burst, modulation frequency 2m...20.00KHz (FSK 2m...100KHz), sweep
Waveforms
impulse, arbitrary, rectangular, sinus, noise, ramp
Gross weight 3887.30 g
Documentation in English #1 Documentation in English #2

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Generators and Frequency Meters
