LCA220 IXYS

Details

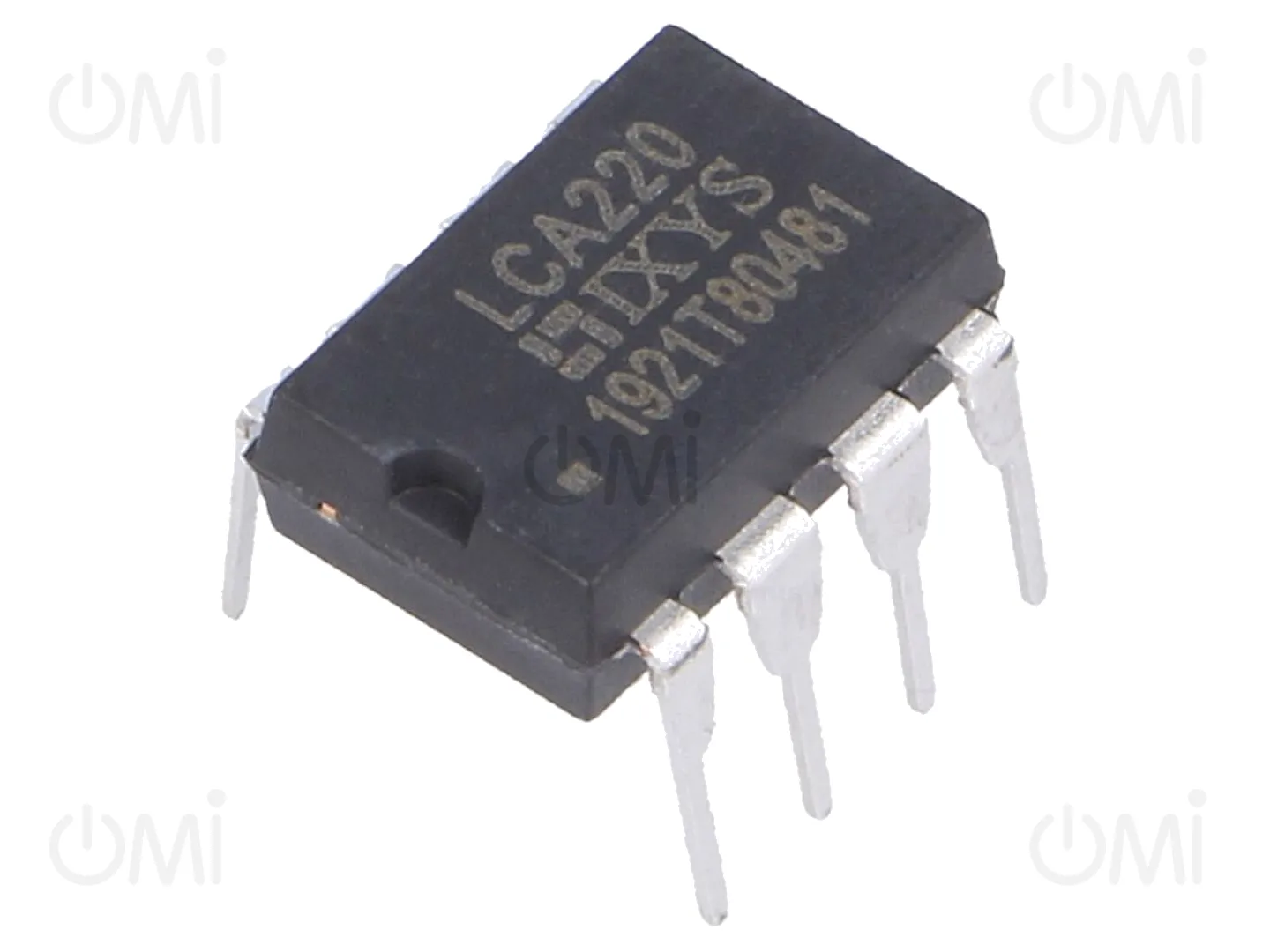

LCA220
  • LCA220

Manufacturer product page IXYS

Relay: solid state; SPDT; Icntrl max: 100mA; 120mA; max.250VAC

Manufacturer code: LCA220

OMI code: 346237

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

82 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 14.7
2+ 11.55
4+ 10.93
50+ 10.53

Price details
LCA220

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 14.7
2+ 11.55
4+ 10.93
50+ 10.53

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
IXYS
Mounting
THT
Operating temperature
-40...85°C
Max. operating current
120mA
Manufacturer series
OptoMOS
Case
DIP8
Contacts configuration
SPDT
Body dimensions
9.65x6.35x3.3mm
Switched voltage
max. 250V AC, max. 250V DC
Turn-on time
5ms
Insulation voltage
3.75kV
Type of relay
solid state
On-state resistance
20Ω
Relay variant
1-phase, current source
Kind of output
MOSFET
Turn-off time
5ms
Control current max.
100mA
Gross weight 0.47 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: One Phase Solid State Relays
