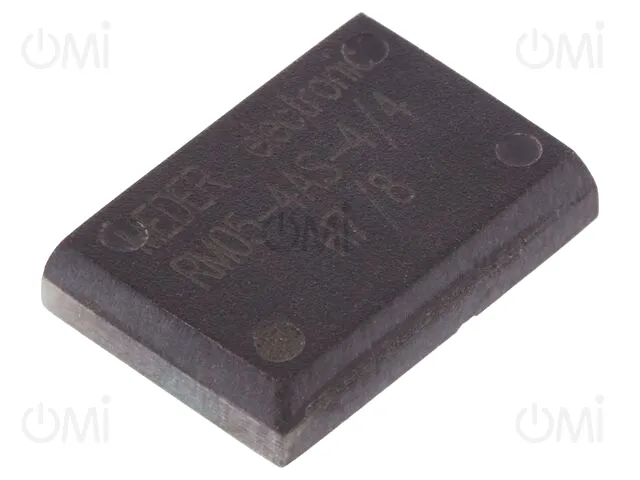

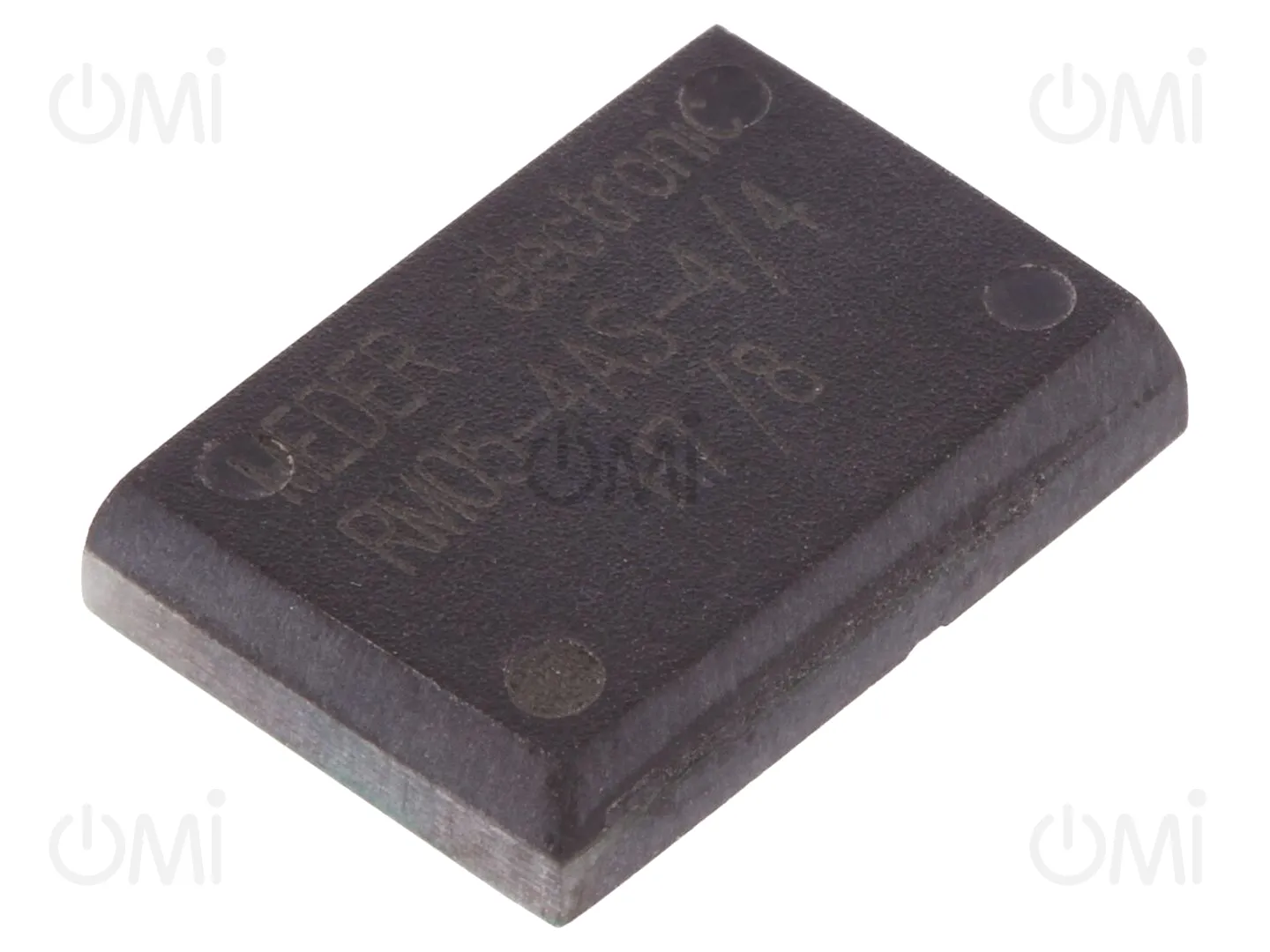

RM05-4AS-4/4 MEDER

Details

RM05-4AS-4/4
  • RM05-4AS-4/4

Manufacturer product page MEDER

Relay: reed switch; SPST-NO x4; Ucoil: 5VDC; 500mA; max.170VDC

Manufacturer code: RM05-4AS-4/4

OMI code: 35050

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 21.79
2+ 20.63
5+ 20.62
100+ 19.45

Price details
RM05-4AS-4/4

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 21.79
2+ 20.63
5+ 20.62
100+ 19.45

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
MEDER
Mounting
SMD, PCB
Operating temperature
-40...85°C
Contacts configuration
SPST-NO x4
Body dimensions
16x11.2x4mm
Switched voltage
max. 170V AC, max. 170V DC
Type of relay
reed switch
Contact current max.
0.5A
Min. insulation resistance
10GΩ
Coil resistance
185Ω
Switching capacity
10W
Rated coil voltage
5V DC
Operate time
0.6ms
Contact resistance
0.2Ω
Release time
0.1ms
Coil power consumption
135mW
Gross weight 1.40 g

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Reed Electromagnetic Relays
