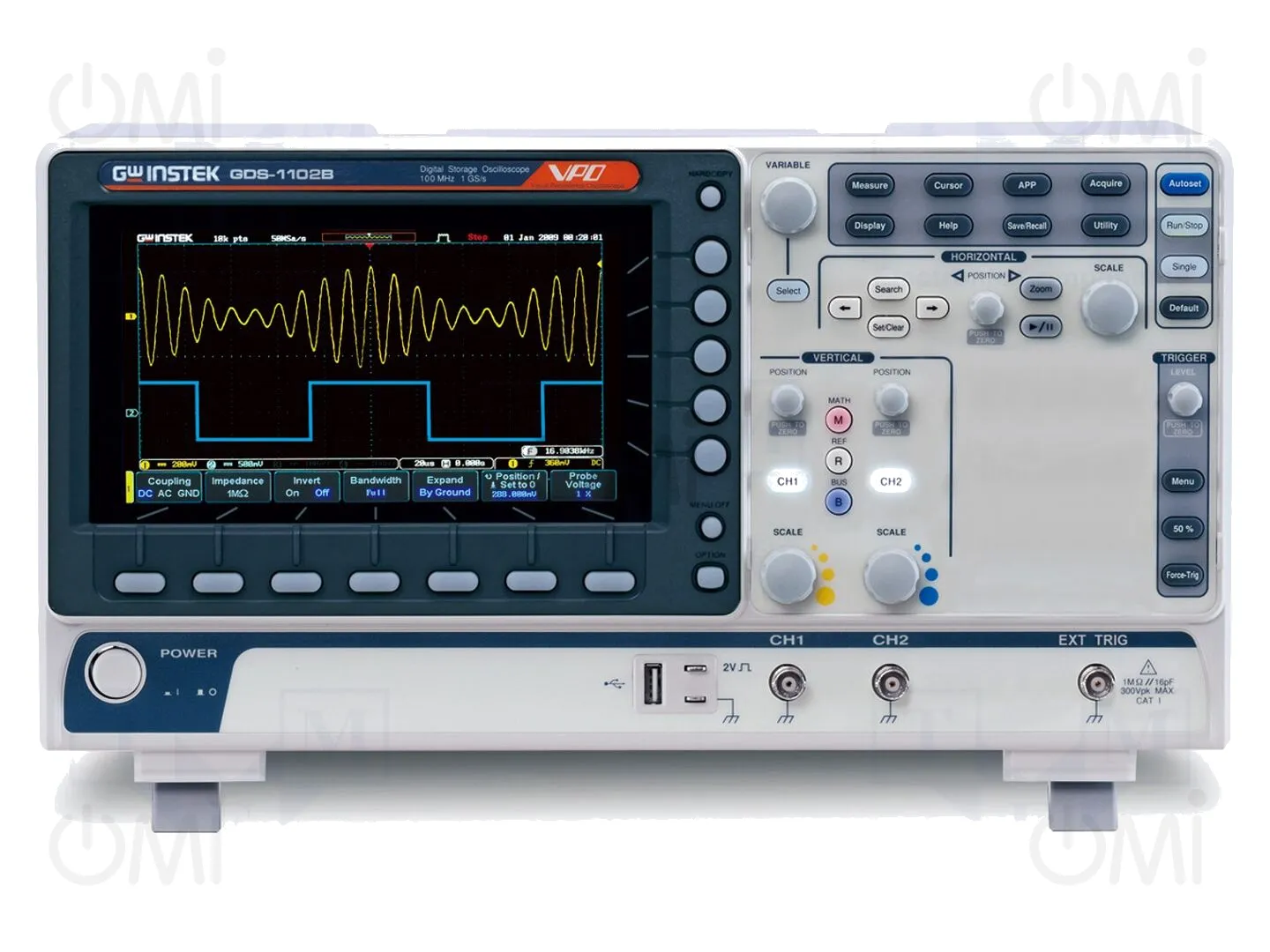

GDS-1102B (CE) 2CH GW INSTEK

Details

GDS-1102B (CE) 2CH
  • GDS-1102B (CE) 2CH

Manufacturer product page GW INSTEK

Oscilloscope: digital; Ch: 2; 100MHz; 1Gsps; 10Mpts; colour,LCD 7"

Manufacturer code: GDS-1102B (CE) 2CH

OMI code: 352434

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

5 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 558.09

Price details
GDS-1102B (CE) 2CH

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 558.09

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
GW INSTEK
Manufacturer series
GDS-1000B
Dimensions
384x208x127.3mm
Interface
USB
Number of channels
2
Kind of display used
colour, LCD 7"
Standard equipment
mains cable, oscilloscope probe (1 per channel)
Measuring instrument features
automatic measurement of many parameters, background noise filter, measurements by means of cursors, X-Y operation mode, protocols analyse: I2C, SPI, RS232/UART, CAN, LIN
Input impedance
1MΩ/16pF
Display resolution
800x480
Plug variant
EU
Sampling
1Gsps
Band
100MHz
Type of oscilloscope
digital
Input coupling
AC, DC, GND
Vertical resolution
8bit
Trigger modes
automatic, normal, single
Trigger coupling
AC, DC, highpass, lowpass
Max. input voltage
300V
Rise time
≤3.5ns
Input sensitivity
1mV/div...10V/div
Time base
5n...100s/div
Memory record length
10Mpts
Gross weight 4048.00 g
Documentation in English #1 Documentation in English #2 Documentation in English #3 Documentation in English #4

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Digital Oscilloscopes
