9536.01305 BELDEN

Details

9536.01305
  • 9536.01305

Manufacturer product page BELDEN

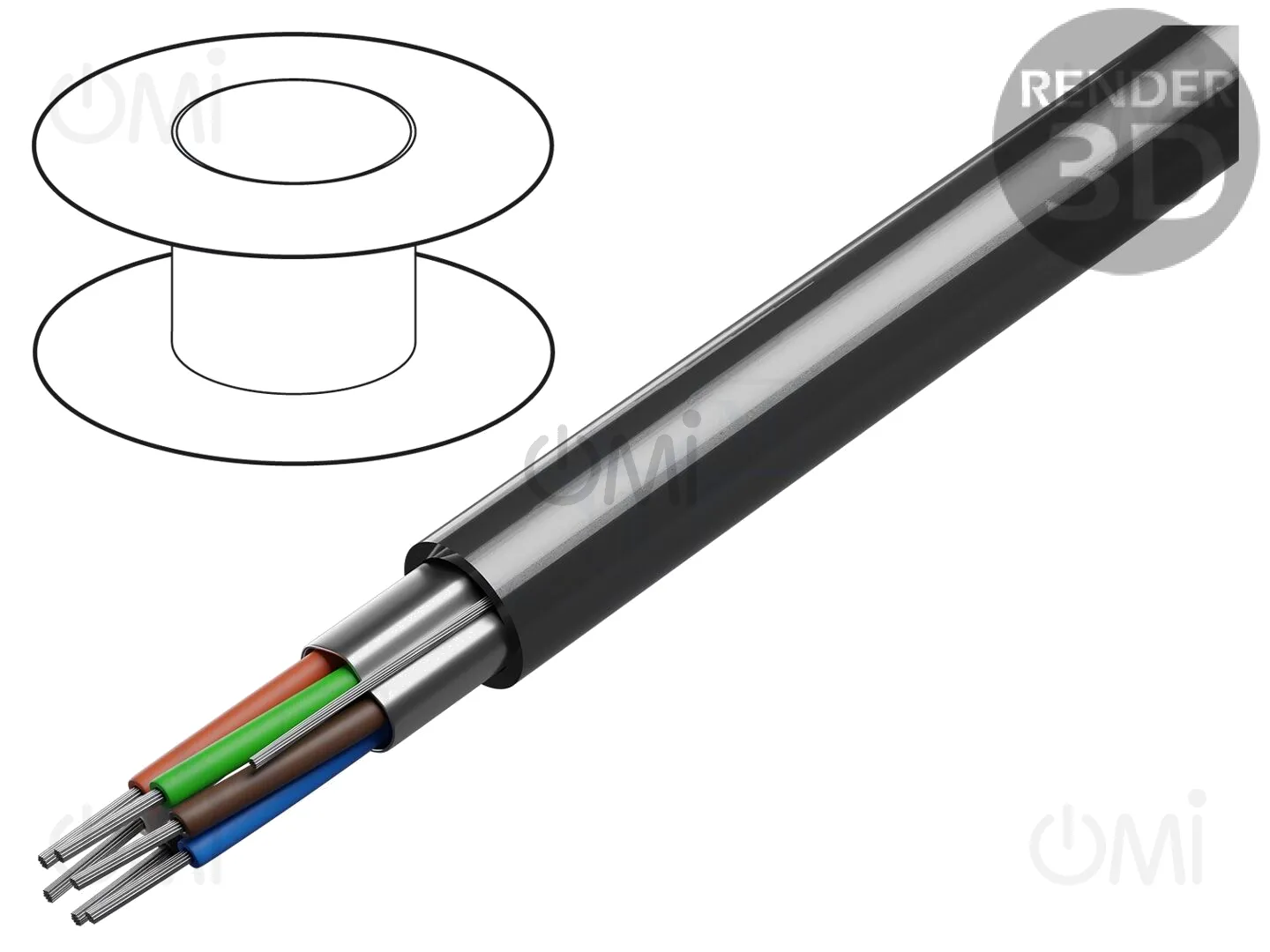

Wire; 6x24AWG; RS232; stranded; Cu; shielded,Al-PET foil; PVC; 305m

Manufacturer code: 9536.01305

OMI code: 353536

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

303 m

Qty.
[m] 		Price
[EUR/m]
1+ 5.07
6+ 2.95
13+ 2.8

Price details
9536.01305

Qty.
[m] 		Price
[EUR/m]
1+ 5.07
6+ 2.95
13+ 2.8

Quantity m (multiplicity: 5)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
BELDEN
Operating temperature
-30...80°C
Conform to the norm
UL 1685, UL 2464
Wire insulation material
PVC
Type of wire
data transmission
Number of cores
6
Insulation colour
chrome
Cable application
indoor, RS232
Kind of core
Cu, tinned
Cable external diameter
5.31mm
Shield structure
Al-PET foil, shielded
Rated voltage
300V
Core marking
colours without colour repetition
Package contents
305m
Core diameter
24AWG
Core structure
stranded
Earth core
none
CPR standard
E<sub>ca</sub>
Cable structure
6x24AWG
Package contents - ft
1kft
Information
The UL Label and Mark on full factory packaging only
Ground
tinned copper strand 24AWG
Gross weight 36.99 g
Documentation in English #1 Documentation in English #2

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Serial Bus Cables
