09180257004 HARTING

Details

09180257004
  • 09180257004

Manufacturer product page HARTING

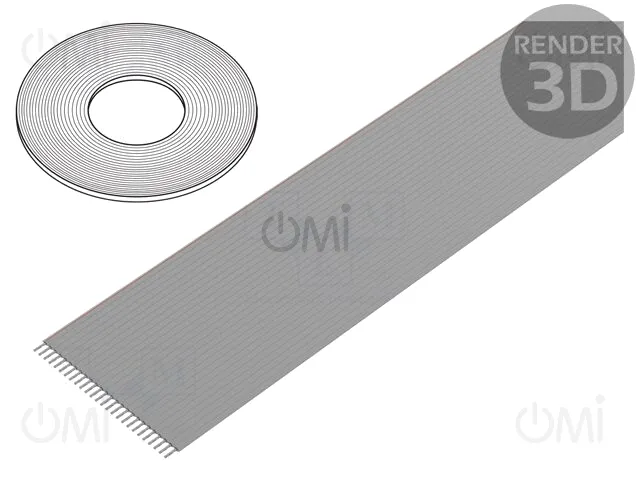

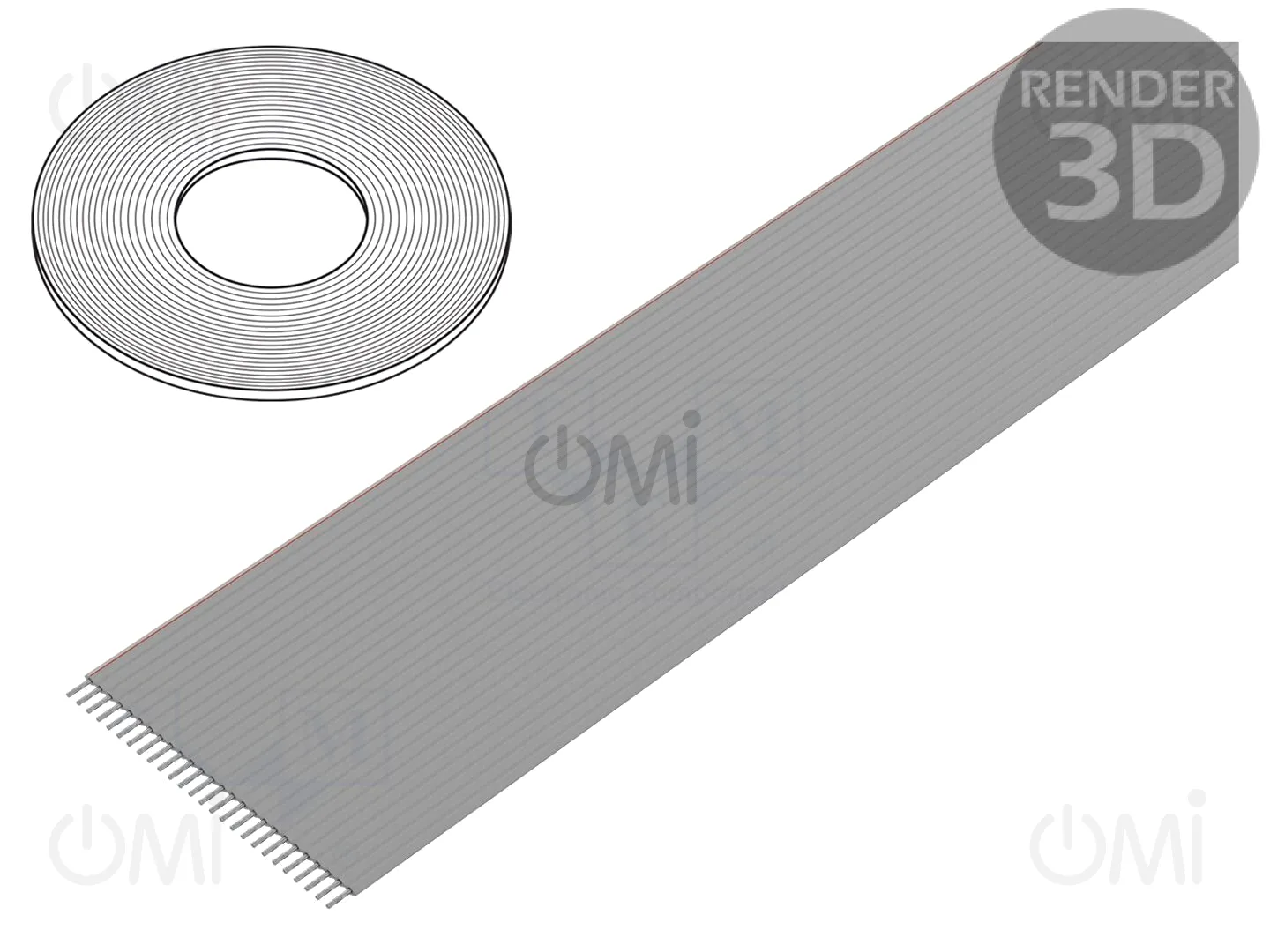

Wire: ribbon; 1.27mm; stranded; Cu; unshielded; PVC; grey; 100m

Manufacturer code: 09180257004

OMI code: 358317

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 rol

Qty.
[rol] 		Price
[EUR/rol]
1+ 251.14

Price details
09180257004

Qty.
[rol] 		Price
[EUR/rol]
1+ 251.14

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
HARTING
Operating temperature
-20...105°C
Conform to the norm
VW-1, UL 2651
Wire insulation material
PVC
Type of wire
ribbon
Number of cores
25
Insulation colour
grey
A dimension
31.41mm
Ribbon cable pitch
1.27mm
Kind of core
Cu, tinned
Shield structure
unshielded
Rated voltage
300V
Package contents
100m
Core diameter
28AWG
Core structure
stranded
B dimension
30.48mm
Cable structure
25x28AWG
Gross weight 7650.00 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Ribbon Cables - Single Color

* All prices are net prices (excluding VAT) and do not include transportation costs, which will be included in the order amount. Transportation costs are available in the tab "Method and cost of delivery"

Last viewed items

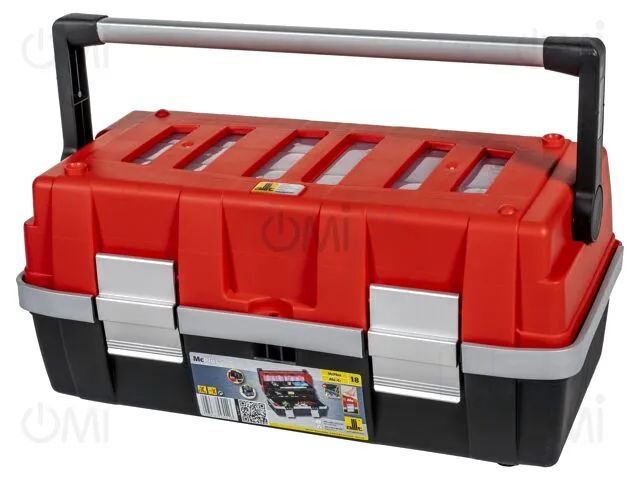

W-457011
