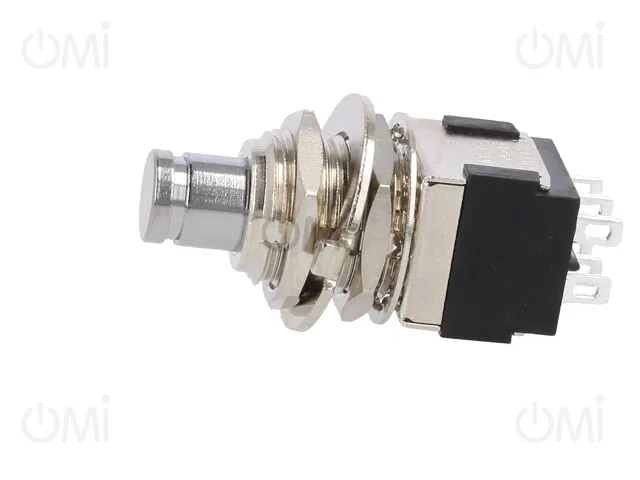

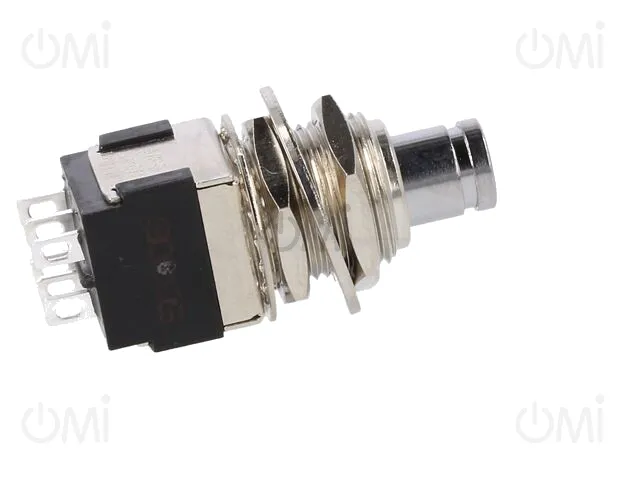

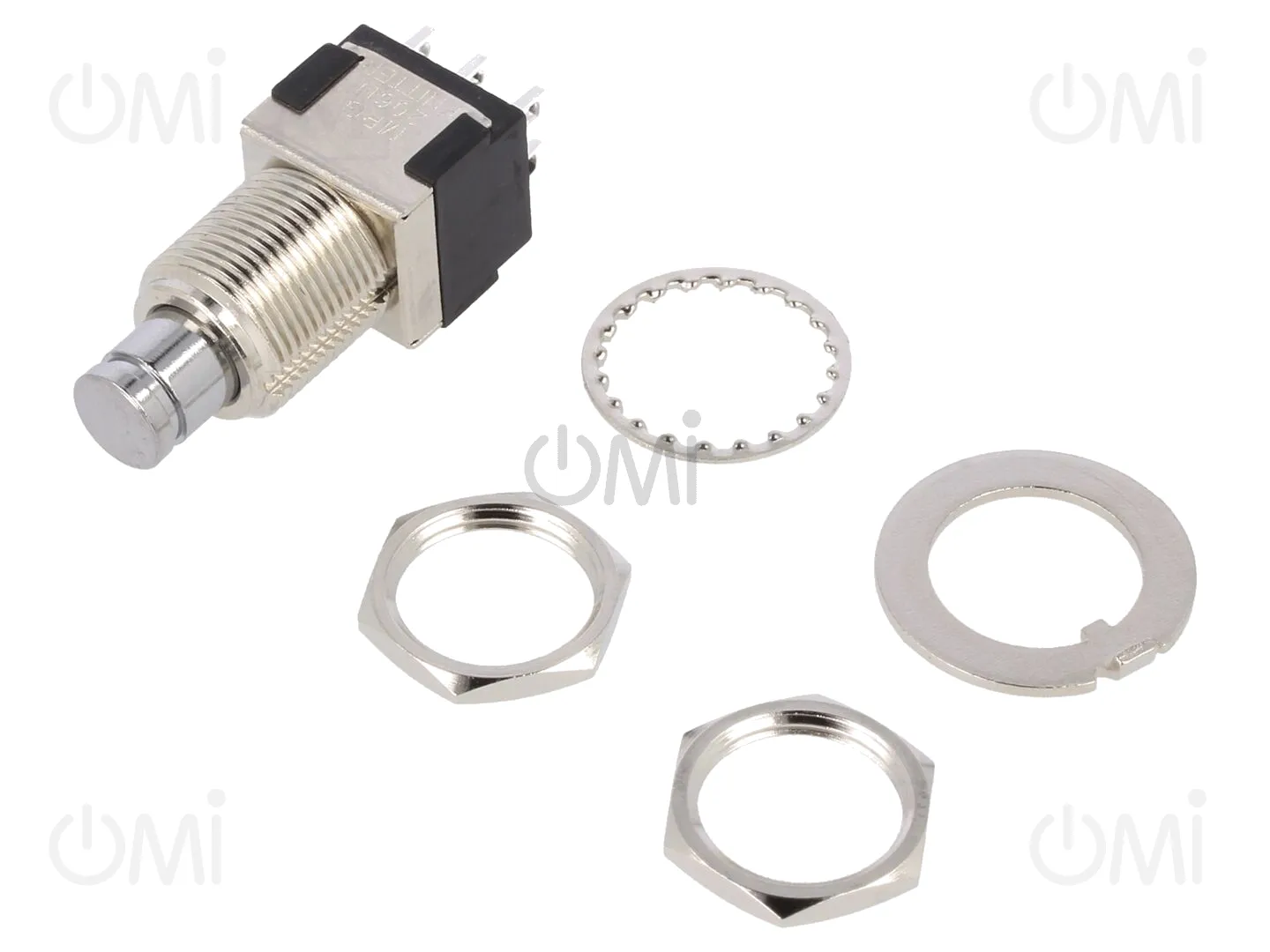

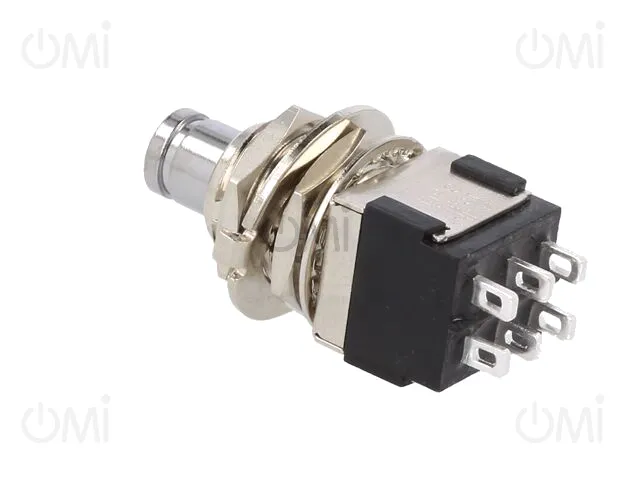

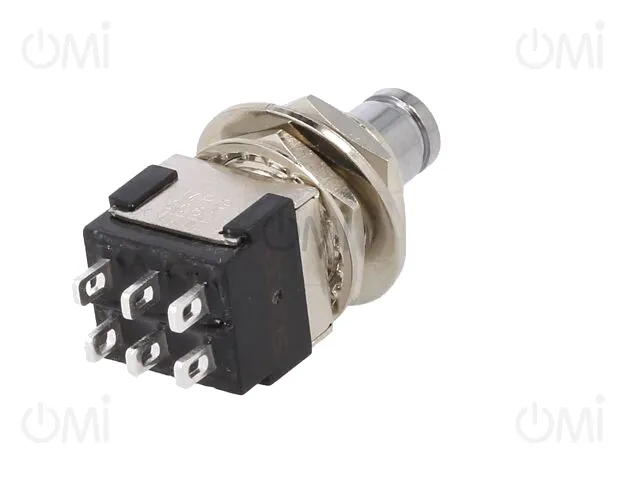

MPG 206 N KNITTER-SWITCH

Details

MPG 206 N
MPG 206 N
MPG 206 N
MPG 206 N
MPG 206 N
MPG 206 N
MPG 206 N
MPG 206 N
MPG 206 N
  • MPG 206 N
  • MPG 206 N
  • MPG 206 N
  • MPG 206 N
  • MPG 206 N
  • MPG 206 N
  • MPG 206 N
  • MPG 206 N
  • MPG 206 N

Manufacturer product page KNITTER-SWITCH

Switch: push-button; Pos: 2; DPDT; 6A/125VAC; 6A/6VDC; ON-ON; screw

Manufacturer code: MPG 206 N

OMI code: 3596

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

35 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 16.12
2+ 12.3
4+ 11.63

Price details
MPG 206 N

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 16.12
2+ 12.3
4+ 11.63

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
KNITTER-SWITCH
Mounting
screw
Type of switch
push-button
Operating temperature
-45...140°C
Leads
flat pin
Body dimensions
12x13x13mm
Manufacturer series
MPG
Contacts configuration
DPDT
Contact plating
silver plated
Body material
plastic
Switching method
ON-ON
Mechanical durability
30000 cycles
Body colour
black
Mounting hole diameter
Ø12.5mm
AC contacts rating @R
6A / 125V AC
Number of positions
2
DC contacts rating @R
6A / 6V DC
Terminal pitch
4.3mm
Illumination
none
Max. contact resistance:
20mΩ
Button shape
round
Button shape
round, high
Button height
7mm
Stable positions number
2
Operating Force
15N
Button marking
blank
Key stroke
3.5mm
Gross weight 18.11 g
Documentation in English #1
