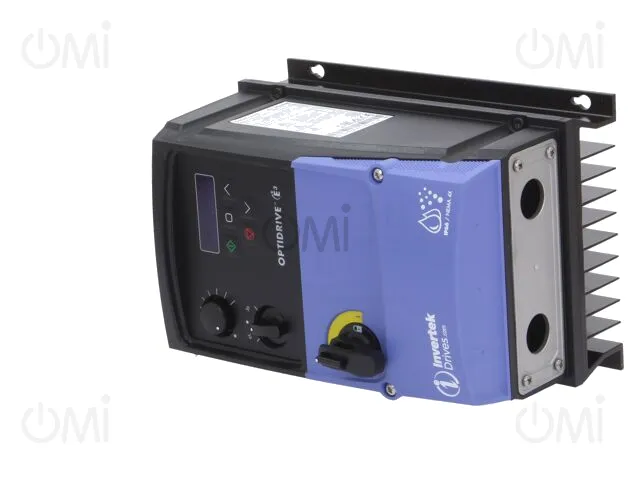

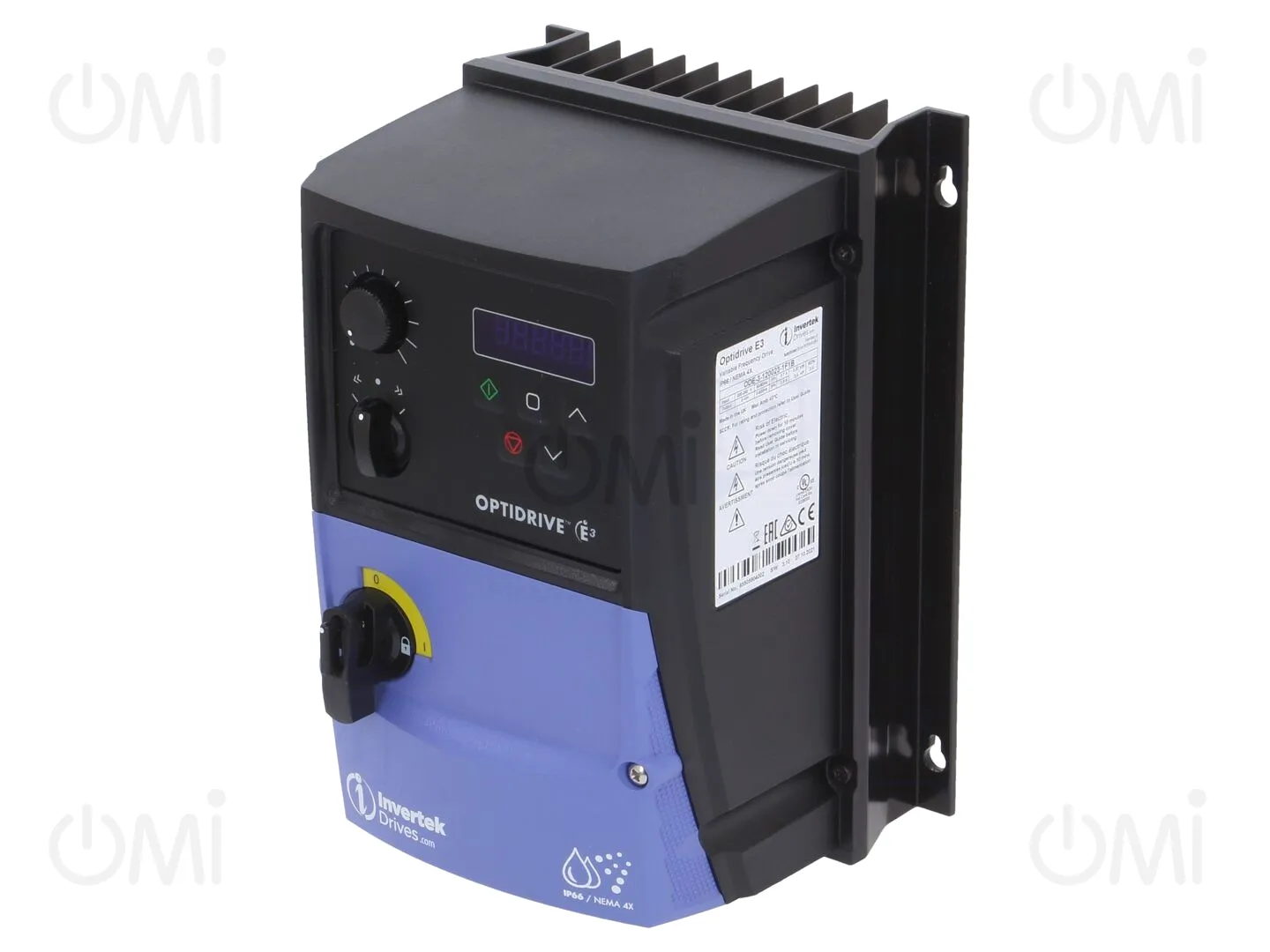

ODE-3-120023-1F1B INVERTEK DRIVES

Details

ODE-3-120023-1F1B
ODE-3-120023-1F1B
ODE-3-120023-1F1B
ODE-3-120023-1F1B
ODE-3-120023-1F1B
ODE-3-120023-1F1B
ODE-3-120023-1F1B
ODE-3-120023-1F1B
ODE-3-120023-1F1B
  • ODE-3-120023-1F1B
  • ODE-3-120023-1F1B
  • ODE-3-120023-1F1B
  • ODE-3-120023-1F1B
  • ODE-3-120023-1F1B
  • ODE-3-120023-1F1B
  • ODE-3-120023-1F1B
  • ODE-3-120023-1F1B
  • ODE-3-120023-1F1B

Manufacturer product page INVERTEK DRIVES

Vector inverter; Max motor power: 0.37kW; Usup: 200÷240VAC; IN: 4

Manufacturer code: ODE-3-120023-1F1B

OMI code: 36241

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

7 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 391.5

Price details
ODE-3-120023-1F1B

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 391.5

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
INVERTEK DRIVES
Mounting
for DIN rail mounting, for wall mounting
Operating temperature
-10...50°C
IP rating
IP66
Current rating
2.3A
Manufacturer series
Optidrive E3
Supply voltage
200...240V AC
Number of outputs
2
Number of inputs
4
Type of module
vector inverter
The programming method
keypad, PC
Electrical connection
screw terminals
Max motor power
0.37kW
Inverter output voltage
3 x 230V AC
Input 1 properties
rotational speed setting with signal 0...10V, 4...20mA, 0...20mA
Number of analog inputs
1
Starting/stopping time
0.1...600s
Driver features
integrated EMC filter, with switches
Output frequency
0...500Hz
Number of analog outputs
1
Gross weight 2889.80 g
Documentation in English #1 Documentation in English #2

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.
