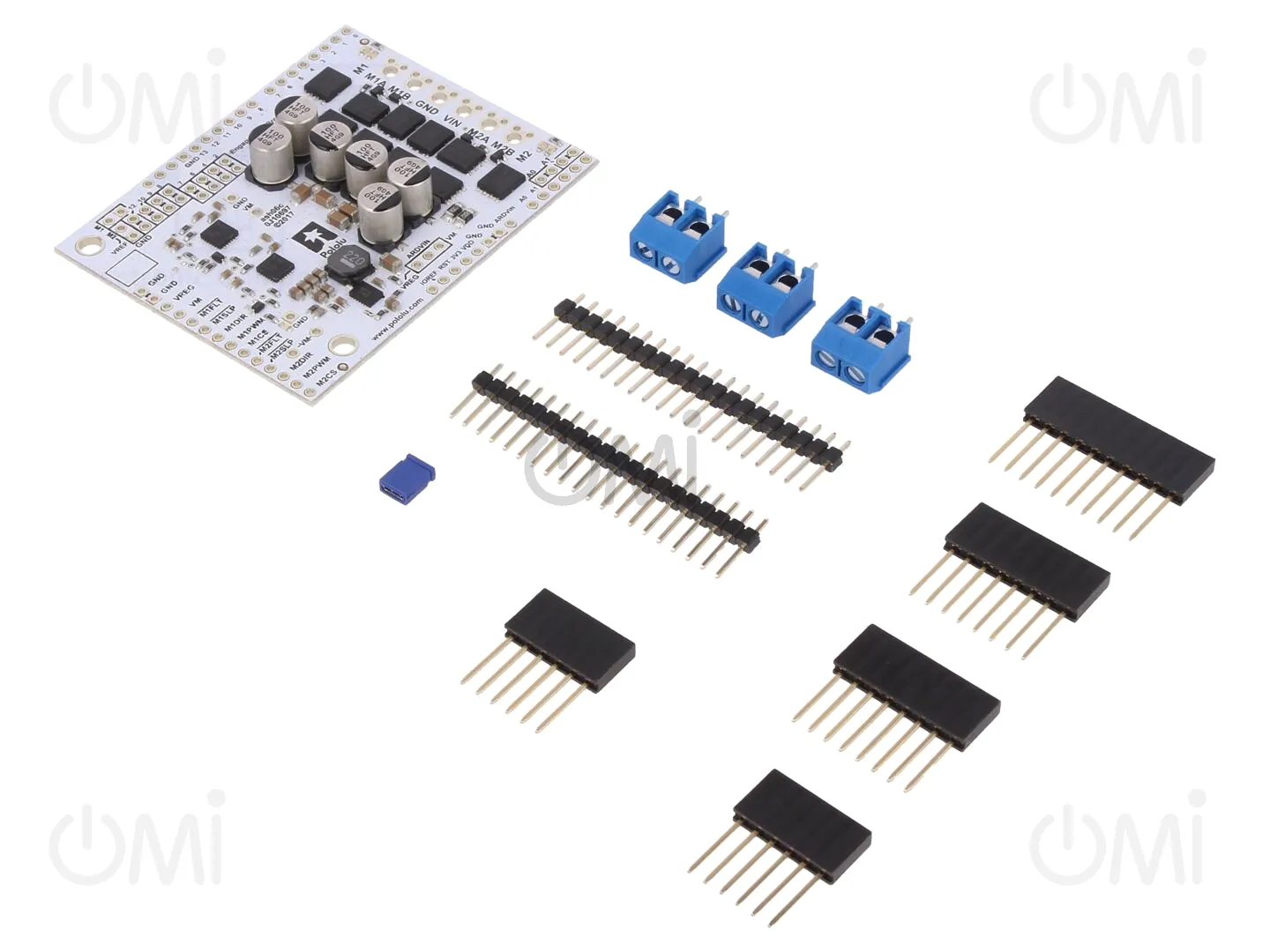

DUAL G2 HP MOTOR DRIVER 24V18 ARD POLOLU

Details

DUAL G2 HP MOTOR DRIVER 24V18 ARD
  • DUAL G2 HP MOTOR DRIVER 24V18 ARD

Manufacturer product page POLOLU

DC-motor driver; DUAL G2; 100kHz; analog,PWM,TTL; Uin log: 1.8÷5V

Manufacturer code: DUAL G2 HP MOTOR DRIVER 24V18 ARD

OMI code: 366366

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

2 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 181.3
3+ 174.98

Price details
DUAL G2 HP MOTOR DRIVER 24V18 ARD

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 181.3
3+ 174.98

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
POLOLU
Kit contents
module, connectors
Manufacturer series
DUAL G2
Application
Arduino
Maximum current
50A
Interface
PWM, analog, TTL
Number of channels
2
Type of module
DC-motor driver
Additional functions
LED indicators, current sensor, integrated switching step-down regulator 7.5V or 5V (1A), short-circuit protection, under voltage protection
Board dimensions
65x51mm
Kind of module
shield
Max. frequency
100kHz
Continuous output current per channel
18A
Motor input voltage
6.5...40V
Logic input voltage
1.8...5V
Information
product is not a working device, but only component
Gross weight 32.08 g

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.
